0.6/1KV XLPE INSULATED POWER CABLE

Application

LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.

Standard

IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc

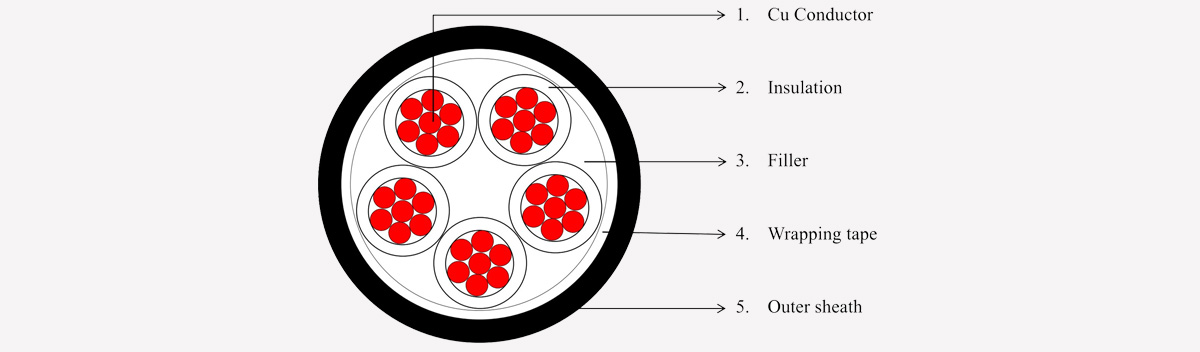

Construction

Conductor: Cu/Al (Solid/Stranded)

Insulation: XLPE/PVC/PE/LSHF

Inner sheath (applicable if there is armor layer): PVC/PE

Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape

Outer sheath : PVC/PE/LSHF

Features

Single(1) core, XLPE Insulated Power Cable
Size	Cable dia.			Cable weight
	None-	Steel tape armored	Steel wire armored	None-		Steel tape armored		Steel wire armored
	armored			armored		Steel tape armored		Steel wire armored
				CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	5.8	10.6	11.4	47	37	147	137	158	148
2.5	6.3	11.1	11.9	60	44	166	150	179	163
4	6.8	11.6	12.4	77	52	189	165	202	177
6	7.4	12.2	13	99	63	220	183	233	197
10	8.3	13.1	13.9	142	81	274	213	290	228
16	9.3	14.1	14.9	204	106	348	251	365	267
25	10.7	15.5	16.3	296	145	459	307	477	326
35	11.7	16.5	17.8	389	179	564	355	610	401
50	13.1	17.9	19.2	525	231	719	425	768	474
70	15	19.8	21.1	717	305	935	522	988	575
95	16.9	21.5	23.5	966	397	1198	629	1303	734
120	18.5	23.1	25.1	1201	483	1453	735	1567	848
150	20.5	24.9	26.9	1479	593	1743	858	1870	985
185	22.8	27.2	29.2	1834	726	2126	1018	2264	1156
240	25.6	30	32	2381	927	2706	1252	2860	1406
300	28.2	32.4	35.4	2963	1139	3305	1480	3566	1742
400	31.6	36.4	39.4	3793	1442	4226	1875	4527	2176
500	35.2	40	43	4801	1806	5281	2285	5611	2616
630	39.6	44.2	48.2	6174	2306	6689	2821	7191	3323

Two(2) core, XLPE Insulated Power Cable
Size	Cable dia.			Cable weight
	None-	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	10.1	12.9	14.5	115	96	237	218	331	312
2.5	11	13.8	15.4	145	114	278	246	383	352
4	12	14.8	16.4	185	135	329	280	440	391
6	13.1	15.9	18.4	236	162	393	319	632	558
10	14.9	17.7	20.2	333	210	512	389	780	657
16	17	19.8	22.3	471	275	675	479	980	784
25	19.8	22.6	25.8	681	376	918	613	1423	1118
35	21.8	24.6	27.8	885	463	1147	725	1688	1266
50	20	22.8	26.2	1099	495	1338	735	1854	1250
70	23	26	30.2	1501	656	1788	943	2578	1732
95	25.8	29	33.2	1996	848	2333	1186	3211	2064
120	28.4	33	36	2495	1042	3176	1723	3825	2372
150	32.5	37.1	41.1	3126	1315	3900	2089	4973	3162
185	34.9	39.9	44.1	3810	1571	4683	2444	5856	3618
240	39	44	48	4899	1993	5867	2961	7167	4261
300	42.8	48.2	52.2	6080	2438	7190	3548	8593	4952

Three (3) core, XLPE Insulated Power Cable
Size	Cable dia.			Cable weight
	None-armored	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	None-armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	10.6	13.4	15	137	109	264	236	364	336
2.5	11.5	14.3	15.9	176	129	314	268	425	378
4	12.6	15.4	17	230	156	381	308	501	427
6	13.9	16.7	19.2	302	191	469	358	723	612
10	15.8	18.6	21.1	436	251	625	441	908	723
16	18.1	20.9	23.4	629	335	846	552	1175	880
25	21.1	23.9	27.1	923	465	1175	718	1705	1248
35	23.2	26	29.2	1212	579	1490	857	2072	1439
50	23.6	26.4	29.8	1601	696	1884	978	2493	1588
70	27.5	30.9	35.1	2211	942	2586	1317	3530	2261
95	30.5	35.3	38.1	2921	1200	3670	1948	4367	2646
120	34.1	38.9	41.7	3675	1495	4507	2328	5279	3100
150	38.4	43.4	47.4	4592	1876	5551	2835	6810	4094
185	42.7	47.9	51.9	5663	2305	6748	3390	8146	4788
240	47.5	52.9	57.1	7270	2911	8503	4144	10094	5735
300	52.6	58	62	9053	3590	10411	4949	12146	6683

Four (4) core, XLPE Insulated Power Cable
Size	Cable dia.			Cable weight
	None-armored	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	None-armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	10.6	13.4	15	137	109	264	236	364	336
2.5	11.5	14.3	15.9	176	129	314	268	425	378
4	12.6	15.4	17	230	156	381	308	501	427
6	13.9	16.7	19.2	302	191	469	358	723	612
10	15.8	18.6	21.1	436	251	625	441	908	723
16	18.1	20.9	23.4	629	335	846	552	1175	880
25	21.1	23.9	27.1	923	465	1175	718	1705	1248
35	23.2	26	29.2	1212	579	1490	857	2072	1439
50	23.6	26.4	29.8	1601	696	1884	978	2493	1588
70	27.5	30.9	35.1	2211	942	2586	1317	3530	2261
95	30.5	35.3	38.1	2921	1200	3670	1948	4367	2646
120	34.1	38.9	41.7	3675	1495	4507	2328	5279	3100
150	38.4	43.4	47.4	4592	1876	5551	2835	6810	4094
185	42.7	47.9	51.9	5663	2305	6748	3390	8146	4788
240	47.5	52.9	57.1	7270	2911	8503	4144	10094	5735
300	52.6	58	62	9053	3590	10411	4949	12146	6683

Four (3+1) core, XLPE Insulated Power Cable
Size		Cable dia.			Cable weight
Size		None-	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
Phase	Earth	armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2		mm			kg/km
2.5	1.5	16.6	15	12.2	462	406	348	292	201	145
4	2.5	18.7	16.2	13.4	674	585	427	338	266	177
6	4	20	17.5	14.7	797	661	527	392	351	216
10	6	22	19.5	16.7	1013	791	706	484	505	284
16	10	25.1	21.9	19.1	1441	1085	965	609	736	380
25	16	28.3	25.1	22.3	1909	1353	1354	798	1087	531
35	16	30.1	26.9	24.1	2269	1537	1659	928	1371	639
50	25	25.6	28.6	32	1864	806	2184	1126	2833	1775
70	35	29.8	33.2	37.4	2570	1090	2975	1496	3983	2504
95	50	34.1	38.7	41.7	3471	1449	4286	2263	5076	3053
120	70	37.4	42	46	4395	1793	5285	2683	6521	3919
150	70	41.8	47	51	5320	2181	6384	3245	7751	4612
185	95	46.7	51.7	55.7	6647	2715	7805	3873	9343	5412
240	120	52.4	57.8	61.8	8530	3445	9886	4801	11619	6533
300	150	57.6	63	67	10595	4226	12079	5710	13940	7571

Five(5) core, XLPE Insulated Power Cable
Size	Cable dia.			Cable weight
	None-	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	12.2	15	16.6	190	143	337	290	451	404
2.5	13.4	16.2	18.7	252	174	413	335	660	582
4	14.8	17.6	20.1	338	215	515	393	784	661
6	16.3	19.1	21.6	450	265	645	461	945	760
10	18.8	21.6	24.8	667	359	892	585	1370	1063
16	21.6	24.4	27.6	977	486	1236	745	1779	1287
25	25.3	28.1	31.5	1450	688	1753	991	2402	1640
35	28	31	34.4	1924	869	2273	1218	2990	1935
50	27.1	30.3	34.7	2562	1053	2916	1407	3854	2344
70	31.3	36.1	38.9	3528	1415	4294	2180	5009	2895
95	36.5	41.5	45.5	4745	1876	5657	2789	6866	3997
120	40.7	45.9	49.9	5968	2336	7002	3370	8352	4719
150	45.5	50.5	54.5	7440	2913	8566	4039	10048	5521
185	51.2	56.6	60.6	9226	3629	10548	4952	12225	6628
240	57.4	62.8	67	11872	4608	13349	6084	15248	7983
300	63.1	69.1	74.4	14758	5653	16480	7376	19358	10253

Five(4+1) core, XLPE Insulated Power Cable
Size		Cable dia.			Cable weight
Size		None-	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
Phase	Earth	armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2		mm			kg/km
2.5	1.5	18.5	16	13.2	637	565	399	327	240	168
4	2.5	19.8	17.3	14.5	755	641	494	380	320	206
6	4	21.3	18.8	16	910	738	619	447	427	255
10	6	24.3	21.1	18.3	1307	1024	843	560	623	340
16	10	27	23.8	21	1695	1241	1165	711	914	459
25	16	30.8	27.4	24.6	2287	1579	1650	942	1356	648
35	16	32.9	29.5	26.7	2725	1783	2051	1109	1731	789
50	25	28.3	31.7	35.9	2361	1002	2747	1387	3712	2352
70	35	33.1	37.7	40.7	3272	1370	4063	2161	4817	2915
95	50	38.1	42.7	46.7	4390	1799	5296	2705	6561	3970
120	70	42.1	47.1	51.1	5575	2253	6623	3301	7988	4667
150	70	45.9	50.9	54.9	6745	2707	7883	3846	9394	5357
185	95	51.8	57.2	61.2	8440	3389	9780	4730	11483	6432
240	120	57.7	63.1	67.1	10816	4280	12303	5766	14162	7626
300	150	63.5	68.9	74.4	13449	5273	15079	6903	17982	9806

Five(3+2) core, XLPE Insulated Power Cable
Size		Cable dia.			Cable weight
Size		None-armored	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
Phase	Earth	None-armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2		mm			kg/km
2.5	1.5	18.2	15.7	12.9	622	557	382	316	227	161
4	2.5	19.5	17	14.2	735	631	473	368	303	198
6	4	21	18.5	15.7	876	716	593	433	405	245
10	6	23.1	20.6	17.8	1113	855	793	534	579	321
16	10	26.5	23.3	20.5	1615	1197	1098	681	853	435
25	16	29.8	26.6	23.8	2139	1485	1544	890	1259	606
35	16	31.7	28.3	25.5	2496	1667	1848	1019	1543	713
50	25	28.3	31.1	35.5	2154	943	2491	1281	3447	2237
70	35	32.9	36.3	40.5	2962	1272	3408	1718	4504	2814
95	50	38.1	42.7	45.7	4009	1696	4915	2602	5774	3461
120	70	41.9	46.9	51.1	5127	2116	6172	3161	7559	4548
150	70	45.7	50.7	54.9	6046	2498	7182	3634	8716	5168
185	95	51.6	56.6	60.6	7657	3153	8933	4429	10600	6095
240	120	57.1	62.5	66.5	9758	3951	11232	5424	13096	7289
300	150	62.7	68.1	72.1	12099	4852	13711	6464	15737	8490
