600V Quadruplex service drop cable

600V Quadruplex service drop cable

Application

The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃

Standard

IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474

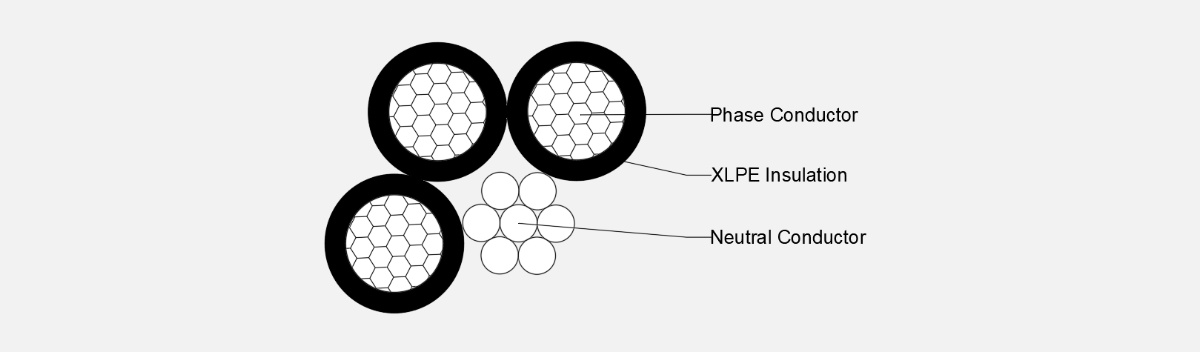

Construction

Al/Al Alloy/Cu Conductor, XLPE/PE/PVC Insulation

Features

0.6/1KV-Bundle   Assembled Insulated Cables-NF C 33-209
Core No.x Conductor sizeApprox.   Cable Dia.Approx.   Cable WeightCore   No.x Conductor sizeApprox.   Cable Dia.Approx.   Cable Weight
mm2mmkg/kmmm2mmkg/km
2x16151354x1618270
2x25182004x2521400
3x25+54.6+1625.465663x25+54.6+2x1627.33632
3x35+54.6+1627.736773x35+54.6+2x1629.43744
3x50+54.6+1629.518143x50+54.6+2x1631.08880
3x70+54.6+1632.9110253x70+54.6+2x1634.231090
3x70+54.6+2533.7210583x70+54.6+2x2535.731158
3x70+70+1633.710803x70+70+2x1634.951145
3x70+70+2534.5111133x70+70+2x2536.451213
3x95+54.6+1635.5112523x95+54.6+2x1636.631319
3x95+54.6+2536.3212863x95+54.6+2x2538.131387
3x95+95+1637.3713873x95+95+2x1638.351453
3x95+95+2538.1814213x95+95+2x2539.851522
3x120+54.6+1637.7714783x120+54.6+2x1638.731544
3x120+54.6+2538.5815123x120+54.6+2x2540.231611
3x120+95+1639.6416123x120+95+2x1640.451679
3x120+95+2540.4516463x120+95+2x2541.951746
3x150+54.6+1641.0117793x150+54.6+2x1641.731845
3x150+54.6+2541.8218133x150+54.6+2x2543.231913
3x150+95+1642.8819133x150+95+2x1643.451980
3x150+95+2543.6919483x150+95+2x2544.952048
