0.6/1KV ATA ARMORED POWER CABLE
Application
The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.
Standard
IEC60502，SANS 1507，BS 5467，AS-NZS 5000.1，NF C 32-322， NF C33-210，CSA C22.2, ICEA S-95-658
Construction

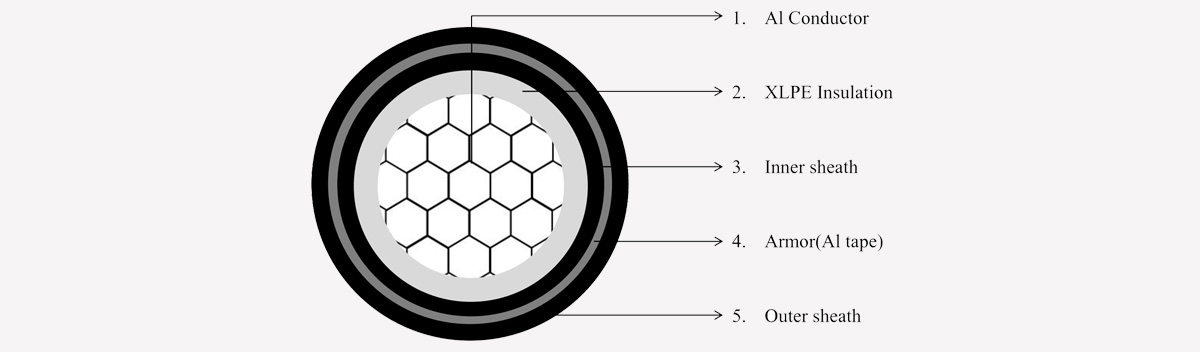

Copper or Aluminum Conductor/PVC or XLPE Insulation/Armored layer/Outer Sheath Power Cables
Features
| 0.6/1KV ATA ARMORED POWER CABLE | ||||||
| Cable Size | Cable dia. | Cable weight | ||||
| None-armored | Aluminum tape armored | None-armored | Aluminum tape armored | |||
| CU | AL | CU | AL | |||
| mm2 | mm | kg/km | ||||
| 1.5 | 6 | 10.8 | 52 | 43 | 155 | 145 |
| 2.5 | 6.5 | 11.3 | 66 | 50 | 175 | 159 |
| 4 | 7.4 | 12.2 | 91 | 66 | 211 | 187 |
| 6 | 8 | 12.8 | 115 | 78 | 243 | 206 |
| 10 | 8.9 | 13.7 | 160 | 99 | 300 | 238 |
| 16 | 9.9 | 14.7 | 224 | 126 | 377 | 279 |
| 25 | 11.3 | 16.1 | 322 | 171 | 493 | 341 |
| 35 | 12.3 | 17.1 | 418 | 209 | 601 | 392 |
| 50 | 13.9 | 18.7 | 567 | 273 | 771 | 477 |
| 70 | 15.6 | 20.4 | 760 | 347 | 985 | 573 |
| 95 | 18 | 22.6 | 1031 | 463 | 1277 | 708 |
| 120 | 19.4 | 24 | 1267 | 548 | 1530 | 811 |
| 150 | 21.4 | 25.8 | 1557 | 671 | 1832 | 947 |
| 185 | 23.8 | 28 | 1938 | 830 | 2229 | 1121 |
| 240 | 26.8 | 31 | 2515 | 1061 | 2840 | 1385 |
| 300 | 29.6 | 33.8 | 3130 | 1305 | 3486 | 1662 |
| 400 | 33.1 | 37.7 | 3988 | 1637 | 4423 | 2072 |
| 500 | 36.7 | 41.3 | 5030 | 2035 | 5509 | 2514 |
| 630 | 40.5 | 45.1 | 6385 | 2517 | 6912 | 3044 |
