AWA aluminum wire armour. Non-magnetic prevents induction heating. Safer for single-core AC systems.
Application
0.6/1kV AWA armored power cables with aluminum wire armor. The non-magnetic AWA armor is specifically designed for single-core AC installations to prevent eddy current losses while offering strong mechanical protection. Suitable for direct burial and cable ducting in industrial applications.
Core Strengths
Single-core installers, this is key: AWA's aluminum wire armor is non-magnetic, preventing induction heating that SWA can cause. Safer and more efficient for AC systems. Get a quote.
Standard
IEC60502，SANS 1507，BS 5467，AS-NZS 5000.1，NF C 32-322， NF C33-210，CSA C22.2, ICEA S-95-658

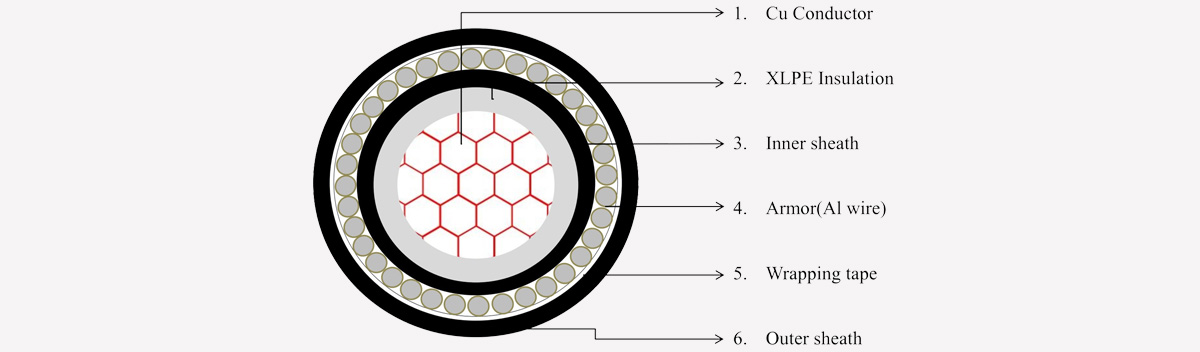

Construction
☉〉 Conductor: Copper (Cu), stranded
☉〉 Insulation: XLPE (cross-linked polyethylene)
☉〉 Inner sheath: PVC or PE
☉〉 Armor: Aluminum wire (AWA)
☉〉 Wrapping tape: Binding tape over armor
☉〉 Outer sheath: PVC (type ST2)
Features
☉〉 0.6/1kV rated voltage – for fixed power distribution
☉〉 Copper conductor – high conductivity, low resistance
☉〉 XLPE insulation – 90°C continuous, 250°C short-circuit
☉〉 Aluminum wire armor – lightweight, flexible, corrosion-resistant
☉〉 PVC outer sheath – moisture, chemical & UV resistant
☉〉 Flame retardant – complies with IEC 60332-1
☉〉 Suitable for direct burial, indoor/outdoor, cable trays
☉〉 100% factory tested to IEC 60502-1
Product Data Sheet
| 0.6/1KV AWA ARMORED POWER CABLE | ||||||
| Cable Size | Cable dia. | Cable weight | ||||
| None-armored | Aluminum wire armored | None-armored | Aluminum wire armored | |||
| CU | AL | CU | AL | |||
| mm2 | mm | kg/km | ||||
| 1.5 | 6 | 11.6 | 52 | 43 | 167 | 157 |
| 2.5 | 6.5 | 12.1 | 66 | 50 | 189 | 173 |
| 4 | 7.4 | 13 | 91 | 66 | 225 | 200 |
| 6 | 8 | 13.6 | 115 | 78 | 258 | 221 |
| 10 | 8.9 | 14.5 | 160 | 99 | 316 | 255 |
| 16 | 9.9 | 15.5 | 224 | 126 | 395 | 297 |
| 25 | 11.3 | 16.9 | 322 | 171 | 512 | 361 |
| 35 | 12.3 | 18.4 | 418 | 209 | 647 | 438 |
| 50 | 13.9 | 20 | 567 | 273 | 822 | 528 |
| 70 | 15.6 | 21.7 | 760 | 347 | 1041 | 629 |
| 95 | 18 | 24.6 | 1031 | 463 | 1387 | 818 |
| 120 | 19.4 | 26 | 1267 | 548 | 1650 | 931 |
| 150 | 21.4 | 27.8 | 1557 | 671 | 1960 | 1074 |
| 185 | 23.8 | 30.2 | 1938 | 830 | 2381 | 1273 |
| 240 | 26.8 | 33 | 2515 | 1061 | 2998 | 1544 |
| 300 | 29.6 | 36.8 | 3130 | 1305 | 3760 | 1935 |
| 400 | 33.1 | 40.7 | 3988 | 1637 | 4734 | 2383 |
| 500 | 36.7 | 44.3 | 5030 | 2035 | 5849 | 2854 |
| 630 | 40.5 | 49.1 | 6385 | 2517 | 7434 | 3566 |
