0.6/1KV PVC INSULATED POWER CABLE

Application

LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.

Standard

IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc

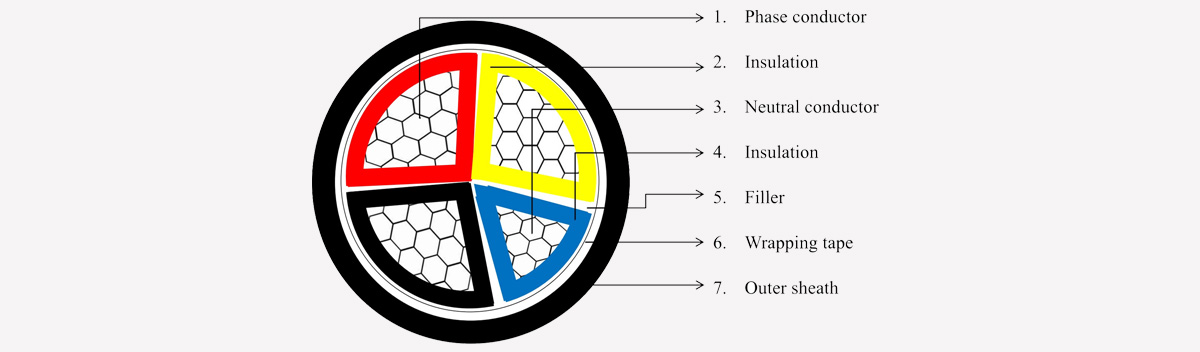

Construction

Conductor: Cu/Al (Solid/Stranded)

Insulation: XLPE/PVC/PE/LSHF

Inner sheath (applicable if there is armor layer): PVC/PE

Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape

Outer sheath : PVC/PE/LSHF

Features

Single(1) core, PVC Insulated Power Cable
Cable Size	Cable dia.			Cable weight
	None-armored	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	None-armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	6	10.8	11.6	52	43	155	145	167	157
2.5	6.5	11.3	12.1	66	50	175	159	189	173
4	7.4	12.2	13	91	66	211	187	225	200
6	8	12.8	13.6	115	78	243	206	258	221
10	8.9	13.7	14.5	160	99	300	238	316	255
16	9.9	14.7	15.5	224	126	377	279	395	297
25	11.3	16.1	16.9	322	171	493	341	512	361
35	12.3	17.1	18.4	418	209	601	392	647	438
50	13.9	18.7	20	567	273	771	477	822	528
70	15.6	20.4	21.7	760	347	985	573	1041	629
95	18	22.6	24.6	1031	463	1277	708	1387	818
120	19.4	24	26	1267	548	1530	811	1650	931
150	21.4	25.8	27.8	1557	671	1832	947	1960	1074
185	23.8	28	30.2	1938	830	2229	1121	2381	1273
240	26.8	31	33	2515	1061	2840	1385	2998	1544
300	29.6	33.8	36.8	3130	1305	3486	1662	3760	1935
400	33.1	37.7	40.7	3988	1637	4423	2072	4734	2383
500	36.7	41.3	44.3	5030	2035	5509	2514	5849	2854
630	40.5	45.1	49.1	6385	2517	6912	3044	7434	3566

Two(2) core, PVC Insulated Power Cable
Size	Cable dia.			Cable weight
	None-	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	10.5	13.3	14.9	128	109	255	236	355	336
2.5	11.4	14.2	15.8	160	128	297	266	404	372
4	13.2	16	18.5	219	170	378	329	616	567
6	14.4	17.2	19.7	275	201	448	374	709	636
10	16.2	19	21.5	378	255	573	450	863	740
16	18.3	21.1	23.6	523	327	743	546	1070	873
25	21	23.8	27	744	439	996	691	1526	1221
35	23	25.8	29	955	533	1231	809	1814	1392
50	21.7	24.5	27.9	1203	599	1463	859	2018	1414
70	24.5	27.3	31.7	1618	773	1911	1065	2732	1887
95	27.9	32.5	35.5	2161	1014	2832	1685	3485	2337
120	30.1	34.7	37.7	2660	1207	3381	1928	4080	2627
150	34.2	39	43	3321	1510	4153	2342	5281	3470
185	36.8	41.8	45.8	4055	1816	4972	2734	6181	3942
240	41.2	46.2	50.2	5219	2313	6239	3333	7589	4683
300	45.3	50.9	54.9	6459	2817	7657	4015	9143	5501

Three (3) core, PVC Insulated Power Cable
Size	Cable dia.			Cable weight
	None-	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	11	13.8	15.4	154	125	286	258	391	363
2.5	12	14.8	16.4	197	150	341	294	452	405
4	14	16.8	19.3	276	202	444	371	698	624
6	15.2	18	20.5	351	241	534	423	810	699
10	17.2	20	22.5	495	310	701	517	1015	831
16	19.4	22.2	25.4	696	401	928	634	1419	1124
25	22.4	25.2	28.4	1008	551	1276	819	1830	1373
35	24.6	27.4	30.8	1309	676	1604	971	2240	1607
50	25.4	28.4	32.6	1746	841	2063	1158	2916	2010
70	29	32.2	36.4	2373	1104	2752	1483	3714	2445
95	32.9	37.5	40.5	3161	1440	3947	2226	4705	2984
120	36.1	40.7	44.7	3920	1740	4779	2600	5955	3776
150	40.2	45.4	49.4	4865	2149	5889	3173	7202	4485
185	44.7	49.7	53.7	6009	2651	7117	3759	8567	5209
240	49.9	55.3	59.3	7714	3355	9006	4647	10658	6299
300	55.5	60.9	64.9	9612	4149	11042	5579	12856	7393

Four (4) core, PVC Insulated Power Cable
Size	Cable dia.			Cable weight
	None-	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	11.4	14.2	15.8	176	139	313	276	420	383
2.5	12.3	15.1	17.6	224	164	372	312	596	536
4	14.5	17.3	19.8	325	228	499	402	759	663
6	15.7	18.5	21	417	272	606	461	889	744
1.5	11.8	14.6	16.2	184	146	326	288	438	401
2.5	12.9	15.7	18.2	238	176	394	331	634	571
4	15.2	18	20.5	340	242	523	425	799	701
6	16.6	19.4	21.9	439	291	638	490	936	788
10	18.7	21.5	24.7	623	376	847	601	1309	1063
16	21.3	24.1	27.3	887	494	1142	749	1670	1277
25	24.6	27.4	30.8	1293	683	1587	978	2224	1615
35	27	30	33.4	1686	842	2023	1179	2714	1870
50	27.6	31	35.2	2260	1053	2636	1429	3580	2372
70	31.5	36.1	39.1	3077	1386	3831	2140	4559	2868
95	36.6	41.4	45.4	4139	1844	5029	2734	6239	3944
120	39.5	44.7	48.7	5112	2206	6118	3212	7442	4536
150	44.1	49.1	53.1	6364	2742	7458	3836	8917	5295
185	48.9	54.3	58.3	7849	3372	9116	4639	10704	6226
240	55.1	60.5	64.5	10104	4293	11524	5712	13305	7493
300	60.8	66.2	71.7	12572	5289	14133	6849	16886	9603

Four (3+1) core, PVC Insulated Power Cable
Size		Cable dia.			Cable weight
Size		None-	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
Phase	Earth	armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2		mm			kg/km
2.5	1.5	12.7	15.5	17.1	226	169	378	322	498	441
4	2.5	14.6	17.4	19.9	314	225	489	400	759	670
6	4	16.2	19	21.5	413	278	608	472	898	762
10	6	18.2	21	24.2	577	355	795	573	1260	1039
16	10	20.6	23.4	26.6	819	463	1066	710	1582	1226
25	16	23.8	26.6	29.8	1191	636	1476	921	2071	1516
35	16	25.6	28.4	31.8	1485	754	1791	1060	2439	1708
50	25	27.6	30.4	34.8	2042	984	2371	1314	3305	2248
70	35	31.3	34.7	38.9	2754	1274	3179	1699	4232	2753
95	50	36.6	41.2	44.2	3757	1734	4628	2605	5460	3437
120	70	39.5	44.5	48.5	4688	2085	5674	3072	6995	4393
150	70	43.9	48.9	52.9	5659	2520	6751	3611	8208	5069
185	95	48.7	53.7	57.7	7051	3119	8256	4324	9848	5916
240	120	54.9	60.3	64.3	9042	3957	10459	5374	12238	7152
300	150	60.6	66	70	11240	4872	12798	6430	14777	8409

Five(5) core, PVC Insulated Power Cable
Size	Cable dia.			Cable weight
	None-	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	12.7	15.5	18	216	169	369	322	600	553
2.5	14	16.8	19.3	284	206	452	374	706	628
4	16.5	19.3	21.8	408	285	606	483	904	781
6	18	20.8	23.3	528	344	744	559	1073	888
10	20.4	23.2	26.4	756	449	1001	693	1518	1210
16	23.3	26.1	29.3	1084	593	1363	872	1944	1453
25	27	29.8	33.2	1587	825	1910	1148	2599	1837
35	29.9	32.9	37.1	2090	1035	2462	1407	3471	2417
50	28.9	33.7	36.5	2777	1268	3487	1978	4134	2625
70	32.8	37.4	41.4	3763	1649	4544	2430	5612	3498
95	39	44	48	5098	2229	6069	3201	7363	4495
120	42.7	47.7	51.7	6335	2703	7395	3762	8796	5164
150	47.6	53	57	7885	3358	9119	4591	10687	6159
185	53.3	58.7	62.7	9764	4167	11138	5541	12867	7270
240	59.9	65.3	70.8	12559	5294	14096	6832	16864	9599
300	66	72	77.3	15606	6501	17404	8300	20369	11264

Five(4+1) core, PVC Insulated Power Cable
Size		Cable dia.			Cable weight
Size		None-	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
Phase	Earth	armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2		mm			kg/km
2.5	1.5	13.7	16.5	19	270	198	434	362	680	608
4	2.5	16	18.8	21.3	383	269	575	461	866	752
6	4	17.7	20.5	23	504	332	716	544	1037	865
10	6	20	22.8	26	712	429	952	669	1455	1172
16	10	22.7	25.5	28.7	1017	563	1289	835	1858	1403
25	16	26.3	29.1	32.5	1487	779	1802	1094	2478	1770
35	16	28.4	31.4	35.6	1875	933	2229	1287	3193	2251
50	25	30.8	34.2	38.4	2602	1242	3020	1660	4051	2691
70	35	35	39.6	42.6	3510	1608	4346	2444	5147	3245
95	50	41.3	46.3	50.5	4758	2167	5788	3198	7185	4594
120	70	44.6	49.6	53.6	5960	2639	7067	3745	8518	5196
150	70	48.4	53.4	57.4	7194	3156	8391	4354	9988	5950
185	95	54.8	60.2	64.2	8982	3932	10397	5347	12177	7127
240	120	60.8	66.2	70.2	11491	4955	13054	6518	15030	8494
300	150	67.1	72.9	78.4	14322	6146	16120	7944	19223	11047

Five(3+2) core, PVC Insulated Power Cable
Size		Cable dia.			Cable weight
Size		None-	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
Phase	Earth	armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2		mm			kg/km
2.5	1.5	13.5	16.3	18.8	257	191	419	354	666	600
4	2.5	15.5	18.3	20.8	358	253	544	439	828	723
6	4	17.4	20.2	22.7	480	320	689	529	1001	841
10	6	19.5	22.3	25.5	666	407	900	641	1390	1131
16	10	22.1	24.9	28.1	951	533	1216	798	1772	1354
25	16	25.5	28.3	31.7	1384	730	1689	1036	2338	1684
35	16	27.1	30.1	33.3	1675	845	2013	1183	2687	1858
50	25	30.6	34	38.2	2363	1153	2780	1569	3809	2598
70	35	35	39.6	42.6	3198	1507	4033	2343	4835	3144
95	50	41.1	45.9	49.9	4335	2022	5333	3020	6672	4359
120	70	44.4	49.4	53.4	5484	2474	6588	3578	8038	5027
150	70	48.2	53.2	57.2	6453	2906	7648	4101	9243	5696
185	95	54.6	60	64	8162	3658	9575	5070	11353	6849
240	120	60.2	65.6	69.6	10371	4564	11922	6114	13862	8054
300	150	66.3	71.7	77.2	12886	5638	14587	7339	17639	10391
