2x16mm² bundled cable for single-phase service drops. Lightweight, self-supporting. For rural electrification, street lighting.
Application
IEC 60502 / BS 7870-5 2-core bundled assembled ABC cable (0.6/1kV) with 2x16mm² phase conductors for single-phase overhead secondary distribution and service drop applications: rural electrification, street lighting, residential service entrance, and temporary construction site power. XLPE insulated, self-supporting. Compliant with ICEA S-76-474.
Core Strengths
Single-phase rural lines risk unsafe splices and weather exposure. Our standard 2x16mm² bundled cable delivers reliable capacity for last-mile connections. Cost-effective, self-supporting design reduces installation poles and hardware. CE/ISO certified. Factory direct.
Standard
IEC227, BS6004, ANSI

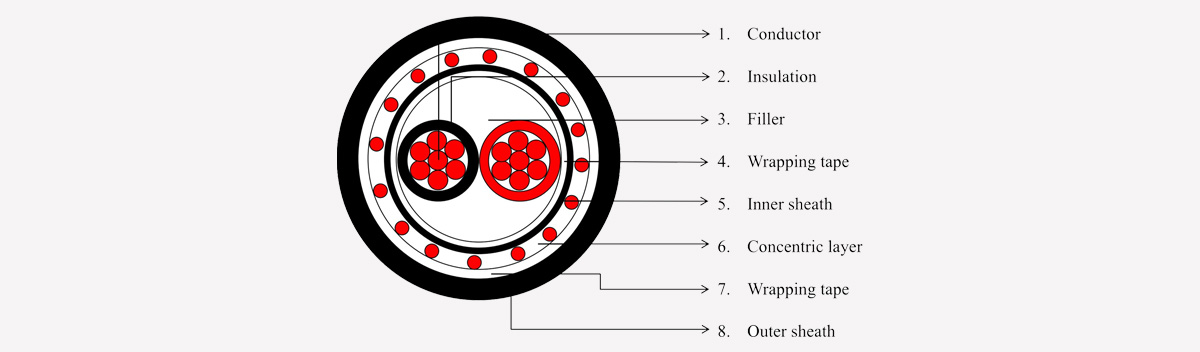

Construction
☉〉 Conductor: Aluminum, 2 cores × 16mm²
☉〉 Insulation: XLPE
☉〉 Filler: Internal filler for core roundness
☉〉 Wrapping tape: Binding over insulated cores
☉〉 Inner sheath: Extruded layer
☉〉 Concentric layer: Neutral or screening layer
☉〉 Outer wrapping tape & outer sheath: Additional protection
Features
☉〉 Rated voltage: 0.6/1kV
☉〉 XLPE insulation ensures high current rating and 90°C operation
☉〉 Concentric layer provides neutral continuity or fault path
☉〉 Multi-layer construction (inner/outer sheath) enhances mechanical and weather resistance
☉〉 Suitable for direct aerial bundling or underground service
Product Data Sheet
| 0.6/1KV bundled assembled cable 2x16mm2 | |||||||
| Core No. | Conductor Size | Cu Conductor | Insulation Nominal Thickness | Outer Sheath Thickness | Approx. Overall Dia. | Approx. Weight | |
| No.s | mm2 | No.s | mm | mm | mm | mm | kg/km |
| 2 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 9.4 | 89 |
| 2 | 2.5 | 7 | 2.01 | 0.8 | 1.2 | 10.7 | 121 |
| 2 | 4 | 7 | 2.55 | 0.8 | 1.2 | 11.8 | 158 |
| 2 | 6 | 7 | 3.12 | 0.8 | 1.2 | 12.9 | 205 |
| 2 | 10 | 7 | 4.05 | 1 | 1.4 | 16 | 327 |
| 2 | 16 | 7 | 5.13 | 1 | 1.4 | 18.2 | 460 |
| 2 | 25 | 7 | 6.39 | 1 | 1.4 | 20.7 | 648 |
| 3 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 9.9 | 113 |
| 3 | 2.5 | 7 | 2.01 | 0.8 | 1.2 | 11.3 | 157 |
| 3 | 4 | 7 | 2.55 | 0.8 | 1.2 | 12.5 | 211 |
| 3 | 6 | 7 | 3.12 | 0.8 | 1.4 | 14.1 | 290 |
| 3 | 10 | 7 | 4.05 | 1 | 1.4 | 17 | 447 |
| 3 | 16 | 7 | 5.13 | 1 | 1.4 | 19.3 | 641 |
| 3 | 25 | 7 | 6.39 | 1 | 1.6 | 22.5 | 936 |
| 4 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 10.7 | 138 |
| 4 | 2.5 | 7 | 2.01 | 0.8 | 1.2 | 12.2 | 196 |
| 4 | 4 | 7 | 2.55 | 0.8 | 1.4 | 14 | 278 |
| 4 | 6 | 7 | 3.12 | 0.8 | 1.4 | 15.3 | 367 |
| 4 | 10 | 7 | 4.05 | 1 | 1.4 | 18.6 | 572 |
| 4 | 16 | 7 | 5.13 | 1 | 1.4 | 21.2 | 827 |
| 4 | 25 | 7 | 6.39 | 1 | 1.6 | 24.7 | 1212 |
| 5 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 11.6 | 165 |
| 5 | 2.5 | 7 | 2.01 | 0.8 | 1.2 | 13.4 | 235 |
| 5 | 4 | 7 | 2.55 | 0.8 | 1.4 | 15.2 | 336 |
| 5 | 6 | 7 | 3.12 | 0.8 | 1.4 | 16.8 | 445 |
| 5 | 10 | 7 | 4.05 | 1 | 1.4 | 20.4 | 699 |
| 5 | 16 | 7 | 5.13 | 1 | 1.6 | 23.8 | 1037 |
| 5 | 25 | 7 | 6.39 | 1 | 1.6 | 27.2 | 1490 |
