Airdac concentric aerial service cable. UV-stabilized black PE sheath. CNE/SNE configurations. 0.6/1kV.
Application
SANS 1507-6 Airdac concentric aerial service cable (0.6/1kV) for single-phase house service connections. Stranded copper phase conductor, XLPE insulation, concentric arranged neutral and earth conductors, black UV-stabilized PE outer sheath. Suitable for overhead installation between utility pole and building entry. SNE type additionally suitable for underground use.
Core Strengths
Generic overhead cables degrade quickly under intense UV exposure. Our SANS 1507-6 Airdac cable uses UV-stabilized black PE sheath for extended outdoor life. Single phase only, CNE/SNE configurations. Low voltage 0.6/1kV.
Standard
IEC60502

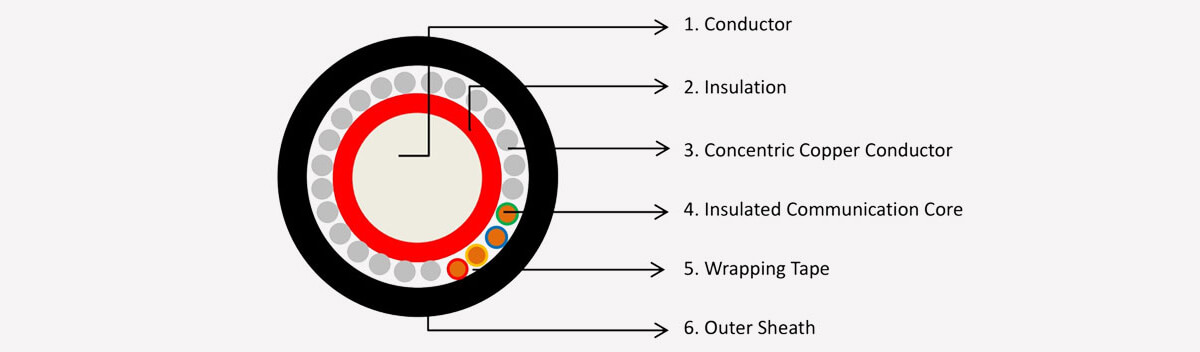

Construction
☉〉 Power conductor: Copper (or aluminum)
☉〉 Insulation: XLPE or PVC
☉〉 Concentric copper conductor: Neutral/earth layer
☉〉 Insulated communication core: For signaling or control
☉〉 Wrapping tape: Binder over assembly
☉〉 Outer sheath: PVC or LSZH
Features
☉〉 Rated voltage: 1000V
☉〉 Integrated communication core eliminates separate cabling for control/signaling
☉〉 Concentric neutral provides earth continuity and fault protection
☉〉 XLPE insulation ensures high current rating and 90°C operation
☉〉 Suitable for airdac (airport lighting or auxiliary power) applications
☉〉 Outer sheath offers mechanical and environmental protection
Product Data Sheet
| 1000V Airdac cable | |||||||||||
| Size | Conductor | Insulation thickness | Neutral | Earth | Sheath | Approx. Cable Dia. | Approx. weight | ||||
| Stranding. No. | Overall dia. | Stranding. No. | Single wire dia. | insulation | Stranding. No. | Single wire dia. | |||||
| mm2 | No.s | mm | mm | No.s | mm | mm | No.s | mm | mm | mm | mm |
| 10 | 7 | 4 | 1 | 7 | 1.33 | 0.26 | 3 | 1.78 | 1.6 | 12.8 | 320 |
| 16 | 7 | 5.1 | 1 | 7 | 1.7 | 0.26 | 3 | 2.1 | 1.6 | 14 | 450 |
