Duplex service drop for 120V temporary power and outdoor lighting. Safe, compliant, fast delivery.
Application
600V duplex service drop cable (2 insulated phase conductors + bare neutral) for single-phase 120V service: temporary construction site power, outdoor lighting, street lighting. Conductor temp: 75°C (PE) or 90°C (XLPE).
Core Strengths
Contractors using unsuitable cables face voltage drop and safety hazards on construction sites. Our duplex service drop cable is designed specifically for 120V temporary service and outdoor lighting. Safe, compliant, fast delivery.
Standard
IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474

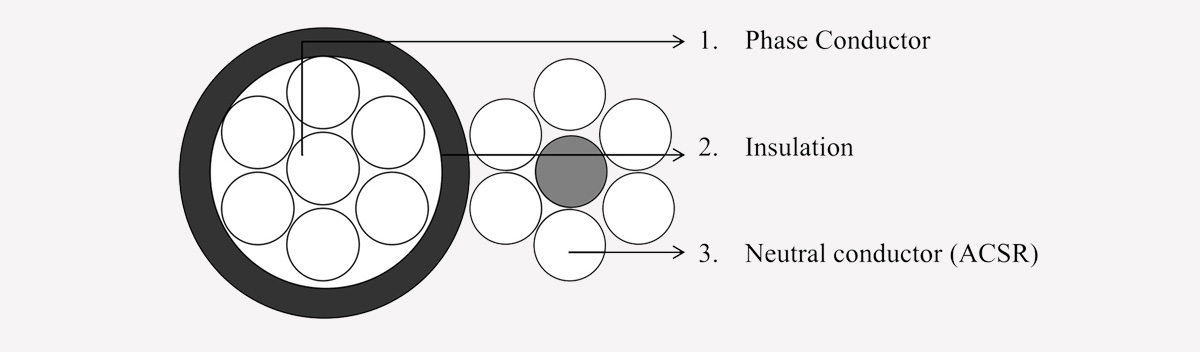

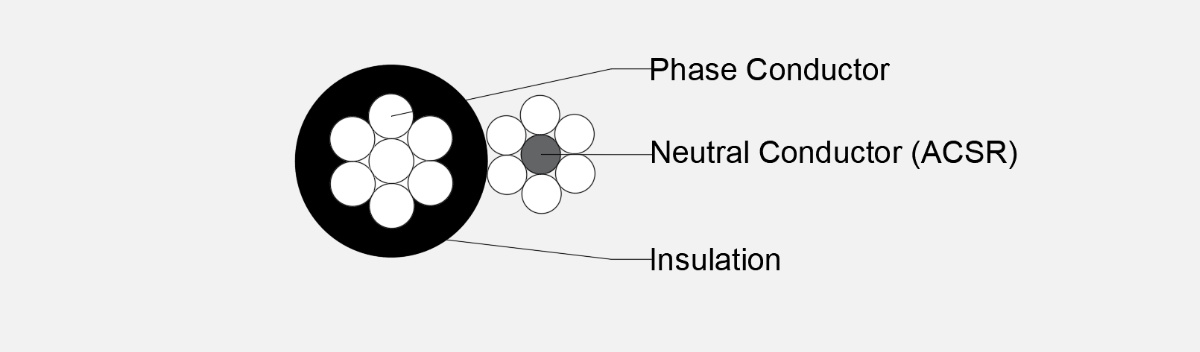

Construction
☉〉 Phase conductor: Aluminum
☉〉 Insulation: XLPE (or weather-resistant material)
☉〉 Neutral conductor: ACSR (aluminum-clad steel core, self-supporting)
☉〉 Assembly: Two insulated conductors twisted together, with neutral serving as messenger
Features
☉〉 Rated voltage: 600V
☉〉 ACSR neutral messenger enables self-supporting aerial installation
☉〉 Lightweight duplex design for easy handling and fast stringing
☉〉 Weather and UV resistant for outdoor service
☉〉 Reduces installation cost by eliminating separate messenger wires
Product Data Sheet
| 0.6/1KV-Bundle Assembled Insulated Cables-NF C 33-209 | |||||
| Core No.x Conductor size | Approx. Cable Dia. | Approx. Cable Weight | Core No.x Conductor size | Approx. Cable Dia. | Approx. Cable Weight |
| mm2 | mm | kg/km | mm2 | mm | kg/km |
| 2x16 | 15 | 135 | 4x16 | 18 | 270 |
| 2x25 | 18 | 200 | 4x25 | 21 | 400 |
| 3x25+54.6+16 | 25.46 | 566 | 3x25+54.6+2x16 | 27.33 | 632 |
| 3x35+54.6+16 | 27.73 | 677 | 3x35+54.6+2x16 | 29.43 | 744 |
| 3x50+54.6+16 | 29.51 | 814 | 3x50+54.6+2x16 | 31.08 | 880 |
| 3x70+54.6+16 | 32.91 | 1025 | 3x70+54.6+2x16 | 34.23 | 1090 |
| 3x70+54.6+25 | 33.72 | 1058 | 3x70+54.6+2x25 | 35.73 | 1158 |
| 3x70+70+16 | 33.7 | 1080 | 3x70+70+2x16 | 34.95 | 1145 |
| 3x70+70+25 | 34.51 | 1113 | 3x70+70+2x25 | 36.45 | 1213 |
| 3x95+54.6+16 | 35.51 | 1252 | 3x95+54.6+2x16 | 36.63 | 1319 |
| 3x95+54.6+25 | 36.32 | 1286 | 3x95+54.6+2x25 | 38.13 | 1387 |
| 3x95+95+16 | 37.37 | 1387 | 3x95+95+2x16 | 38.35 | 1453 |
| 3x95+95+25 | 38.18 | 1421 | 3x95+95+2x25 | 39.85 | 1522 |
| 3x120+54.6+16 | 37.77 | 1478 | 3x120+54.6+2x16 | 38.73 | 1544 |
| 3x120+54.6+25 | 38.58 | 1512 | 3x120+54.6+2x25 | 40.23 | 1611 |
| 3x120+95+16 | 39.64 | 1612 | 3x120+95+2x16 | 40.45 | 1679 |
| 3x120+95+25 | 40.45 | 1646 | 3x120+95+2x25 | 41.95 | 1746 |
| 3x150+54.6+16 | 41.01 | 1779 | 3x150+54.6+2x16 | 41.73 | 1845 |
| 3x150+54.6+25 | 41.82 | 1813 | 3x150+54.6+2x25 | 43.23 | 1913 |
| 3x150+95+16 | 42.88 | 1913 | 3x150+95+2x16 | 43.45 | 1980 |
| 3x150+95+25 | 43.69 | 1948 | 3x150+95+2x25 | 44.95 | 2048 |
