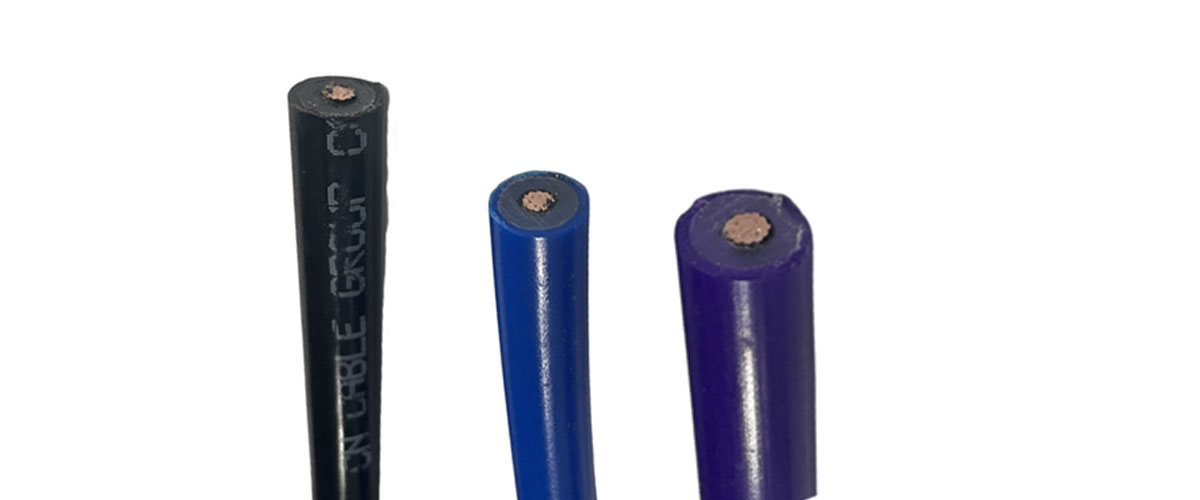

FAA L-824 Type C airport lighting cable. Copper tape shield eliminates EMI. CPE jacket resists de-icing fluids. -40°C to +90°C.
Application
FAA L-824 Type B/C airport lighting power cable (5kV) for series lighting circuits in runway, taxiway, approach and touchdown zone lighting. Meets FAA AC 150/5345-7F. EPR/XLPE insulation, CPE jacket resists de-icing fluids. Suitable for direct burial, conduit, duct, aerial. ICEA S-93-639/NEMA WC74 compliant. -40°C to +90°C. Copper tape shield for Type C prevents EMI, unshielded Type B for general. Shielded variant reduces mutual interference in extended parallel runs. Single conductor, stranded tinned copper, XLPE/EPR 90°C, CPE jacket abrasion/chemical resistant. Rated 5000V.
Core Strengths
Unshielded airport lighting cables in long parallel runs introduce mutual interference. Our FAA L-824 Type C with copper tape shield eliminates EMI. CPE jacket resists de-icing fluids, oils, abrasion. XLPE insulation rated 90°C, -40°C cold bend.
Standard
150/5345-7F , ICEA S-95-658, ICEA S-96-659 , ICEA S-93-639 , IEC 60228 , IEC60502
Construction

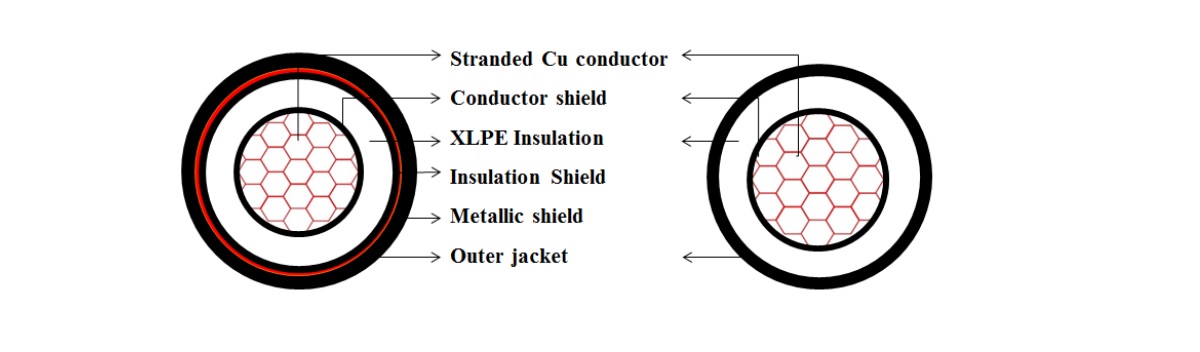

☉〉 Conductor: Stranded copper
☉〉 Conductor shield: Semi-conducting layer
☉〉 Insulation: XLPE
☉〉 Insulation shield: Semi-conducting layer
☉〉 Metallic shield: Copper tape or wire
☉〉 Outer jacket: PVC or PE
Features
☉〉 Designed for airfield lighting circuits (runway, taxiway, approach lighting)
☉〉 Shielded construction minimizes electromagnetic interference to navigation systems
☉〉 XLPE insulation provides high dielectric strength and thermal rating (90°C continuous)
☉〉 Metallic shield enables fault current return and protects against surges
☉〉 Outer jacket resists moisture, UV, abrasion, and jet fuel/oil exposure
Product Data Sheet
| FAA-L-824 Type C Airport Lighting Power Cable 5KV Single copper conductor /XLPE insulation / Shielded | ||||||||||
Conductor Size | Strand | Insulation system(mm) | Copper tape shield thickness (mm) | Nominal Jacket thickness (mm) | Approx. cable dia.* (mm) | Approx. cable weight | ||||
AWG | mm2 | No.s | Semi-conducting layer | XLPE nominal thickness | Semi-conducting layer | PVC | PE | |||
8 | 8.37 | 7 or 19 | 0.3 | 2.16 | 0.25 | 0.06 | 1.8 | 14.5 | 270 | 240 |
6 | 13.3 | 7 or 19 | 0.3 | 2.16 | 0.25 | 0.06 | 1.8 | 15.5 | 340 | 300 |
4 | 21 | 7 or 19 | 0.3 | 2.16 | 0.25 | 0.06 | 1.8 | 16.7 | 430 | 390 |
*Maximum allowable overall diameter should be stated before order . When duct space or other enclosure dimensions are not limited, it is desirable not to restrict the overall diameter | ||||||||||
| FAA-L-824 Type C Airport Lighting Power Cable 5KV Single copper conductor /XLPE insulation / Non-Shielded | ||||||||
Conductor Size | Strand | Insulation system(mm) | Nominal Jacket thickness (mm) | Approx. cable dia. (mm) | Approx. cable weight | |||
AWG | mm2 | / | Semi-conducting layer | XLPE Insulation nominal thickness | PVC | PE | ||
8 | 8.37 | 7 | 0.15 | 2.3 | 0.9 | 10.9 | 163.1 | 149 |
8 | 8.37 | 19 | 0.15 | 2.3 | 0.9 | 11.0 | 163.5 | 150 |
6 | 13.3 | 7 | 0.15 | 2.3 | 0.9 | 11.9 | 218.7 | 204 |
6 | 13.3 | 19 | 0.15 | 2.3 | 0.9 | 11.9 | 218.8 | 204 |
4 | 21 | 7 | 0.15 | 2.3 | 1.0 | 13.3 | 307.6 | 289 |
4 | 21 | 19 | 0.15 | 2.3 | 1.0 | 13.4 | 308.0 | 289 |
