UL1424 power-limited fire alarm cable (FPL, FPLR, FPLP). Overall foil+braid shield, noise immunity. Flame spread ≤5ft, smoke ≤0.50.
Application
Power-limited fire alarm cable per UL 1424 (FPL, FPLR, FPLP). For fire alarm systems, smoke detectors, pull stations, horn strobes, sprinkler monitoring, voice evacuation systems and security access control signals. FPLR (riser) vertical shafts, FPLP (plenum) air handling spaces. Meets NFPA 72/70 (NEC 760), flame propagation ≤5ft, peak smoke optical density ≤0.50. Solid/stranded bare copper, PVC/XLPE insulation 60°C, overall shield (foil+braid) for signal integrity in electrically noisy environments. Twisted pair construction.
Core Strengths
Unshielded fire alarm cabling experiences false triggers from building EMI (elevators, VFDs). Our UL1424 FPLP/R has overall foil+braid shield for noise immunity, meets flame spread ≤5ft, smoke density ≤0.50. FPLP plenum rated, FPLR riser rated.
Standard
As per Customer’s technical specifications

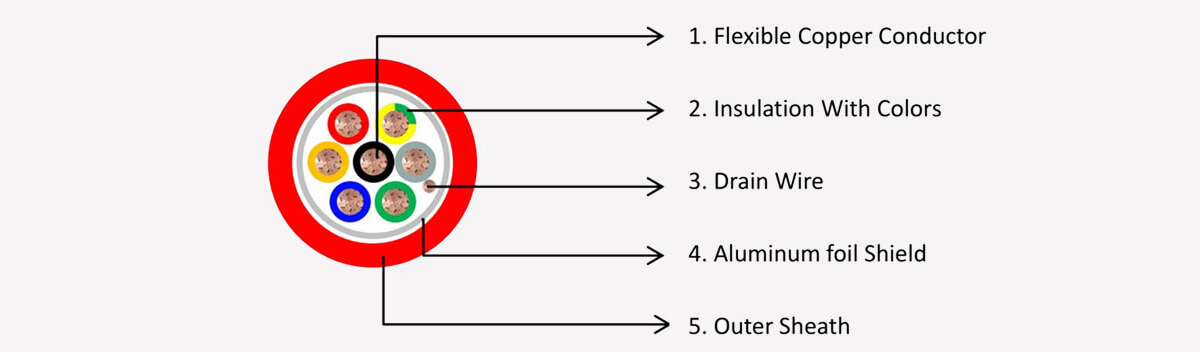

Construction
☉〉 Conductor: Flexible copper (stranded)
☉〉 Insulation: Color-coded PVC
☉〉 Drain wire: Tinned copper
☉〉 Shield: Aluminum foil
☉〉 Outer sheath: PVC or LSZH
Features
☉〉 Designed for fire alarm and security systems
☉〉 Aluminum foil shield with drain wire provides EMI/RFI protection and easy grounding
☉〉 Color-coded cores simplify identification and installation
☉〉 Flexible conductor for easy routing in conduits and trays
☉〉 Flame-retardant and low smoke options available (LSZH)
Product Data Sheet
| Product Data Sheet | ||||
| Conductor size | Insulation | Jacket | ||
| Nom.thick(mm) | Nom.diam.(mm) | Nom.thick(mm) | Nom.diam.(mm) | |
| 2*1.0 | 0.6 | 2.4 | 1 | 6.8 |
| 2*1.5 | 0.7 | 2.8 | 0.8 | 7.2 |
| 2*2.5 | 0.8 | 3.4 | 1 | 9 |
| 4*0.5 | 0.4 | 1.6 | 1.2 | 6.2 |
| 4*1.0 | 0.6 | 2.4 | 0.8 | 7.4 |
| 4*1.5 | 0.7 | 2.8 | 0.8 | 8.3 |
| 4*2.5 | 0.8 | 3.4 | 1.1 | 10.3 |
