Self-supporting ABC cable. Integrated neutral messenger. Simple installation. -40°C to +90°C.
Application
BS 7870-5 / IEC 60502 bundled assembled ABC cable for overhead secondary lines, residential premises feeders, and pole-to-pole distribution. Self-supporting with insulated neutral messenger. XLPE aluminum conductors. Suitable for fixed installation as overhead power lines up to 1000 V.
Core Strengths
Conventional secondary lines need separate messenger wires, increasing installation complexity. Our bundled assembled ABC cable integrates neutral messenger, enabling simple self-supporting installation. Operating temp: -40°C to +90°C. CE/ISO/TÜV certified. Factory direct.
Standard
IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474
Construction

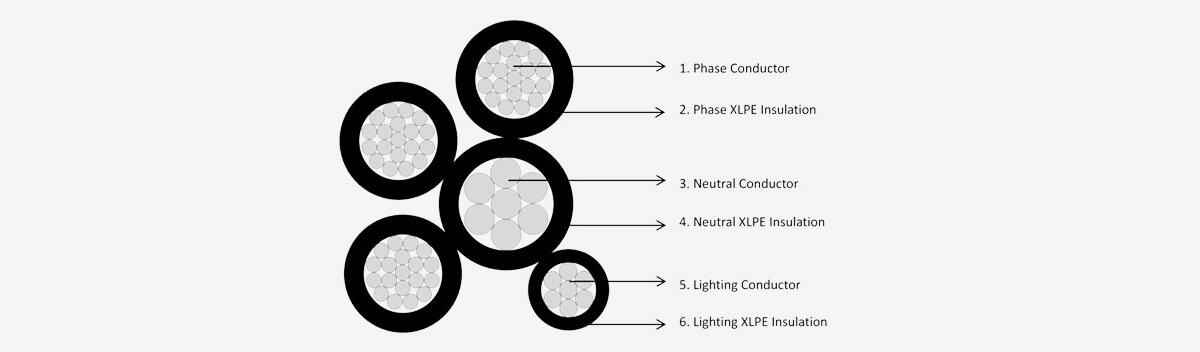

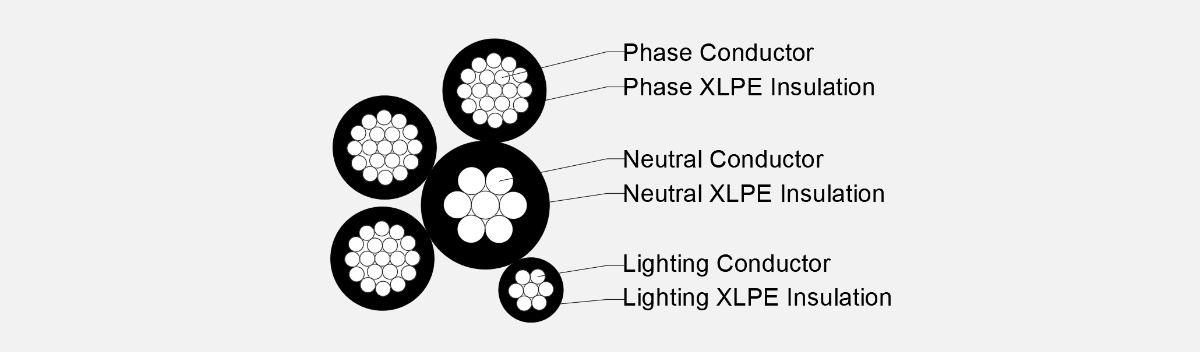

☉〉 Conductors: Compacted aluminum (or aluminum alloy) for phase, neutral, and lighting
☉〉 Insulation: UV-resistant XLPE for each conductor (phase, neutral, lighting)
☉〉 Assembly: Insulated conductors bundled together in parallel or twisted formation
☉〉 Optional: Neutral messenger (steel or ACSR) for self-supporting design (as applicable)
Features
☉〉 UV and weather resistant – ideal for outdoor aerial networks
☉〉 XLPE insulation enables high current rating and 90°C normal operation
☉〉 Integrated lighting conductor allows easy street light connection
☉〉 Reduced power loss, voltage drop, and short-circuit risk
☉〉 Lightweight and easy to install, lower overall cost than bare conductors
Product Data Sheet
| 0.6/1KV-Bundle Assembled Insulated Cables-NF C 33-209 | |||||
| Core No.x Conductor size | Approx. Cable Dia. | Approx. Cable Weight | Core No.x Conductor size | Approx. Cable Dia. | Approx. Cable Weight |
| mm2 | mm | kg/km | mm2 | mm | kg/km |
| 2x16 | 15 | 135 | 4x16 | 18 | 270 |
| 2x25 | 18 | 200 | 4x25 | 21 | 400 |
| 3x25+54.6+16 | 25.46 | 566 | 3x25+54.6+2x16 | 27.33 | 632 |
| 3x35+54.6+16 | 27.73 | 677 | 3x35+54.6+2x16 | 29.43 | 744 |
| 3x50+54.6+16 | 29.51 | 814 | 3x50+54.6+2x16 | 31.08 | 880 |
| 3x70+54.6+16 | 32.91 | 1025 | 3x70+54.6+2x16 | 34.23 | 1090 |
| 3x70+54.6+25 | 33.72 | 1058 | 3x70+54.6+2x25 | 35.73 | 1158 |
| 3x70+70+16 | 33.7 | 1080 | 3x70+70+2x16 | 34.95 | 1145 |
| 3x70+70+25 | 34.51 | 1113 | 3x70+70+2x25 | 36.45 | 1213 |
| 3x95+54.6+16 | 35.51 | 1252 | 3x95+54.6+2x16 | 36.63 | 1319 |
| 3x95+54.6+25 | 36.32 | 1286 | 3x95+54.6+2x25 | 38.13 | 1387 |
| 3x95+95+16 | 37.37 | 1387 | 3x95+95+2x16 | 38.35 | 1453 |
| 3x95+95+25 | 38.18 | 1421 | 3x95+95+2x25 | 39.85 | 1522 |
| 3x120+54.6+16 | 37.77 | 1478 | 3x120+54.6+2x16 | 38.73 | 1544 |
| 3x120+54.6+25 | 38.58 | 1512 | 3x120+54.6+2x25 | 40.23 | 1611 |
| 3x120+95+16 | 39.64 | 1612 | 3x120+95+2x16 | 40.45 | 1679 |
| 3x120+95+25 | 40.45 | 1646 | 3x120+95+2x25 | 41.95 | 1746 |
| 3x150+54.6+16 | 41.01 | 1779 | 3x150+54.6+2x16 | 41.73 | 1845 |
| 3x150+54.6+25 | 41.82 | 1813 | 3x150+54.6+2x25 | 43.23 | 1913 |
| 3x150+95+16 | 42.88 | 1913 | 3x150+95+2x16 | 43.45 | 1980 |
| 3x150+95+25 | 43.69 | 1948 | 3x150+95+2x25 | 44.95 | 2048 |
