Self-supporting service cable. Integrated neutral messenger. XLPE insulation -40°C to +90°C.
Application
IEC 60502 / BS 7870-5 bundled assembled aerial service cable (0.6/1kV) for secondary overhead distribution from pole to pole, pole to building service entrance, and rural electrification. XLPE insulated aluminum conductors, self-supporting design with insulated neutral messenger. Suitable for overhead installation in residential supply, street lighting, and temporary construction power.
Core Strengths
Conventional secondary lines need separate messenger wires, increasing installation complexity. Our bundled assembled cable integrates neutral messenger, enabling simple self-supporting installation. XLPE insulation rated -40°C to +90°C.
Standard
ANSI/ICEA S-105-692,ASTM B-231，ASTM B-400, ASTM B-801

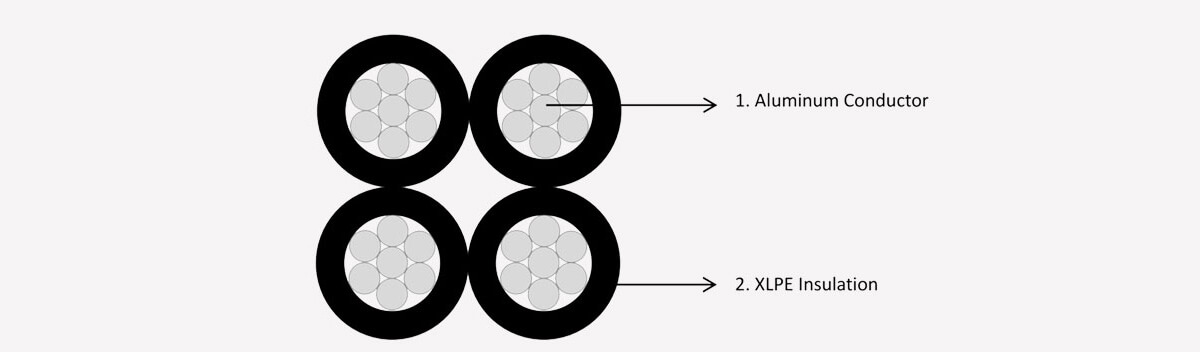

Construction
☉〉 Conductor: Aluminum 1350-H19, 8000 series aluminum alloy
☉〉 Insulation: XLPE/PE
☉〉 Identification: Strip , number , color
Features
☉〉 XLPE insulation provides high current rating and 90°C operation
☉〉 Lightweight aluminum conductor for easy handling
☉〉 Weather-resistant and UV-stable for overhead service use
☉〉 Compact bundled design saves installation time and space
Product Data Sheet
| 0.6/1KV- Bundle Assembled Insulated Cables-NF C 33-209 | |||||||
| Type | Size | Conductor | Insulation | Approx. | |||
| Insulated | |||||||
| Stranding No. | Max. Conductor Resistance 20℃ | Conductor Dia. | Rated strength | Average thickness | dia. | ||
| mm2 | -- | Ω/km | mm | KN | mm | mm | |
| Phase core or Street lighting core | 16 | 7 | 1.91 | 4.6~5.2 | 1.9 | 1.2 | 7.5 |
| 25 | 7 | 1.2 | 5.6~6.5 | - | 1.4 | 9 | |
| 35 | Min.6 | 0.868 | 6.6~7.5 | - | 1.6 | 10.2 | |
| 50 | Min.6 | 0.641 | 7.7~8.6 | - | 1.6 | 11.2 | |
| 70 | Min.12 | 0.443 | 9.3~10.2 | - | 1.8 | 13.2 | |
| 95 | Min.15 | 0.32 | 11.0~12.0 | - | 1.8 | 15 | |
| 120 | Min.15 | 0.253 | 12.3~13.5 | - | 1.8 | 16.2 | |
| 150 | Min15 | 0.206 | 13.7~15.0 | - | 1.7 | 18.2 | |
| Neutral Core | 54.6 | 7 | 0.63 | 9.2~9.6 | 16.6 | 1.6 | 12.6 |
| 70 | 7 | 0.5 | 10.0~10.2 | 20.5 | 1.5 | 14 | |
| 95 | 19 | 0.343 | 12.2~12.9 | 27.5 | 1.6 | 16.1 | |
| 0.6/1KV-Bundle Assembled Insulated Cables-NF C 33-209 | |||||
| Core No.x Conductor size | Approx. Cable Dia. | Approx. Cable Weight | Core No.x Conductor size | Approx. Cable Dia. | Approx. Cable Weight |
| mm2 | mm | kg/km | mm2 | mm | kg/km |
| 2x16 | 15 | 135 | 4x16 | 18 | 270 |
| 2x25 | 18 | 200 | 4x25 | 21 | 400 |
| 3x25+54.6+16 | 25.46 | 566 | 3x25+54.6+2x16 | 27.33 | 632 |
| 3x35+54.6+16 | 27.73 | 677 | 3x35+54.6+2x16 | 29.43 | 744 |
| 3x50+54.6+16 | 29.51 | 814 | 3x50+54.6+2x16 | 31.08 | 880 |
| 3x50+54.6+25 | 30.32 | 848 | 3x50+54.6+2x25 | 32.58 | 948 |
| 3x50+50+16 | 29.27 | 799 | 3x50+50+2x16 | 30.85 | 865 |
| 3x50+50+25 | 30.08 | 833 | 3x50+50+2x25 | 32.35 | 933 |
| 3x70+54.6+16 | 32.91 | 1025 | 3x70+54.6+2x16 | 34.23 | 1090 |
| 3x70+54.6+25 | 33.72 | 1058 | 3x70+54.6+2x25 | 35.73 | 1158 |
| 3x70+70+16 | 33.7 | 1080 | 3x70+70+2x16 | 34.95 | 1145 |
| 3x70+70+25 | 34.51 | 1113 | 3x70+70+2x25 | 36.45 | 1213 |
| 3x95+54.6+16 | 35.51 | 1252 | 3x95+54.6+2x16 | 36.63 | 1319 |
| 3x95+54.6+25 | 36.32 | 1286 | 3x95+54.6+2x25 | 38.13 | 1387 |
| 3x95+95+16 | 37.37 | 1387 | 3x95+95+2x16 | 38.35 | 1453 |
| 3x95+95+25 | 38.18 | 1421 | 3x95+95+2x25 | 39.85 | 1522 |
| 3x120+54.6+16 | 37.77 | 1478 | 3x120+54.6+2x16 | 38.73 | 1544 |
| 3x120+54.6+25 | 38.58 | 1512 | 3x120+54.6+2x25 | 40.23 | 1611 |
| 3x120+95+16 | 39.64 | 1612 | 3x120+95+2x16 | 40.45 | 1679 |
| 3x120+95+25 | 40.45 | 1646 | 3x120+95+2x25 | 41.95 | 1746 |
| 3x150+54.6+16 | 41.01 | 1779 | 3x150+54.6+2x16 | 41.73 | 1845 |
| 3x150+54.6+25 | 41.82 | 1813 | 3x150+54.6+2x25 | 43.23 | 1913 |
| 3x150+95+16 | 42.88 | 1913 | 3x150+95+2x16 | 43.45 | 1980 |
| 3x150+95+25 | 43.69 | 1948 | 3x150+95+2x25 | 44.95 | 2048 |
