CVV-S shielded control cable JIS C 3401. Overall copper braid/foil shield, 80%+ EMI immunity. For instrumentation, PLC panels.
Application
CVV-S PVC insulated shielded control cable per JIS C 3401, rated 450/750V, for fixed and flexible indoor/outdoor control and signal wiring. Suitable for instrumentation, relay/PLC panels, industrial automation, motor control hubs, and teletransmission. Copper braid or overall foil shield provides EMI/RFI immunity. Conductor temp: PVC 70°C, XLPE version optional for 90°C.
Core Strengths
Unshielded signal wires in industrial control panels are vulnerable to EMI, causing data errors. Our CVV-S overall copper/foil shield offers 80%+ EMI immunity, plus fine-strand flexibility for tight termination. PVC (70°C) or XLPE (90°C) insulation options, JIS C 3401, CE/ISO certified. Factory direct.
Standard
GB/T9330 ， IEC60502-1
Cable types
A. Identified by insulation Material
Type | Characteristic |
PVC Insulated Control Cables | Operation temperature 70℃ |
XLPE Insulated Control Cables | Operation temperature 90℃ |
Rubber Insulated Control Cables | Operation temperature 70℃ |
Silicon Insulated Control Cables | Operation temperature 180℃ |
B. Identified by Shield material
Type | Characteristic |
Copper Tape Shielded Control Cables | Better shielding effect and lower cost |
Copper Wire Braiding Shielded Control Cables | Larger current carrying capacity, better anti-overload resistance in short circuit |

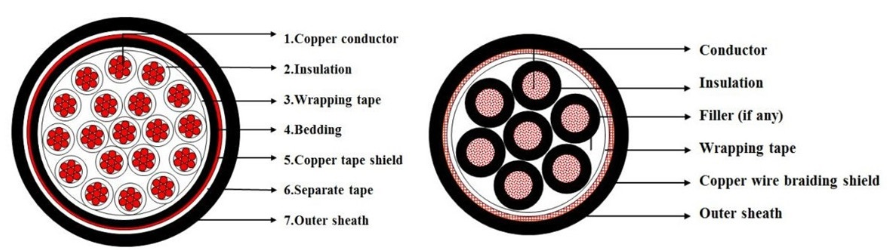

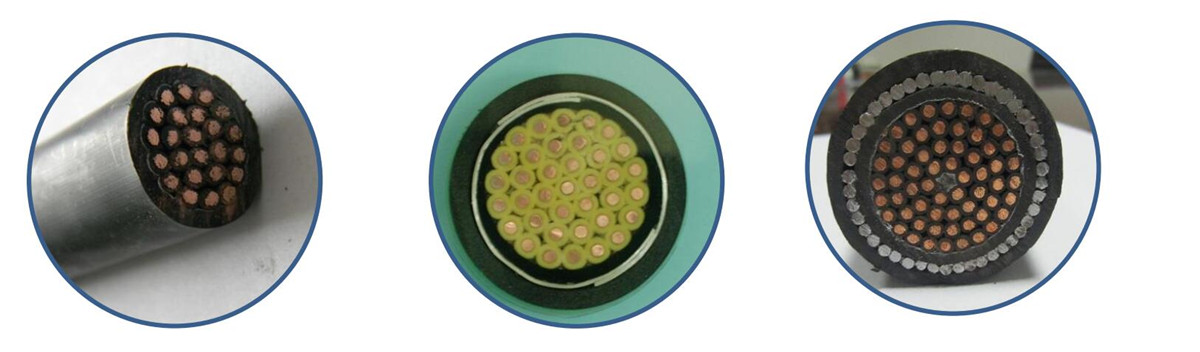

Construction
☉〉 Conductor: Annealed stranded or solid copper (untinned)
☉〉 Insulation: PVC (Polyvinyl Chloride)
☉〉 Assembly: Two or more insulated cores twisted together, with suitable filler and binder tape
☉〉 Shield: Copper tape (100% coverage, EMI/RFI protection)
☉〉 Sheath: PVC outer sheath
Features
☉〉 Rated voltage: 600V (Taiwan/Asia rating) or 0.6/1kV (IEC rating)
☉〉 Copper tape shielding provides effective electromagnetic and radio frequency interference protection
☉〉 PVC insulation and sheath deliver good abrasion resistance, weather resistance, and high insulation properties
☉〉 Flame-retardant (passes JIS C 3005 inclined test or IEC 60332)
☉〉 Suitable for control circuit wiring in substations, industrial plants, supervisory electrical equipment, and outdoor dry/wet cable trenches
Product Data Sheet
Copper conductor, PVC Insulation PVC Sheath ,Control Cable | ||||||
Cable Size | Conductor | Nominal Insulation thickness | Nominal Jacket thickness | Approx. Overall Dia. | Approx. Cable Weight | |
Core x Cross-section | Stranding No. | Approx. Stranded Dia. | ||||
mm2 | pcs | mm | mm | mm | mm | kg/km |
2*1.5 | 7 | 1.50 | 0.7 | 1.2 | 8.7 | 86 |
3*1.5 | 7 | 1.50 | 0.7 | 1.2 | 9.2 | 110 |
4*1.5 | 7 | 1.50 | 0.7 | 1.2 | 10 | 136 |
5*1.5 | 7 | 1.50 | 0.7 | 1.2 | 10.8 | 162 |
6*1.5 | 7 | 1.50 | 0.7 | 1.2 | 11.7 | 189 |
7*1.5 | 7 | 1.50 | 0.7 | 1.2 | 11.7 | 210 |
8*1.5 | 7 | 1.50 | 0.7 | 1.2 | 13.1 | 239 |
10*1.5 | 7 | 1.50 | 0.7 | 1.5 | 15.4 | 313 |
12*1.5 | 7 | 1.50 | 0.7 | 1.5 | 15.8 | 358 |
14*1.5 | 7 | 1.50 | 0.7 | 1.5 | 16.6 | 407 |
16*1.5 | 7 | 1.50 | 0.7 | 1.5 | 17.5 | 456 |
19*1.5 | 7 | 1.50 | 0.7 | 1.5 | 18.4 | 526 |
24*1.5 | 7 | 1.50 | 0.7 | 1.7 | 21.8 | 674 |
27*1.5 | 7 | 1.50 | 0.7 | 1.7 | 22.3 | 742 |
30*1.5 | 7 | 1.50 | 0.7 | 1.7 | 23.1 | 813 |
37*1.5 | 7 | 1.50 | 0.7 | 1.7 | 24.9 | 977 |
44*1.5 | 7 | 1.50 | 0.7 | 1.7 | 27.9 | 1151 |
48*1.5 | 7 | 1.50 | 0.7 | 1.7 | 28.4 | 1241 |
52*1.5 | 7 | 2.0 | 0.7 | 1.7 | 29.2 | 1333 |
61*1.5 | 7 | 2.0 | 0.7 | 2 | 31.6 | 1582 |
2*2.5 | 7 | 2.0 | 0.8 | 1.2 | 10 | 128 |
3*2.5 | 7 | 2.0 | 0.8 | 1.2 | 10.6 | 164 |
4*2.5 | 7 | 2.0 | 0.8 | 1.2 | 11.5 | 203 |
5*2.5 | 7 | 2.0 | 0.8 | 1.2 | 12.6 | 246 |
6*2.5 | 7 | 2.0 | 0.8 | 1.5 | 14.3 | 309 |
7*2.5 | 7 | 2.0 | 0.8 | 1.5 | 14.3 | 325 |
8*2.5 | 7 | 2.0 | 0.8 | 1.5 | 15.9 | 391 |
10*2.5 | 7 | 2.0 | 0.8 | 1.5 | 18 | 463 |
12*2.5 | 7 | 2.0 | 0.8 | 1.5 | 18.6 | 533 |
14*2.5 | 7 | 2.0 | 0.8 | 1.5 | 19.5 | 597 |
16*2.5 | 7 | 2.0 | 0.8 | 1.7 | 20.9 | 690 |
19*2.5 | 7 | 2.0 | 0.8 | 1.7 | 22.1 | 800 |
24*2.5 | 7 | 2.0 | 0.8 | 1.7 | 25.7 | 997 |
27*2.5 | 7 | 2.0 | 0.8 | 1.7 | 26.3 | 1102 |
30*2.5 | 7 | 2.0 | 0.8 | 1.7 | 27.3 | 1211 |
37*2.5 | 7 | 2.0 | 0.8 | 1.7 | 29.4 | 1462 |
44*2.5 | 7 | 2.5 | 0.8 | 2 | 33.7 | 1772 |
48*2.5 | 7 | 2.5 | 0.8 | 2 | 34.3 | 1912 |
52*2.5 | 7 | 2.5 | 0.8 | 2 | 35.2 | 2054 |
61*2.5 | 7 | 2.5 | 0.8 | 2.2 | 37.8 | 2411 |
2*4 | 7 | 2.5 | 0.8 | 1.2 | 11.1 | 170 |
3*4 | 7 | 2.5 | 0.8 | 1.2 | 11.7 | 220 |
4*4 | 7 | 2.5 | 0.8 | 1.2 | 12.8 | 277 |
5*4 | 7 | 2.5 | 0.8 | 1.5 | 14.6 | 356 |
6*4 | 7 | 2.5 | 0.8 | 1.5 | 15.9 | 420 |
7*4 | 7 | 2.5 | 0.8 | 1.5 | 15.9 | 447 |
8*4 | 7 | 2.5 | 0.8 | 1.5 | 17.8 | 538 |
10*4 | 7 | 2.5 | 0.8 | 1.5 | 20.1 | 640 |
12*4 | 7 | 2.5 | 0.8 | 1.7 | 21.2 | 760 |
14*4 | 7 | 2.5 | 0.8 | 1.7 | 22.3 | 855 |
16*4 | 7 | 2.5 | 0.8 | 1.7 | 23.5 | 964 |
19*4 | 7 | 2.5 | 0.8 | 1.7 | 24.8 | 1122 |
24*4 | 7 | 2.5 | 0.8 | 1.7 | 29 | 1402 |
27*4 | 7 | 2.5 | 0.8 | 1.7 | 29.6 | 1555 |
30*4 | 7 | 2.55 | 0.8 | 2 | 31.3 | 1754 |
37*4 | 7 | 2.55 | 0.8 | 2 | 33.8 | 2123 |
44*4 | 7 | 2.55 | 0.8 | 2.2 | 38.4 | 2542 |
48*4 | 7 | 2.55 | 0.8 | 2.2 | 39.1 | 2747 |
52*4 | 7 | 2.55 | 0.8 | 2.2 | 40.2 | 2955 |
61*4 | 7 | 2.55 | 0.8 | 2.2 | 42.7 | 3425 |
Copper conductor, PVC Insulation PVC Sheath ,Copper Tape Shielded Control Cable | |||||||
Cable Size | Conductor | Nominal Insulation thickness | Copper Tape Thickness Min. | Nominal Jacket thickness | Approx. Overall Dia. | Approx. Cable Weight | |
Core x Cross-section | Stranding No. | Approx. Stranded Dia. | |||||
mm2 | pcs | mm | mm | mm | mm | mm | kg/km |
4*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.2 | 12.7 | 218 |
5*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.2 | 13.5 | 250 |
6*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.2 | 14.4 | 284 |
7*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.2 | 14.4 | 305 |
8*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.5 | 16.4 | 367 |
10*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.5 | 18.1 | 434 |
12*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.5 | 18.5 | 483 |
14*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.5 | 19.3 | 537 |
16*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.5 | 20.2 | 593 |
19*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.5 | 21.1 | 670 |
24*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 24.5 | 843 |
27*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 25.0 | 915 |
30*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 25.8 | 991 |
37*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 27.6 | 1169 |
44*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 30.6 | 1365 |
48*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 31.1 | 1458 |
52*1.5 | 7 | 1.50 | 0.7 | 0.05 | 1.7 | 31.9 | 1556 |
61*1.5 | 7 | 1.50 | 0.7 | 0.05 | 2.0 | 34.3 | 1823 |
4*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.2 | 14.2 | 297 |
5*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.2 | 15.3 | 348 |
6*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.5 | 17.0 | 422 |
7*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.5 | 17.0 | 439 |
8*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.5 | 18.6 | 517 |
10*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.5 | 20.7 | 604 |
12*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.5 | 21.3 | 678 |
14*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.5 | 22.2 | 749 |
16*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.7 | 23.6 | 852 |
19*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.7 | 24.8 | 971 |
24*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.7 | 28.4 | 1194 |
27*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.7 | 29.0 | 1304 |
30*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.7 | 30.0 | 1420 |
37*2.5 | 7 | 2.0 | 0.8 | 0.05 | 1.7 | 32.1 | 1687 |
44*2.5 | 7 | 2.0 | 0.8 | 0.05 | 2.0 | 36.4 | 2028 |
48*2.5 | 7 | 2.0 | 0.8 | 0.05 | 2.0 | 37.0 | 2172 |
52*2.5 | 7 | 2.0 | 0.8 | 0.05 | 2.0 | 37.9 | 2322 |
61*2.5 | 7 | 2.0 | 0.8 | 0.05 | 2.2 | 40.5 | 2697 |
4*4 | 7 | 2.5 | 0.8 | 0.05 | 1.2 | 15.5 | 380 |
5*4 | 7 | 2.5 | 0.8 | 0.05 | 1.5 | 17.3 | 471 |
6*4 | 7 | 2.5 | 0.8 | 0.05 | 1.5 | 18.6 | 545 |
7*4 | 7 | 2.5 | 0.8 | 0.05 | 1.5 | 18.6 | 573 |
8*4 | 7 | 2.5 | 0.8 | 0.05 | 1.5 | 20.5 | 678 |
10*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 23.2 | 817 |
12*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 23.9 | 924 |
14*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 25.0 | 1028 |
16*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 26.2 | 1145 |
19*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 27.5 | 1313 |
24*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 31.7 | 1624 |
27*4 | 7 | 2.5 | 0.8 | 0.05 | 1.7 | 32.3 | 1782 |
30*4 | 7 | 2.5 | 0.8 | 0.05 | 2.0 | 34.0 | 1993 |
37*4 | 7 | 2.5 | 0.8 | 0.05 | 2.0 | 36.5 | 2380 |
44*4 | 7 | 2.5 | 0.8 | 0.05 | 2.2 | 41.1 | 2833 |
48*4 | 7 | 2.5 | 0.8 | 0.05 | 2.2 | 41.8 | 3042 |
52*4 | 7 | 2.5 | 0.8 | 0.05 | 2.2 | 42.9 | 3259 |
61*4 | 7 | 2.5 | 0.8 | 0.05 | 2.2 | 45.4 | 3747 |
