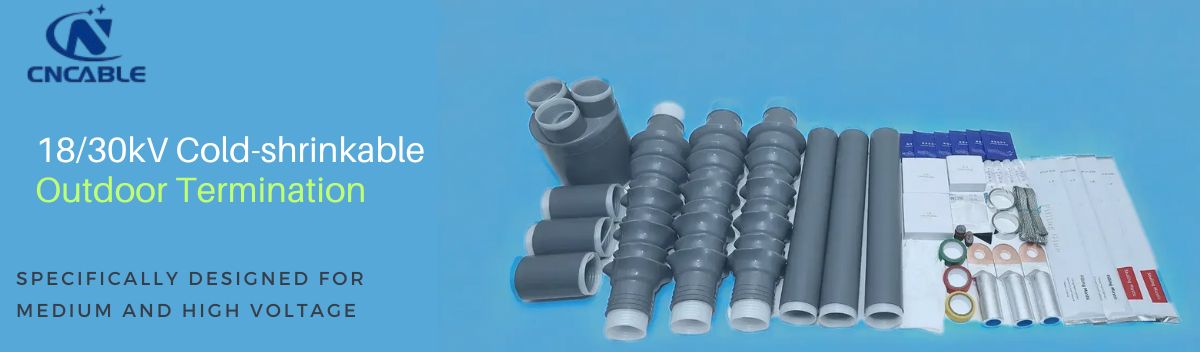

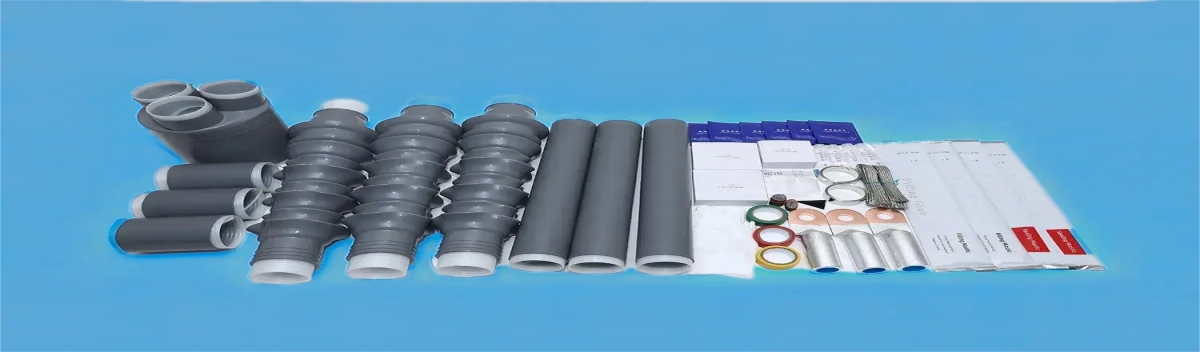

18/30kV Cold-shrinkable Outdoor Termination

The 18/30kV Cold-Shrink Outdoor Cable Termination is specifically designed for medium and high voltage XLPE-insulated cables. Manufactured with high-grade liquid silicone rubber, it is ideal for demanding installation environments.

Application

The 18/30kV Cold-Shrink Outdoor Cable Termination is specifically designed for medium and high

voltage XLPE-insulated cables. Manufactured with high-grade liquid silicone rubber, it is ideal for

demanding installation environments.

Applicable Cable Cross-Section

50 ~ 630 mm²

Maximum System Voltage

40.5 kV

System Rated Frequency

50 Hz

Maximum Installation Altitude

≤ 2000 m

Operating Temperature Range

-55°C ~ +45°C

Number of Cores

1 core / 3 cores

Cable Shield Type

Tape / Wire


Standard

IEC 60502-4


Construction

        Technical Specifications

Parameter

Value

Rated Voltage

18/30kV (Max System Voltage: 40.5kV)

Frequency

50Hz

Applicable Cable Cross-section

50 – 630 mm²

Cable Type

XLPE insulation, corrugated aluminum sheath, wire shield

Number of Cores

Single-core / Three-core

Insulator Material

Liquid Silicone Rubber

Installation Method

Angled allowed, upside-down not allowed

Minimum Creepage Distance

≥ 400mm (from skirt to end and ground)

Grounding Options

Tinned copper braid or copper wire

Terminal Type

Compression lug or shear bolt

Altitude Suitability

≤ 2000m

Operating Temperature

-55°C to +45°C

Storage Temperature

0°C to 35°C

Installation Temperature

5°C to 35°C

Product Height

1010mm

Creepage Distance

1260mm

Weight

2.8 ~ 3.7kg


Electrical Testing (According to IEC 60502-4)

Test Item

Test Value

AC Voltage (dry, 5 mins)

117kV

AC Voltage (wet, 1 min)

104kV

Partial Discharge (at ambient & elevated)

45kV ≤ 2.8pC

Impulse Voltage (±10 pulses, 95~100°C)

200kV

AC Voltage After Impulse (15 mins)

65kV

Humidity Endurance Test (300 hrs)

32.5kV

Salt Fog Test (1000 hrs)

32.5kV


Features

Premium Material: Made from top-quality liquid silicone rubber, featuring excellent insulation, aging resistance,

pollution resistance, low-temperature endurance, and superior hydrophobicity.



Advanced Manufacturing: Produced with precision equipment, ensuring rubber components are free from

bubbles, burns, and contaminants. Strong bonding between insulation and semi-conductive layers eliminates cracking or delamination.



Easy Installation: Utilizes the “elastic memory”of silicone rubber. Rubber parts are pre-expanded over

removable plastic cores; once removed, the component shrinks tightly onto the cable, requiring no heat or special tools.



High Adaptability: Suitable for areas with high altitude, extreme cold, pollution, or fire and explosion risks—

ideal for industries like petrochemical, mining, and heavy industrial zones.
