Cold resistant cable
Application
Temperature (for cold resitance): -40 degree to +105 degree centigrade,Used as connecting and control cable for cranes and conveyors, it is suitable for the places of railway stations, crane and other related situations. Suitable as a control and connection for cranes and conveyors on building sites, container goods railway stations and cock yards where operating conditions are rough.
Standard
Acc.To VDE0482, part 265-2-1 resp. EN50265-2-1, IEC60332-1

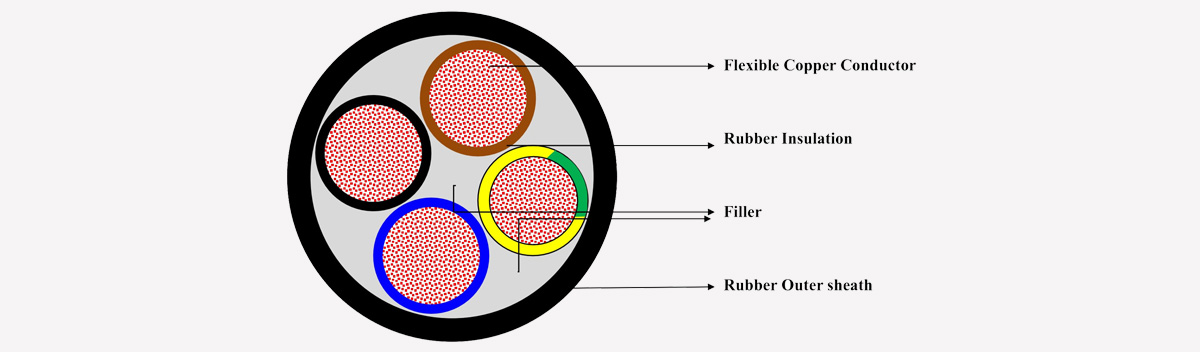

Construction
1. The Max temperature of conductor: lower than 70 degree centigrade
2. Temperature range: -15 degree to +40 degree centigrade
3. Cables are recommended for Installations where the suspended length doesn't exceed 80m;
4. the speed of travel does not exceed 4m/s.
Features
| Cold resistant cable | ||||||
| Type | Cores | Cross section sq mm | Width (mm) | Thickness (mm) | Weight(kg/km) | Shape |
| YFFB | 4 | 4 | 21.9±1.5 | 7.3±0.5 | 360.4 | Parallel |
| YFFB | 5 | 4 | 27.3±1.5 | 7.3±0.5 | 447.3 | Parallel |
| YFFB | 6 | 4 | 31.7±2.0 | 7.3±0.5 | 523.8 | Parallel |
| YFFB | 7 | 4 | 36.1±2.0 | 7.3±0.5 | 600.3 | Parallel |
| YFFB | 8 | 4 | 40.5±2.0 | 7.3±0.5 | 676.8 | Parallel |
| YFFB(G) | 4 | 4 | 27.4±1.5 | 7.3±0.5 | 429.3 | Parallel (With Steel wire) |
| YFFB(G) | 5 | 4 | 32.8±1.5 | 7.3±0.5 | 516.2 | Parallel (With Steel wire) |
| YFFB(G) | 6 | 4 | 36.2±2.0 | 7.3±0.5 | 582.3 | Parallel (With Steel wire) |
| YFFB(G) | 7 | 4 | 41.6±2.0 | 7.3±0.5 | 669.2 | Parallel (With Steel wire) |
| YFFB(G) | 8 | 4 | 46.0±2.0 | 7.3±0.5 | 745.7 | Parallel (With Steel wire) |
| YFFB | 4 | 6 | 26.9±1.5 | 8.0±0.5 | 498.1 | Parallel |
| YFFB | 5 | 6 | 32.0±2.0 | 8.0±0.5 | 601.7 | Parallel |
| YFFB | 6 | 6 | 38.7±2.0 | 8.0±0.5 | 723.4 | Parallel |
| YFFB | 7 | 6 | 42.2±2.0 | 8.0±0.5 | 809 | Parallel |
| YFFB | 8 | 6 | 48.9±2.0 | 8.0±0.5 | 930.7 | Parallel |
| YFFB(G) | 4 | 6 | 35.9±2.0 | 8.0±0.5 | 654.9 | Parallel(with steel wire) |
| YFFB(G) | 5 | 6 | 41.0±2.5 | 8.0±0.5 | 758.5 | Parallel(with steel wire) |
| YFFB(G) | 6 | 6 | 46.1±2.5 | 8.0±0.5 | 862.1 | Parallel(with steel wire) |
| YFFB(G) | 7 | 6 | 51.2±2.5 | 8.0±0.5 | 965.8 | Parallel(with steel wire) |
| YFFB(G) | 8 | 6 | 57.9±2.5 | 8.0±0.5 | 1087.5 | Parallel(with steel wire) |
| YFFB | 4 | 10 | 34.5±2.0 | 9.7±0.5 | 770.2 | Parallel |
| YFFB | 5 | 10 | 41.4±2.0 | 9.7±0.5 | 936.5 | Parallel |
| YFFB | 6 | 10 | 50.1±2.0 | 9.7±0.5 | 1127.6 | Parallel |
| YFFB | 7 | 10 | 55.2±2.0 | 9.7±0.5 | 1269.3 | Parallel |
| YFFB | 8 | 10 | 63.9±2.5 | 9.7±0.5 | 1460.4 | Parallel |
| YFFB(G) | 4 | 10 | 43.5±2.0 | 9.7±0.5 | 948.6 | Parallel(with steel wire) |
| YFFB(G) | 5 | 10 | 50.4±2.0 | 9.7±0.5 | 1115 | Parallel(with steel wire) |
| YFFB(G) | 6 | 10 | 57.3±2.0 | 9.7±0.5 | 1281.4 | Parallel(with steel wire) |
| YFFB(G) | 7 | 10 | 64.2±2.5 | 9.7±0.5 | 1447.8 | Parallel(with steel wire) |
| YFFB(G) | 8 | 10 | 72.9±2.5 | 9.7±0.5 | 1638.8 | Parallel(with steel wire) |
