UL1277 control cable, TC type. CPE jacket, EPR insulation 90°C. Oil, moisture, sunlight resistant. For chemical plants, substations.
Application
Industrial control cable per UL 1277 / ICEA S-73-532, rated 600V, for fixed power and control applications in manufacturing plants, utility substations, chemical plants and steel mills. Suitable for open air, conduit, cable tray applications, and direct burial. Applications include operation of electric valves, telemetering, remote signaling, lighting and signal transmission. Temp -30°C to 90°C.
Core Strengths
Harsh chemical plants degrade ordinary cables. Our UL1277 control cable resists oil, moisture and sunlight with CPE jacket, EPR insulation rated 90°C, flame retardant.
Standard
GB/T9330 ， IEC60502

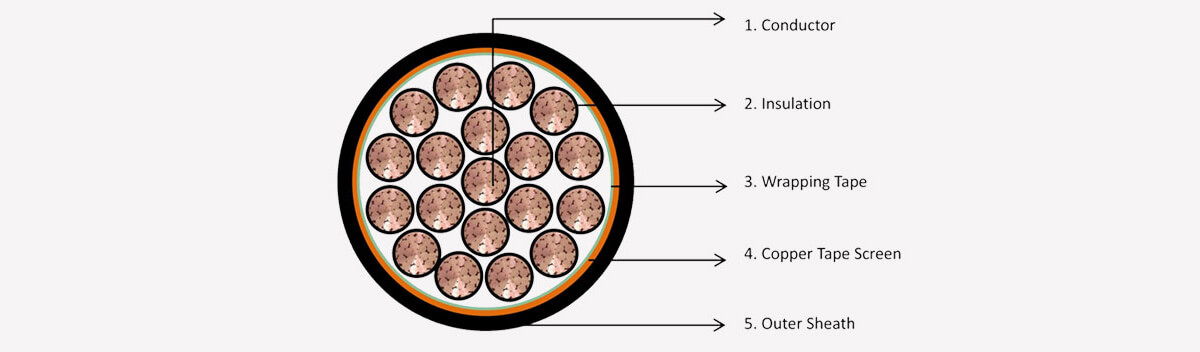

Construction
☉〉 Conductor: Copper (stranded or solid)
☉〉 Insulation: PVC, XLPE, or similar
☉〉 Wrapping tape: Binder over insulated cores
☉〉 Copper tape screen: EMI/RFI shielding
☉〉 Outer sheath: PVC or LSZH
Features
☉〉 Copper tape screen provides effective electromagnetic interference protection
☉〉 Suitable for control, instrumentation, and signal transmission in industrial equipment
☉〉 Outer sheath offers mechanical strength and environmental resistance
☉〉 Available in multiple core configurations and voltage ratings (e.g., 450/750V)
Product Data Sheet
| Identified by insulation Material | ||||||
| Type | Characteristic | |||||
| PVC Insulated Control Cables | Operation temperature 70℃ | |||||
| XLPE Insulated Control Cables | Operation temperature 90℃ | |||||
| Rubber Insulated Control Cables | Operation temperature 70℃ | |||||
| Silicon Insulated Control Cables | Operation temperature 180℃ | |||||
