Covered line conductor (not insulation-rated). Prevents direct shorts from tree contact. Lower cost than fully insulated ABC.
Application
600V covered line conductor (not insulation-rated) for overhead secondary distribution lines where covering provides circuit protection against momentary contact with trees or other conductors. Installed on insulators as bare conductor. ASTM/ICEA S-61-402.
Core Strengths
Bare secondary lines in wooded areas cause outages from tree contact. Our covered line conductor's weatherproof polyethylene/XLPE covering prevents direct shorts and flashovers during momentary contacts. Lower cost than fully insulated ABC. ASTM/ICEA. Factory direct.
Standard
IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474
Construction

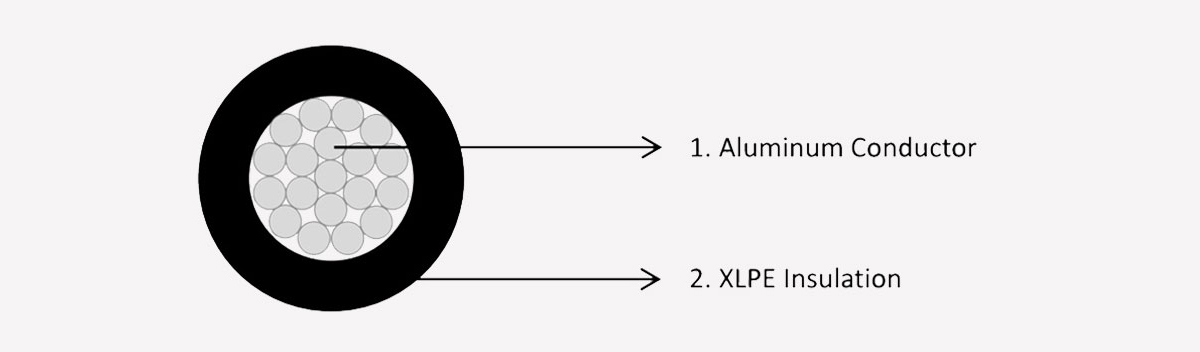

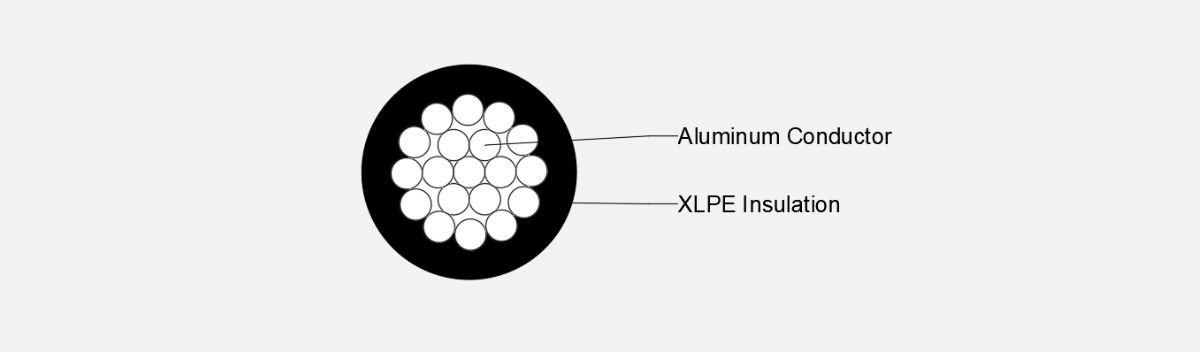

☉〉 Conductor: Aluminum (compact or stranded)
☉〉 Insulation: XLPE (cross-linked polyethylene)
☉〉 Protection: Weather-resistant polyethylene covering layer
Features
☉〉 Rated voltage: 600V
☉〉 XLPE insulation provides high current rating and 90°C operation
☉〉 Weather-resistant polyethylene covering ensures long-term outdoor durability
☉〉 Lightweight and easy to install for overhead distribution lines
☉〉 Reduces tree contact faults and improves safety compared to bare conductors
Product Data Sheet
| Aluminum Conductor Steel-reinforced Covered Line Wire- ICEA S-70-547 | ||||||||||
| Code | Size | Nominal | Conductor | Insulation | Approx. overall dia. | Approx. weight | 20℃DC resistance | Rated tensile strength | ||
| Cross | Single wire | Strands | Nominal | |||||||
| Section | No. | Dia. | Dia. | Thickness | ||||||
| AWG/kcmil | mm2 | Nos | mm | mm | mm | mm | kg/km | Ω/km | daN | |
| Plum | 6 | 13.29 | 7 | 1.55 | 4.65 | 0.76 | 6.17 | 49 | 2.1692 | 249 |
| Apricot | 4 | 21.16 | 7 | 1.96 | 5.38 | 0.76 | 6.90 | 72 | 1.3624 | 396 |
| Peach | 2 | 33.61 | 7 | 2.47 | 6.78 | 1.14 | 9.06 | 120 | 0.8577 | 597 |
| Nectarine | 1 | 42.39 | 7 | 2.78 | 7.63 | 1.52 | 10.67 | 159 | 0.6801 | 732 |
| Quince | 1/0 | 53.48 | 7 | 3.12 | 8.56 | 1.52 | 11.60 | 194 | 0.539 | 873 |
| Haw | 1/0 | 53.48 | 19 | 1.89 | 8.65 | 1.52 | 11.69 | 194 | 0.539 | 873 |
| Orange | 2/0 | 67.42 | 7 | 3.5 | 9.61 | 1.52 | 12.65 | 237 | 0.4276 | 1100 |
| Ironwood | 2/0 | 67.42 | 19 | 2.13 | 9.74 | 1.52 | 12.78 | 238 | 0.4276 | 1100 |
| Fig | 3/0 | 85.03 | 7 | 3.93 | 10.79 | 1.52 | 13.83 | 291 | 0.339 | 1347 |
| Lemon | 3/0 | 85.03 | 19 | 2.39 | 10.93 | 1.52 | 13.97 | 292 | 0.339 | 1347 |
| Olive | 4/0 | 107.23 | 7 | 4.42 | 12.13 | 1.52 | 15.17 | 358 | 0.2688 | 1698 |
| Pomegranate | 4/0 | 107.23 | 19 | 2.68 | 12.26 | 1.52 | 15.30 | 359 | 0.2688 | 1698 |
| Sassafras | 250 | 126.71 | 19 | 2.91 | 13.31 | 2.00 | 17.31 | 442 | 0.2275 | 2007 |
| Mulberry | 266.8 | 135.16 | 19 | 3.01 | 13.77 | 2.00 | 17.77 | 468 | 0.2133 | 2141 |
| Basswood | 300 | 152.00 | 19 | 3.19 | 14.59 | 2.00 | 18.59 | 519 | 0.1896 | 2403 |
