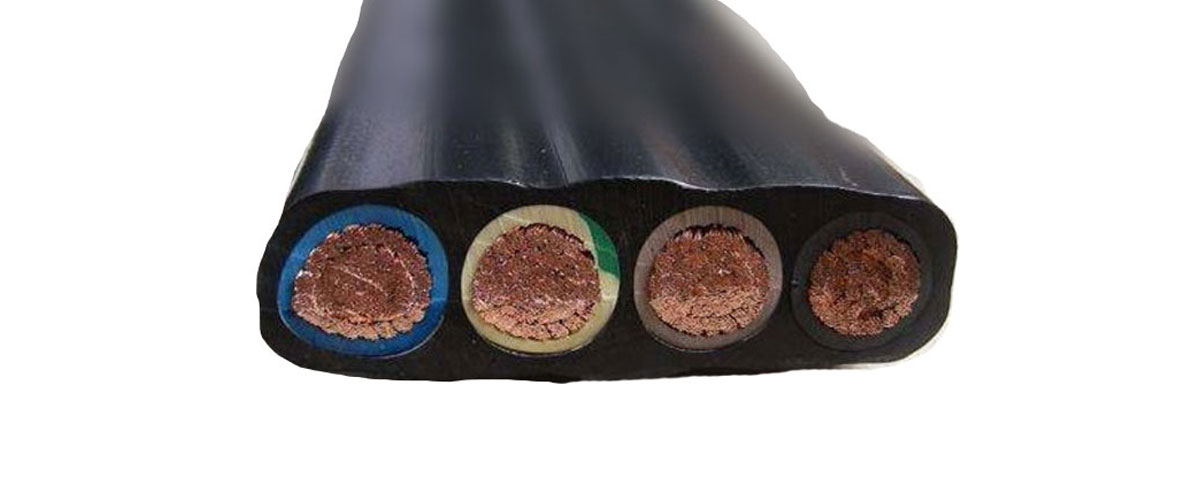

Crane cable
Application
It is Used for cranes, handling systems, machine tools, lifts and e-chain cable carrier systems. For applications with high mechanical stresses and frequent bending in one plane only.
Standard
IEC60228, IEC60502
Construction
Conductor: Flexible copper/tinned copper wire
Insulation: Rubber
Outer sheath: Rubber
Reinforcement(optional): Steel rope
Features
Rated voltage: 300/500V
Bend radius: Fixed laying 8XD ;
Mobile mounting 10XD
Working temperature: Fixed laying -35℃-+80℃;
Mobile installation -20℃-+80℃
Product Data Sheet
| Product Data Sheet | |||||
| Number of cores | Cross section | Conductor dia. | Insulation thickness | Outer sheath thickness | Approx. Cable dimention |
| -- | mm2 | mm | mm | mm | mm |
| 4 | 1.5 | 1.6 | 0.8 | 1.6 | 6.4x17.6 |
| 5 | 1.5 | 1.6 | 0.8 | 1.6 | 6.4x20.8 |
| 7 | 1.5 | 1.6 | 0.8 | 1.6 | 6.4x27.2 |
| 8 | 1.5 | 1.6 | 0.8 | 1.6 | 6.4x30.4 |
| 10 | 1.5 | 1.6 | 0.8 | 1.6 | 6.4x36.8 |
| 12 | 1.5 | 1.6 | 0.8 | 1.6 | 6.4x43.2 |
| 4 | 2.5 | 2.1 | 0.9 | 1.6 | 7.1x20.9 |
| 5 | 2.5 | 2.1 | 0.9 | 1.6 | 7.1x24.8 |
| 7 | 2.5 | 2.1 | 0.9 | 1.6 | 7.1x32.6 |
| 8 | 2.5 | 2.1 | 0.9 | 1.6 | 7.1x36.5 |
| 10 | 2.5 | 2.1 | 0.9 | 1.6 | 7.1x44.3 |
| 12 | 2.5 | 2.1 | 0.9 | 1.6 | 7.1x42.1 |
| 4 | 4 | 2.5 | 1.0 | 1.6 | 7.7x23.7 |
| 5 | 4 | 2.5 | 1.0 | 1.6 | 7.7x28.2 |
| 7 | 4 | 2.5 | 1.0 | 1.6 | 7.7x37.2 |
| 4 | 6 | 3.9 | 1.0 | 1.6 | 9.1x30.7 |
| 5 | 6 | 3.9 | 1.0 | 1.6 | 9.1x36.6 |
| 7 | 6 | 3.9 | 1.0 | 1.6 | 9.1x48.4 |
| 4 | 10 | 5.3 | 1 | 1.6 | 10.5x37.7 |
| 5 | 10 | 5.3 | 1 | 1.6 | 10.5x45 |
| 4 | 16 | 6 | 1.2 | 1.6 | 11.6x42.8 |
| 5 | 16 | 6 | 1.2 | 1.6 | 11.6x51.2 |
| 4 | 25 | 7.7 | 1.2 | 1.6 | 13.3x51.3 |
| 5 | 25 | 7.7 | 1.2 | 1.6 | 13.3x61.4 |
| 4 | 35 | 9.4 | 1.2 | 1.8 | 15.4x60.2 |
| 7 | 35 | 9.4 | 1.2 | 1.8 | 15.4x95.6 |
| 4 | 50 | 11.1 | 1.4 | 1.8 | 17.5x70.3 |
| 4 | 70 | 13 | 1.4 | 1.8 | 19.4x79.8 |
| 4 | 95 | 16 | 1.6 | 1.8 | 22.8x96.4 |
| 4 | 120 | 16.5 | 1.6 | 1.8 | 23.3x98.9 |
