NEC 620 elevator traveling cable. UL62/CSA. Steel core for >200ft suspension. Integrates power, control, coaxial, twisted pair.
Application
Hoistway traveling cable per NEC Article 620, rated 300V, UL 62/CSA C22.2 No. 49. For elevators, dumbwaiters, personnel/material hoists. Suspended lengths up to 200ft (jute core) or over 200ft (steel center core). Power, control, communication conductors in flat/round construction. Flexible stranded copper, PVC insulation 60°C-90°C. Optional shielded pairs for intercom/phone, coaxial for video monitoring. Flame retardant CSA FT1, UL 1581. Cotton/jute filler or steel center core for tension strength, maintains torsion balance during car travel. Color/number coded for identification.
Core Strengths
Trailing cables in hoistways fail from tension cycles, loss of signal integrity. Our NEC 620 elevator cable integrates power, control, coaxial and twisted pair in flexible flame-retardant jacket. Steel core for >200ft suspension, reinforced filler for torsion balance.
Standard
EN 50124,EN60228

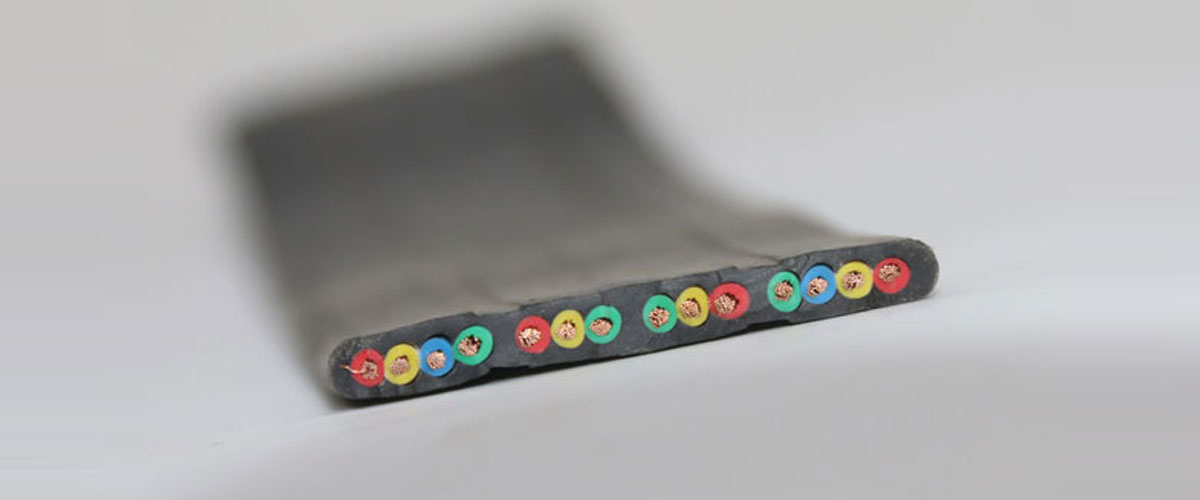

Construction

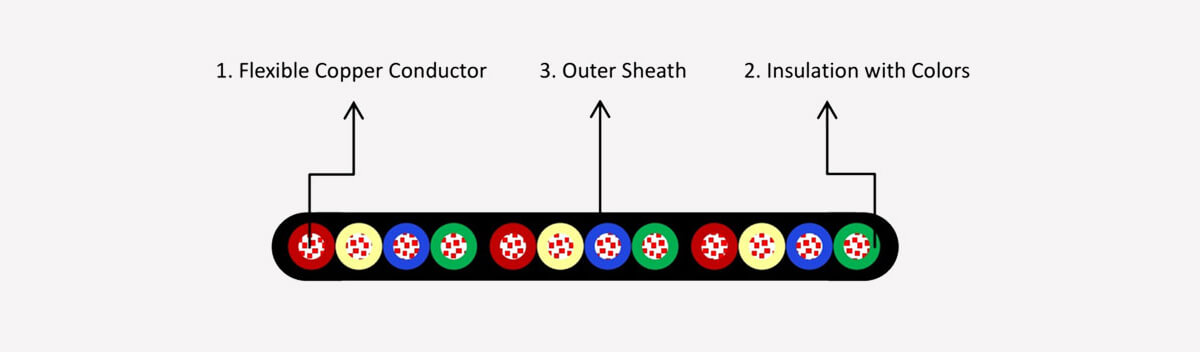

☉〉 Conductor: Flexible copper (stranded)
☉〉 Insulation: Color-coded (e.g., PVC)
☉〉 Sheath: Outer (e.g., PVC)
Features
☉〉 High flexibility for constant bending and movement
☉〉 Color-coded cores for easy identification
☉〉 Durable outer sheath provides mechanical protection
☉〉 Suitable for elevator control and power circuits
Product Data Sheet
| Product Data Sheet | |||||||
| Core Number | Size | Conductor Dia. | Insulation thickness | Outer sheath thickness | Overall dimention | Approx. Cable weight | |
| mm2 | mm | mm | mm | mm | kg/km | ||
| 4 | 1.0 | 1.34 | 0.6 | 1.5 | 13.16 | 4.34 | 108.7 |
| 4 | 1.5 | 1.60 | 0.7 | 1.5 | 15.00 | 5.00 | 146.7 |
| 4 | 2.5 | 2.10 | 0.8 | 1.8 | 18.40 | 5.70 | 215.1 |
| 4 | 4.0 | 3.23 | 0.8 | 1.8 | 25.32 | 7.23 | 351.2 |
| 8 | 1.0 | 1.34 | 0.6 | 1.5 | 24.32 | 4.34 | 210.3 |
| 8 | 1.5 | 1.60 | 0.7 | 1.5 | 28.00 | 5.00 | 286.3 |
| 8 | 2.5 | 2.10 | 0.8 | 1.8 | 34.70 | 5.70 | 422.6 |
| 8 | 4.0 | 3.23 | 0.8 | 1.8 | 49.34 | 7.23 | 705.2 |
| 12 | 1.0 | 1.34 | 0.6 | 1.5 | 35.48 | 4.34 | 304.2 |
| 12 | 1.5 | 1.60 | 0.7 | 1.5 | 41.00 | 5.00 | 415.8 |
| 12 | 2.5 | 2.10 | 0.8 | 1.8 | 51.00 | 5.70 | 616.2 |
| 14 | 1.0 | 1.34 | 0.6 | 1.5 | 31.40 | 4.34 | 299.7 |
| 14 | 1.5 | 1.60 | 0.7 | 1.5 | 36.00 | 5.00 | 409.2 |
| 14 | 2.5 | 2.10 | 0.8 | 1.8 | 45.10 | 5.70 | 613.1 |
| 16 | 1.0 | 1.34 | 0.6 | 1.5 | 36.48 | 4.34 | 347.3 |
| 16 | 1.5 | 1.60 | 0.7 | 1.5 | 42.00 | 5.00 | 475.2 |
| 16 | 2.5 | 2.10 | 0.8 | 1.8 | 52.50 | 5.70 | 710.5 |
| 18 | 1.0 | 1.34 | 0.6 | 1.5 | 41.56 | 4.34 | 394.9 |
| 18 | 1.5 | 1.60 | 0.7 | 1.5 | 48.00 | 5.00 | 541.3 |
| 18 | 2.5 | 2.10 | 0.8 | 1.8 | 59.90 | 5.70 | 807.8 |
| 20 | 1.0 | 1.34 | 0.6 | 1.5 | 57.80 | 4.34 | 521.0 |
| 20 | 1.5 | 1.60 | 0.7 | 1.5 | 67.00 | 5.00 | 713.4 |
| 20 | 2.5 | 2.10 | 0.8 | 1.8 | 83.60 | 5.70 | 1058.4 |
| 24 | 1.0 | 1.34 | 0.6 | 1.5 | 68.96 | 4.34 | 617.1 |
| 24 | 1.5 | 1.60 | 0.7 | 1.5 | 80.00 | 5.00 | 845.0 |
| 24 | 2.5 | 2.10 | 0.8 | 1.8 | 99.90 | 5.70 | 1252.8 |
