H07V-R stranded copper conductor (Class 2). EN 50525-2-31. HAR/CE. More flexible than solid core for switchboards.
Application
H07V-R PVC insulated single core cable with stranded copper conductor (Class 2) per EN 50525-2-31. Application for fixed protected installation in dry/damp rooms, switching/distribution panels, conduit laying on/under plaster, manufacturing facilities and switchboards. Rated 450/750V. Max conductor temp: 70°C, short-circuit 160°C.
Core Strengths
Stranded conductor fixed wiring with insufficient flexibility leads to bending fatigue near connection points in distribution boards. Our H07V-R class 2 stranded provides optimum flexibility, HAR/CE.
Standard
IEC 60227 , BS6004, UL1581, UL83

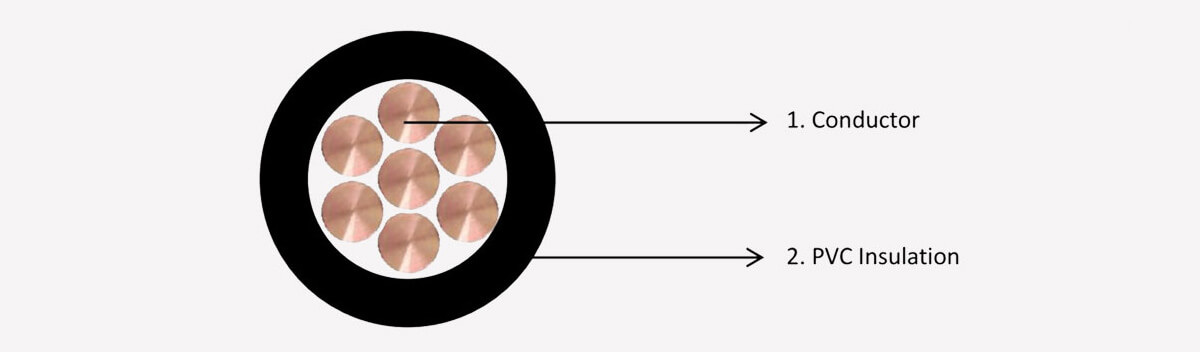

Construction
☉〉 Solid cu /PVC Insulation(H07V-U)
☉〉 Stranded cu /PVC Insulation (H07V-R)
☉〉 Flexible cu /PVC Insulation (H07V-K)
Features
☉〉 Rated voltage: 450/750V
☉〉 Stranded conductor provides good flexibility for bending and installation
☉〉 Flame-retardant to IEC/EN 60332-1-2
☉〉 Suitable for fixed protected installation in conduits, on trays, or under plaster
☉〉 Temperature range: -30°C to +80°C (fixed installation)
Product Data Sheet
| 450/750V Solid Cu /PVC Insulation (H07V-U) | |||||
| Size | Cu conductor | PVC Insulation | Approx. Overall Dia. | Approx. Weight | |
| mm2 | Str. No. | Dia. | Nominal Thickness | ||
| No.s | mm | mm | mm | kg/km | |
| 0.5 | 1 | 0.8 | 0.6 | 2 | 8 |
| 0.75 | 1 | 0.98 | 0.6 | 2.2 | 12 |
| 1 | 1 | 1.13 | 0.6 | 2.3 | 14 |
| 1.5 | 1 | 1.38 | 0.7 | 2.8 | 20 |
| 2.5 | 1 | 1.78 | 0.8 | 3.4 | 32 |
| 4 | 1 | 2.26 | 0.8 | 3.9 | 48 |
| 6 | 1 | 2.76 | 0.8 | 4.4 | 67 |
| 10 | 1 | 3.57 | 1 | 5.6 | 111 |
| 450/750V Stranded Cu /PVC Insulation (H07V-R) | |||||
| Size | Cu conductor | PVC Insulation | Approx. Overall Dia. | Approx. Weight | |
| Str. No. | Dia. | Nominal Thickness | |||
| mm2 | No.s | mm | mm | mm | kg/km |
| 1.5 | 7 | 1.56 | 0.7 | 3 | 21 |
| 2.5 | 7 | 2.01 | 0.8 | 3.6 | 33 |
| 4 | 7 | 2.55 | 0.8 | 4.2 | 49 |
| 6 | 7 | 3.12 | 0.8 | 4.7 | 68 |
| 10 | 7 | 4.05 | 1 | 6.1 | 114 |
| 16 | 7 | 5.13 | 1 | 7.1 | 175 |
| 450/750V Flexible Cu /PVC Insulation (H07V-k) | |||
| Nomina section | Core structure | Max.dia(mm) | Reference weight(kg/km) |
| (mm2) | No./dia(mm) | ||
| 1.5 | 30/0.25 | 3.5 | 21.4 |
| 2.5 | 49/0.25 | 4.2 | 54.5 |
| 4 | 56/0.2 | 4.8 | 51.8 |
| 6 | 84/0.3 | 6.4 | 747.1 |
| 10 | 84/0.4 | 8 | 113.9 |
