H1Z2Z2-K solar cable. 1.5kV DC (max 1.8kV), -40°C to +120°C, 250°C/5s short-circuit. Tinned copper, XLPO LSHF. Bending 5D. Up to 240mm².
Application
EN 50618 H1Z2Z2-K solar cable (1.5kV DC, max 1.8kV) for photovoltaic system DC side: panel interconnections, string combiner boxes, and inverter connections. Class 5 tinned copper, XLPO electron-beam cross-linked compound, halogen-free low-smoke. -40°C to +120°C continuous, 250°C short-circuit (5s). Bending radius 5D. UV/ozone/acid/alkali/heat resistant. Flame retardant per IEC 60332-1-2. 25+ year service life.
Core Strengths
PV systems demand higher ampacity and longer string lengths. Our H1Z2Z2-K offers 1.5kV DC (max 1.8kV), -40°C to +120°C, 250°C/5s short-circuit. Tinned copper, XLPO LSHF. Bending 5D. 25+ years. TÜV 2 PfG 1169/EN 50618. Sizes up to 240mm².
Standard
EN 50618 EN 60228,EN 60811-2-1
EN 60811-1-4,HD 605/A1,IEC 60332-1-2
EN 50395,EN 50396

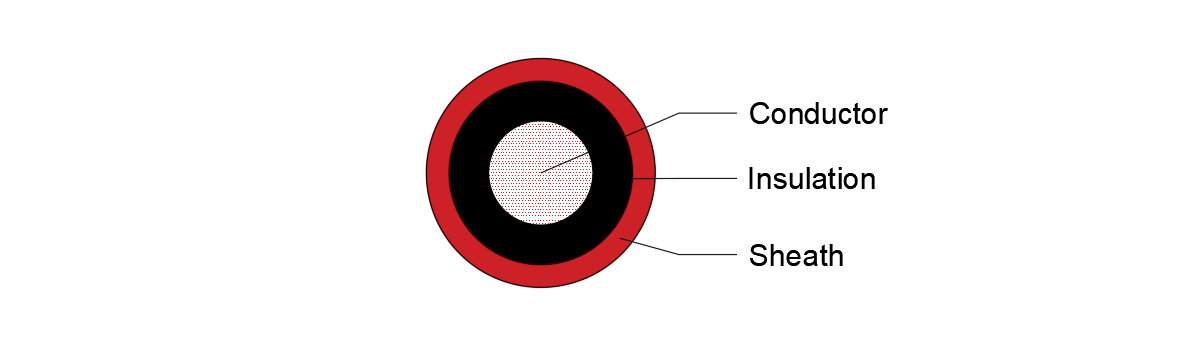

Construction
☉〉 Conductor: Class 5 tinned annealed stranded copper
☉〉 Insulation: XLPO (electron-beam cross-linked, halogen-free)
☉〉 Outer sheath: XLPO (electron-beam cross-linked, halogen-free)
Features
☉〉 Rated 1.5kV DC (max 1.8kV), -40°C to +120°C, 250°C/5s short-circuit
☉〉 Tinned copper, XLPO insulation: UV, ozone, acid & alkali resistant
☉〉 Halogen-free, low smoke, flame retardant per IEC 60332-1-2
☉〉 Min bending radius: 5×OD; design life: 25+ years
☉〉 Cross-section up to 240mm² for high-power systems
☉〉 Meets EN 50618 / TÜV 2 PfG 1169 / IEC 62930
Product Data Sheet
Single Core H1Z2Z2-K
Cross section area | Approx. conductor OD. | Approx. Cable OD. | Approx. Cable wight | Max.Conductor DC Resistance @20℃ | Current Carrying Capacity at 60℃(single cable in air) |
mm2 | mm | mm | Kg/km | Ω/km | A |
1.5 | 1.60 | 4.8 | 35 | 13.7 | 30 |
2.5 | 2.02 | 5.2 | 47 | 8.21 | 41 |
4 | 2.40 | 5.6 | 60 | 5.09 | 55 |
6 | 3.00 | 6.3 | 81 | 3.39 | 70 |
10 | 4.10 | 7.4 | 127 | 1.95 | 98 |
16 | 5.50 | 9.1 | 194 | 1.24 | 132 |
25 | 6.70 | 10.9 | 297 | 0.795 | 176 |
35 | 8.20 | 12.7 | 405 | 0.565 | 218 |
50 | 10.00 | 14.9 | 568 | 0.393 | 276 |
70 | 11.60 | 16.7 | 769 | 0.277 | 347 |
95 | 13.00 | 18.4 | 1014 | 0.21 | 416 |
120 | 14.40 | 20.0 | 1260 | 0.164 | 488 |
150 | 16.20 | 22.5 | 1576 | 0.132 | 566 |
185 | 18.20 | 25.4 | 1957 | 0.108 | 644 |
240 | 20.60 | 28.7 | 2531 | 0.0817 | 775 |
Twin Cable H1Z2Z2-K
No. Cores&Cross section area | Approx. conductor OD. | Approx. Cable OD. | Approx. Cable wight | Max.Conductor DC Resistance @20℃ | Current Carrying Capacity at 60℃ |
mm2 | mm | mm | Kg/km | Ω/km | A |
2x4 | 2.59 | 5.7x11.7 | 124 | 5.09 | 44 |
2x6 | 3.17 | 6.4x13.1 | 169 | 3.39 | 57 |
