IEC60502-1KV/3KV power cable

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Standard

IEC60502，SANS 1507，BS 5467，AS-NZS 5000.1，NF C 32-322， NF C33-210，CSA C22.2, ICEA S-95-658

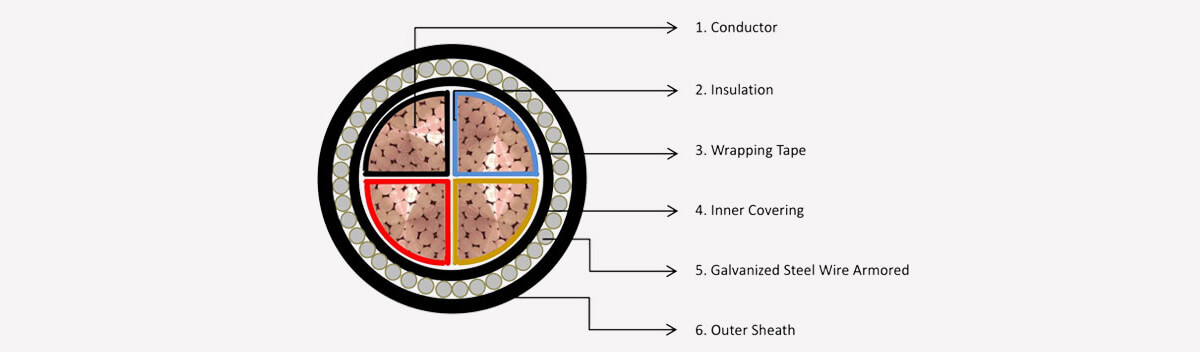

Construction

Copper or Aluminium Conductor/PVC or XLPE Insulation/Armored layer/Outer Sheath Power Cables

Features

Product Data Sheet

IEC60502-1KV/3KV power cable
Conductor Size	Stranding No.		Approx. conductor Dia.	Insulation Nominal Thickness		Armor Dimension		Max. Conductor D.C. Resistance @ 20℃
	Stranding No.			Insulation Nominal Thickness		（Optional）		Max. Conductor D.C. Resistance @ 20℃
	Cu	Al		XLPE	PVC	Al/Steel Tape	Al/Steel Wire	Cu	Al
mm2	No.s	No.s	mm	mm	mm	mm	mm	Ω/km	Ω/km
1.5	1 or 7	1 or 7	1.37/1.55	0.7	0.8	≥0.2	≥0.8	12.1	--
2.5	1 or 7	1 or 7	1.75/2.01	0.7	0.8	≥0.2	≥0.8	7.41	--
4	7	7	2.52	0.7	1	≥0.2	≥0.8	4.61	--
6	7	7	3.09	0.7	1	≥0.2	≥0.8	3.08	--
10	7	7	3.99	0.7	1	≥0.2	≥0.8	1.83	3.08
16	7	7	5.04	0.7	1	≥0.2	≥1.25	1.15	1.91
25	≥6	≥6	5.6-6.5	0.9	1.2	≥0.2	≥1.25	0.727	1.2
35	≥6	≥6	6.6-7.5	0.9	1.2	≥0.2	≥1.25	0.524	0.868
50	≥6	≥6	7.7-8.6	1	1.4	≥0.2	≥1.25	0.387	0.641
70	≥12	≥12	9.3-10.2	1.1	1.4	≥0.2	≥1.6	0.268	0.443
95	≥15	≥15	11.0-12.0	1.1	1.6	≥0.2	≥1.6	0.193	0.32
120	≥18	≥15	12.3-13.5	1.2	1.6	≥0.3	≥1.6	0.153	0.253
150	≥18	≥15	13.7-15.0	1.4	1.8	≥0.3	≥2.0	0.124	0.206
185	≥30	≥30	15.3-16.8	1.6	2	≥0.3	≥2.0	0.0991	0.164
240	≥34	≥30	17.6-19.2	1.7	2.2	≥0.3	≥2.0	0.0754	0.125
300	≥34	≥30	19.7-21.6	1.8	2.4	≥0.3	≥2.0	0.0601	0.1
400	≥53	≥53	22.3-24.6	2	2.6	≥0.3	≥2.0	0.047	0.0778
500	≥53	≥53	25.3-27.6	2.2	2.8	≥0.3	≥2.5	0.0368	0.0605
630	≥53	≥53	28.7-32.5	2.4	2.8	≥0.3	≥2.5	0.0283	0.0469
