Vinyl-insulated ring/fork terminals, UL486A. Copper alloy, 105°C. Funnel entry, vibration resistant. For wet locations, direct burial.
Application

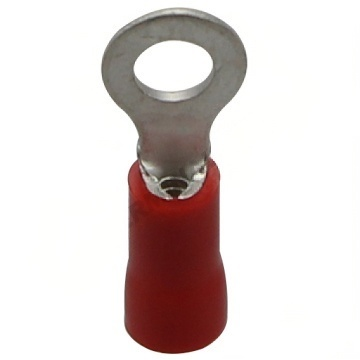

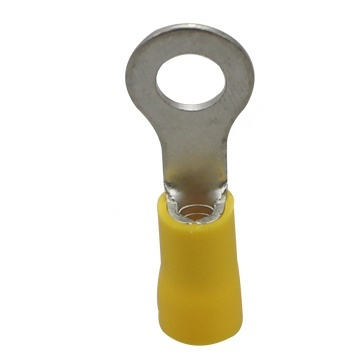

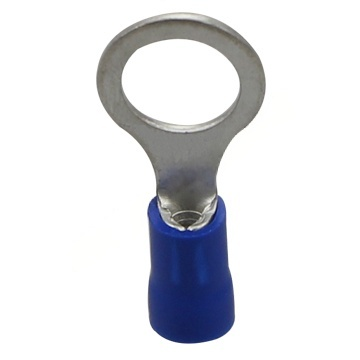

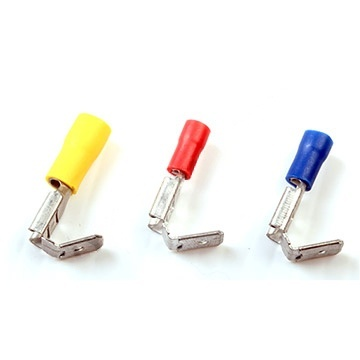

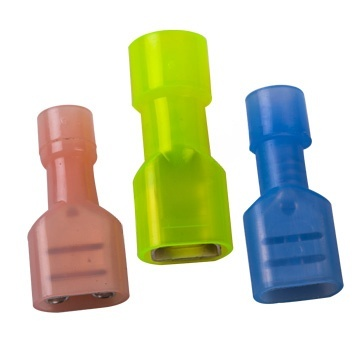

Vinyl-insulated ring/fork terminals (600V) per UL 486A for electrical panels, industrial machinery, water system underground connections, submersible pumps, and irrigation equipment. 105°C max copper alloy, funnel entry, vibration resistant. Ring tongue, flame-retardant insulation. Suitable for wet locations, direct burial.
Core Strengths
Uninsulated terminals cause shorts in tight control panels and wet locations. Our UL 486A insulated terminals have vinyl color-coded, funnel entry, copper alloy 105°C.
Standard
Construction
☉〉 Conductor: High-conductivity copper (tin-plated for corrosion resistance)
☉〉 Insulation: PVC or nylon, color-coded for wire size identification
☉〉 Barrel: Seamless or brazed, designed for crimp connection
Features
☉〉 Insulated barrel prevents short circuits and electrical flashover

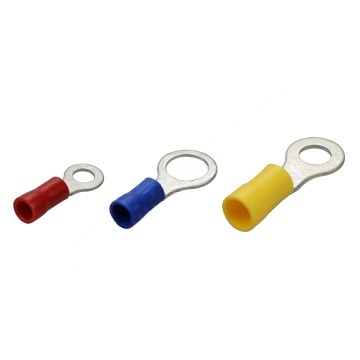

☉〉 Color-coded insulation matches standard wire gauge ranges (e.g., red, blue, yellow)
☉〉 Funnel entry design simplifies wire insertion
☉〉 Temperature range: -40°C to +105°C (PVC) or up to +150°C (nylon)
☉〉 Suitable for automotive, control panels, and general electrical wiring
Product Data Sheet
| ITEM NO | WIRE RANGE | DIMENSIONS | COLOR | ||||||
| AWG/MCM | mm2 | φE | φD | φd | W | B | L | ||
| VF1.25-3 | 22-16 | 0.25-1.65 | 3.7 | 4 | 1.7 | 5.5 | 10.4 | 17.3 | RED |
| VF1.25-3A | 3.2 | 4 | 1.7 | 5.5 | 10.4 | 17.3 | |||
| VF1.25-3M | 3.7 | 4 | 1.7 | 6.6 | 10.4 | 20.3 | |||
| VF1.25-4 | 4.3 | 4 | 1.7 | 8 | 10.4 | 21.8 | |||
| VF1.25-4M | 4.3 | 4 | 1.7 | 6.6 | 10.4 | 20.3 | |||
| VF1.25-5 | 5.3 | 4 | 1.7 | 8 | 10.4 | 21.8 | |||
| VF1.25-6 | 6.4 | 4 | 1.7 | 11.6 | 10.4 | 27.5 | |||
| VF1.25-8 | 8.4 | 4 | 1.7 | 11.6 | 10.4 | 27.5 | |||
| VF1.25-10 | 10.5 | 4 | 1.7 | 13.6 | 10.4 | 31.8 | |||
| VF2-3 | 16-14 | 1.04-2.63 | 3.7 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 | BLUE |
| VF2-3A | 3.2 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 | |||
| VF2-3M | 3.7 | 4.6 | 2.3 | 6.6 | 10.4 | 19.8 | |||
| VF2-4 | 4.3 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 | |||
| VF2-4M | 4.3 | 4.6 | 2.3 | 6.6 | 10.4 | 19.8 | |||
| VF2-5 | 5.3 | 4.6 | 2.3 | 9.5 | 10.4 | 22.3 | |||
| VF2-6 | 6.4 | 4.6 | 2.3 | 12 | 10.4 | 27.3 | |||
| VF2-8 | 8.4 | 4.6 | 2.3 | 12 | 10.4 | 27.3 | |||
| VF2-10 | 10.5 | 4.6 | 2.3 | 13.6 | 10.4 | 30.8 | |||
| VF3.5-4 | 12-10 | 2.63-4.60 | 4.3 | 5.6 | 3.2 | 9.5 | 13.3 | 26.3 |  YELLOW |
| VF3.5-5 | 5.3 | 5.6 | 3.2 | 9.5 | 13.3 | 26.3 | |||
| VF3.5-6 | 6.4 | 5.6 | 3.2 | 12 | 13.3 | 27.7 | |||
| VF3.5-8 | 8.4 | 5.6 | 3.2 | 12 | 13.3 | 27.7 | |||
| VF5.5-3 | 12-10 | 4.60-6.64 | 3.7 | 6.6 | 3.5 | 9.5 | 13.5 | 26.5 |  YELLOW |
| VF5.5-4 | 4.3 | 6.6 | 3.5 | 9.5 | 13.5 | 26.5 | |||
| VF5.5-5 | 5.3 | 6.6 | 3.5 | 9.5 | 13.5 | 26.5 | |||
| VF5.5-6 | 6.4 | 6.6 | 3.5 | 12 | 13.5 | 32.5 | |||
| VF5.5-6S | 6.4 | 6.6 | 3.5 | 12 | 13.5 | 29.2 | |||
| VF5.5-8 | 8.4 | 6.6 | 3.5 | 15 | 13.5 | 34.5 | |||
| VF5.5-10 | 10.5 | 6.6 | 3.5 | 15 | 13.5 | 34.5 | |||
| VF8-3 | 8 | 6.64-10.52 | 3.7 | 8.3 | 4.5 | 10 | 17.5 | 30 |  RED |
| VF8-4 | 4.3 | 8.3 | 4.5 | 10 | 17.5 | 30 | |||
| VF8-5 | 5.3 | 8.3 | 4.5 | 10 | 17.5 | 30 | |||
| VF8-6 | 6.4 | 8.3 | 4.5 | 11 | 17.5 | 31.5 | |||
| VF8-8 | 8.4 | 8.3 | 4.5 | 14 | 17.5 | 36 | |||
| VF8-10 | 10.5 | 8.3 | 4.5 | 18 | 17.5 | 39.5 | |||
| VF14-5 | 6 | 10.52-16.78 | 5.3 | 9.7 | 5.9 | 11 | 23 | 37.5 |  RED |
| VF14-6 | 6.4 | 9.7 | 5.9 | 11 | 23 | 37.5 | |||
| VF14-8 | 8.4 | 9.7 | 5.9 | 14 | 23 | 43 | |||
| VF14-10 | 10.5 | 9.7 | 5.9 | 18 | 23 | 45 | |||
| VF14-12 | 13 | 9.7 | 5.9 | 18 | 23 | 45 | |||
