Instrument cable

UL/CSA instrument tray cable. Overall foil + braid shield, 100% EMI immunity. Low capacitance. For 4-20mA, RTD, thermocouple.

Details
Images
Related Product
Inquiry

Application

UL/CSA instrument tray cable per ICEA S-73-532, rated 300V/600V, for analog signal transmission (4-20mA), low level DC signals, RTD, thermocouple, and control circuits in industrial automation, DCS/PLC panels, and switchgear. Overall foil or individual pair + overall braid shield provides 100% isolation from EMIRFI. Low capacitance design preserves signal fidelity. Suitable for cable tray, conduit, direct burial (dry). Temp -30°C to +90°C. Individual pair shielding reduces crosstalk. Drain wire for easy grounding. PVC (75°C) or XLPE (90°C) insulation. Shielded, flame retardant.

Core Strengths

Unshielded twisted pairs in plant-floor instrumentation pick up noise, corrupting 4–20mA signals. Our ICEA instrument cable with overall foil and braid shield provides 100% EMI immunity, low capacitance preserves signal integrity. Drain wire easier earthing. PVC or XLPE 90°C.

Standard

BS5308, IEC60502

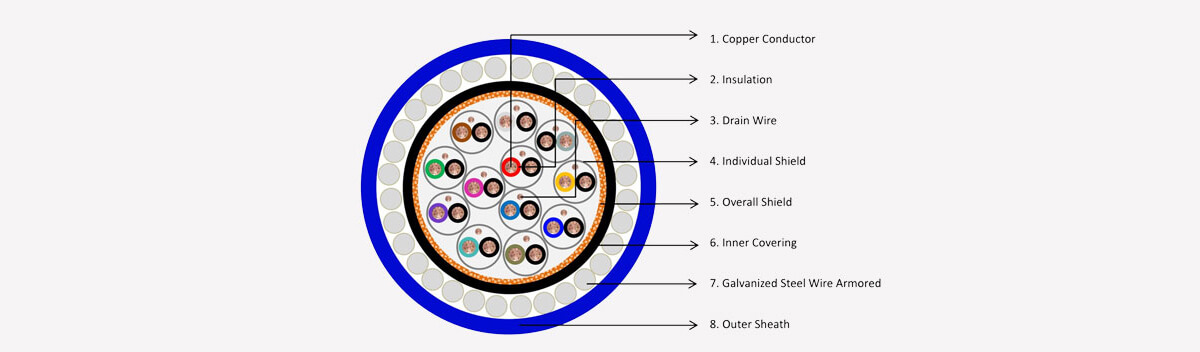

Construction

☉〉 Conductor: Copper (stranded)

☉〉 Insulation: PVC or XLPE

☉〉 Drain wire: Tinned copper

☉〉 Individual shield: Aluminum/polyester tape or copper tape (per pair/triad)

☉〉 Overall shield: Copper tape or braid

☉〉 Inner covering: PVC or binder tape

☉〉 Armor: Galvanized steel wire

☉〉 Outer sheath: PVC or LSZH

Features

☉〉 Dual shielding (individual + overall) provides superior EMI/RFI protection

☉〉 Galvanized steel wire armor offers high mechanical strength and crush resistance

☉〉 Drain wire simplifies shield termination and grounding

☉〉 Suitable for harsh industrial environments (direct burial, high physical stress)

☉〉 Ideal for analog signals, RTD, thermocouple, and communication lines

Product Data Sheet

Product Data Sheet
No. of Pairs	Conductor Size	Approx. Conductor Dia.	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Dia. Of Steel Wire Armor	Nominal Outer Sheath Thickness	Approx. Overall Dia.	Approx. Weight
No. of Pairs	mm2	mm	mm	mm	mm	mm	Mm	kg/km
1	1.5	1.56	0.7	1	0.9	1.4	11	260
1	2.5	2.01	0.7	1	0.9	1.4	11.6	300
2	1.5	1.56	0.7	1	1.2	1.5	15.6	542
2	2.5	2.01	0.7	1	1.2	1.6	17.22	647
4	1.5	1.56	0.7	1	1.2	1.6	17.2	717
4	2.5	2.01	0.7	1	1.6	1.6	19.63	1008
6	1.5	1.56	0.7	1	1.6	1.7	20.8	1088
6	2.5	2.01	0.7	1	1.6	1.7	22.83	1314
8	1.5	1.56	0.7	1	1.6	1.7	21.47	1240
8	2.5	2.01	0.7	1	1.6	1.8	23.79	1506
10	1.5	1.56	0.7	1	1.6	1.8	25.44	1584
10	2.5	2.01	0.7	1	1.6	1.9	28.39	1953
12	1.5	1.56	0.7	1	1.6	1.9	26.32	1722
12	2.5	2.01	0.7	1	1.6	2	29.41	2134
14	1.5	1.56	0.7	1	1.6	1.9	27.5	1906
14	2.5	2.01	0.7	1	2	2	31.6	2602
16	1.5	1.56	0.7	1	1.6	1.9	28.82	2112
16	2.5	2.01	0.7	1	2	2.1	33.32	2901
20	1.5	1.56	0.7	1.2	2	2.1	32.33	2756
20	2.5	2.01	0.7	1.2	2	2.2	36.18	3429
24	1.5	1.56	0.7	1.2	2	2.2	36.22	3310
24	2.5	2.01	0.7	1.2	2	2.3	40.63	4162
30	1.5	1.56	0.7	1.2	2	2.3	38.33	3857
30	2.5	2.01	0.7	1.2	2.5	2.4	44.04	5243
