Multi-Core PVC Insulated Electric Wire
Multi-Core PVC Insulated Electric Wire
Application
Multi-core PVC insulated cable (300/500V to 0.6/1kV) for fixed wiring in damp premises where mechanical stresses not experienced. Installation in conduits, on/under plaster, switching and distribution panels. Conforms to BS 6004/IEC 60227/HD 21.4. PVC insulation (TI1), stranded copper conductors. Max operating temp: 70°C.
Core Strengths
Loose multicore wiring in switchboards and conduits can cause arcing and short circuits. Our multi-core PVC cable offers secure bundling, flame-retardant PVC jacket, and flexible conductor stranding for easier termination.
Standard
IEC227, BS6004, ANSI

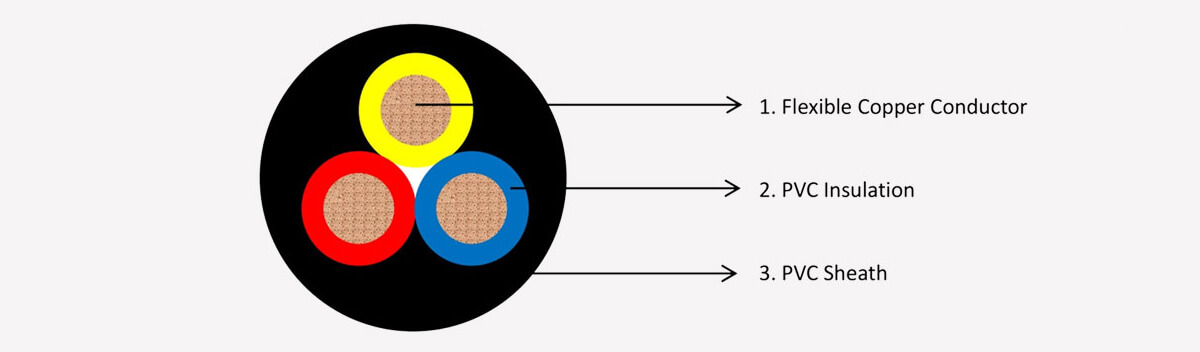

Construction
Conductor: Flexible copper (stranded)
Insulation: PVC (per core)
Sheath: PVC (outer, overall covering)
Features
Flexible and easy to route in tight spaces
PVC insulation provides good electrical and mechanical protection
Outer PVC sheath adds durability and abrasion resistance
Flame-retardant and suitable for control circuits, appliances, and internal wiring
Product Data Sheet
| 450/750V , 2Core, 3Core Flat Electric Wire |
| Core No. | Conductor Size | Cu conductor | Insulation | Outer sheath | Overall Dimension | Approx. Weight |
| mm2 | Str. No. | Dia. | Nominal Thickness | Thickness | Width | Height | kg/km |
| 2 | 1.5 | 1 | 1.38 | 0.7 | 0.9 | 7.4 | 4.6 | 63 |
| 2 | 2.5 | 1 | 1.78 | 0.8 | 1 | 8.8 | 5.4 | 94 |
| 2 | 4 | 7 | 2.55 | 0.8 | 1 | 10.3 | 6.2 | 132 |
| 2 | 6 | 7 | 3.12 | 0.8 | 1.1 | 11.6 | 6.9 | 181 |
| 2 | 10 | 7 | 4.05 | 1 | 1.2 | 14.5 | 8.5 | 289 |
| 2 | 16 | 7 | 5.1 | 1 | 1.2 | 16.8 | 9.6 | 412 |
| 3 | 1.5 | 1 | 1.38 | 0.7 | 0.9 | 10.1 | 4.6 | 97 |
| 3 | 2.5 | 1 | 1.78 | 0.8 | 1 | 12.1 | 5.4 | 149 |
| 3 | 4 | 7 | 2.55 | 0.8 | 1.1 | 14.7 | 6.4 | 220 |
| 3 | 6 | 7 | 3.12 | 0.8 | 1.1 | 16.4 | 6.9 | 298 |
| 3 | 10 | 7 | 4.05 | 1 | 1.2 | 20.6 | 8.5 | 486 |
| 450/750V , 2Core,3Core, 4Core，5Core Round Electric Wire |
| Core No. | Conductor Size | Cu Conductor | Insulation Nominal Thickness | Outer Sheath Thickness | Approx. Overall Dia. | Approx. Weight |
| No.s | mm2 | No.s | mm | mm | mm | mm | kg/km |
| 2 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 9.4 | 89 |
| 2 | 2.5 | 7 | 2.01 | 0.8 | 1.2 | 10.7 | 121 |
| 2 | 4 | 7 | 2.55 | 0.8 | 1.2 | 11.8 | 158 |
| 2 | 6 | 7 | 3.12 | 0.8 | 1.2 | 12.9 | 205 |
| 2 | 10 | 7 | 4.05 | 1 | 1.4 | 16 | 327 |
| 2 | 16 | 7 | 5.13 | 1 | 1.4 | 18.2 | 460 |
| 2 | 25 | 7 | 6.39 | 1 | 1.4 | 20.7 | 648 |
| 3 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 9.9 | 113 |
| 3 | 2.5 | 7 | 2.01 | 0.8 | 1.2 | 11.3 | 157 |
| 3 | 4 | 7 | 2.55 | 0.8 | 1.2 | 12.5 | 211 |
| 3 | 6 | 7 | 3.12 | 0.8 | 1.4 | 14.1 | 290 |
| 3 | 10 | 7 | 4.05 | 1 | 1.4 | 17 | 447 |
| 3 | 16 | 7 | 5.13 | 1 | 1.4 | 19.3 | 641 |
| 3 | 25 | 7 | 6.39 | 1 | 1.6 | 22.5 | 936 |
| 4 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 10.7 | 138 |
| 4 | 2.5 | 7 | 2.01 | 0.8 | 1.2 | 12.2 | 196 |
| 4 | 4 | 7 | 2.55 | 0.8 | 1.4 | 14 | 278 |
| 4 | 6 | 7 | 3.12 | 0.8 | 1.4 | 15.3 | 367 |
| 4 | 10 | 7 | 4.05 | 1 | 1.4 | 18.6 | 572 |
| 4 | 16 | 7 | 5.13 | 1 | 1.4 | 21.2 | 827 |
| 4 | 25 | 7 | 6.39 | 1 | 1.6 | 24.7 | 1212 |
| 5 | 1.5 | 7 | 1.56 | 0.7 | 1.2 | 11.6 | 165 |
| 5 | 2.5 | 7 | 2.01 | 0.8 | 1.2 | 13.4 | 235 |
| 5 | 4 | 7 | 2.55 | 0.8 | 1.4 | 15.2 | 336 |
| 5 | 6 | 7 | 3.12 | 0.8 | 1.4 | 16.8 | 445 |
| 5 | 10 | 7 | 4.05 | 1 | 1.4 | 20.4 | 699 |
| 5 | 16 | 7 | 5.13 | 1 | 1.6 | 23.8 | 1037 |
| 5 | 25 | 7 | 6.39 | 1 | 1.6 | 27.2 | 1490 |
