PV1-F solar cable withstands -40°C to +120°C, UV/ozone/acid/alkali. Tinned copper, XLPO, halogen-free LSHF. 1.5kV DC, 25-year life.
Application
EN 50618 / IEC 62930 PV1-F solar cable (1.5kV DC) for photovoltaic system DC side connections: panel-to-panel, string-to-inverter, and DC combiner box wiring. Class 5 tinned copper, XLPO electron-beam cross-linked insulation/sheath, halogen-free low-smoke (LSHF). Operating temp: -40°C to +120°C, short-circuit 250°C/5s. UV/ozone/acid/alkali resistant. Life: 25+ years. Flame retardant.
Core Strengths
Ordinary cables degrade under UV and temperature cycling. Our PV1-F withstands -40°C to +120°C, UV/ozone/acid/alkali. Tinned copper, XLPO insulation, halogen-free LSHF. 1.5kV DC, 25-year life. TÜV certified per EN 50618/IEC 62930.
Standard
EN 60228,EN 60811-2-1
EN 60811-1-4,HD 605/A1,IEC 60332-1-2
EN 50395,EN 50396

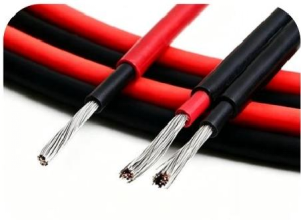

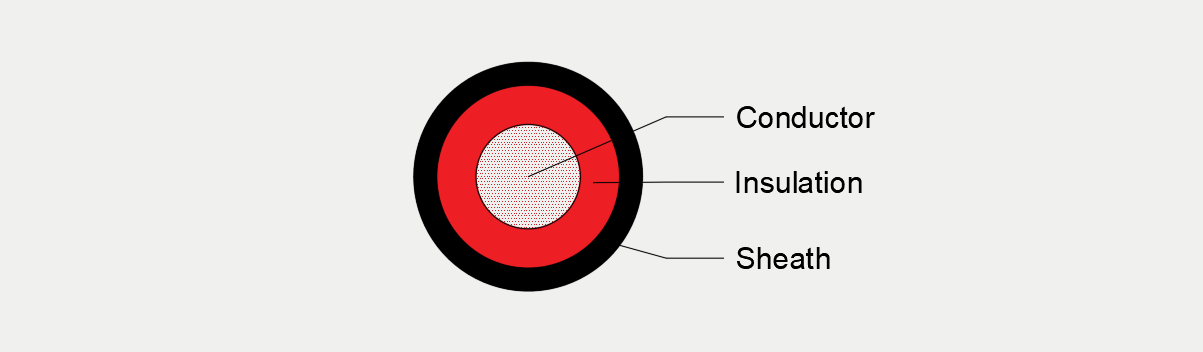

Construction
☉〉 Conductor: Class 5 tinned annealed stranded copper
☉〉 Insulation: XLPO (electron-beam cross-linked, halogen-free)
☉〉 Outer sheath: XLPO (electron-beam cross-linked, halogen-free)
Features
☉〉 Rated 1.5kV DC, -40°C to +120°C continuous, 250°C/5s short-circuit
☉〉 Tinned copper resists salt spray & moisture corrosion
☉〉 XLPO insulation: UV, ozone, acid & alkali resistant
☉〉 Halogen-free, low smoke, flame retardant per IEC 60332-1-2
☉〉 Min bending radius: 5×OD; design life: 25+ years
☉〉 Meets EN 50618 / IEC 62930 / EN 60228
Product Data Sheet
Single Core PV1-F
Cross section area | Approx. conductor OD. | Approx. Cable OD. | Approx. Cable wight | Max.Conductor DC Resistance @20℃ | Current Carrying Capacity at 60℃ (single cable in air) |
mm2 | mm | mm | Kg/km | Ω/km | A |
1.5 | 1.60 | 4.6 | 31 | 13.7 | 30 |
2.5 | 2.02 | 5.1 | 42 | 8.21 | 41 |
4 | 2.59 | 5.9 | 61 | 5.09 | 55 |
6 | 3.17 | 6.6 | 83 | 3.39 | 70 |
10 | 4.10 | 7.6 | 125 | 195 | 98 |
16 | 5.50 | 9.2 | 188 | 1.24 | 132 |
25 | 6.70 | 10.6 | 280 | 0.795 | 176 |
35 | 8.20 | 12.2 | 380 | 0.565 | 218 |
Twin Cable PV1-F
Cross section area | Approx. conductor OD. | Approx. Cable OD. | Approx. Cable wight | Max.Conductor DC Resistance @20℃ | Current Carrying Capacity at 60℃ |
mm2 | mm | mm | Kg/km | Ω/km | A |
2x4 | 2.59 | 5.7x11.7 | 124 | 5.09 | 44 |
2x6 | 3.17 | 6.4x13.1 | 169 | 3.39 | 57 |
