SWA galvanized steel wire armour. Strongest protection withstands high pulling loads and severe impacts.
Application
0.6/1kV SWA armored power cables with galvanized steel wire armor. The strongest option for mechanical protection, capable of withstanding high pulling loads and impacts during direct burial. Perfect for mains power distribution in industrial plants and outdoor areas at risk of physical damage.
Core Strengths
Your project demands the strongest cable on the market. Our SWA galvanized steel wire armor can withstand high pulling loads and severe impacts. Armor rated for toughest conditions. Order now.
Standard
IEC60502，SANS 1507，BS 5467，AS-NZS 5000.1，NF C 32-322， NF C33-210，CSA C22.2, ICEA S-95-658

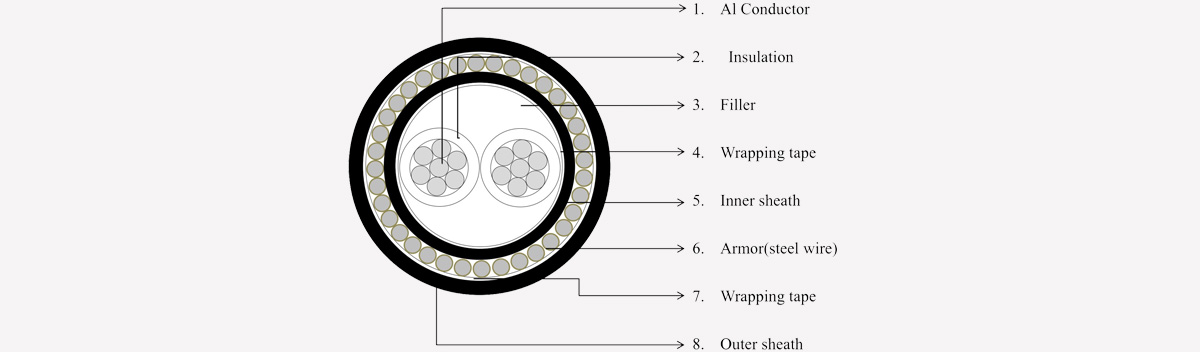

Construction
☉〉 Conductor: Aluminum (Al), stranded
☉〉 Insulation: XLPE (cross-linked polyethylene)
☉〉 Filler: Polypropylene (PP) or PVC filler
☉〉 Wrapping tape: Binding tape over cores
☉〉 Inner sheath: PVC or PE
☉〉 Armor: Galvanized steel wire (SWA)
☉〉 Wrapping tape: Binding tape over armor
☉〉 Outer sheath: PVC (type ST2)
Features
☉〉 0.6/1kV rated voltage – for fixed power distribution
☉〉 Aluminum conductor – lightweight and cost-effective
☉〉 XLPE insulation – 90°C continuous, 250°C short-circuit
☉〉 Steel wire armor (SWA) – high tensile strength and crush resistance
☉〉 PVC outer sheath – moisture, chemical & UV resistant
☉〉 Flame retardant – complies with IEC 60332-1
☉〉 Ideal for direct burial, underground, or pulling through ducts
☉〉 100% factory tested to IEC 60502-1
Product Data Sheet
| 0.61KV SWA ARMORED POWER CABLE | ||||||
| Size | Cable dia. | Cable weight | ||||
| None- | Steel wire armored | None-armored | Steel wire armored | |||
| armored | CU | AL | CU | AL | ||
| mm2 | mm | kg/km | ||||
| 1.5 | 10.5 | 14.9 | 128 | 109 | 355 | 336 |
| 2.5 | 11.4 | 15.8 | 160 | 128 | 404 | 372 |
| 4 | 13.2 | 18.5 | 219 | 170 | 616 | 567 |
| 6 | 14.4 | 19.7 | 275 | 201 | 709 | 636 |
| 10 | 16.2 | 21.5 | 378 | 255 | 863 | 740 |
| 16 | 18.3 | 23.6 | 523 | 327 | 1070 | 873 |
| 25 | 21 | 27 | 744 | 439 | 1526 | 1221 |
| 35 | 23 | 29 | 955 | 533 | 1814 | 1392 |
| 50 | 21.7 | 27.9 | 1203 | 599 | 2018 | 1414 |
| 70 | 24.5 | 31.7 | 1618 | 773 | 2732 | 1887 |
| 95 | 27.9 | 35.5 | 2161 | 1014 | 3485 | 2337 |
| 120 | 30.1 | 37.7 | 2660 | 1207 | 4080 | 2627 |
| 150 | 34.2 | 43 | 3321 | 1510 | 5281 | 3470 |
| 185 | 36.8 | 45.8 | 4055 | 1816 | 6181 | 3942 |
| 240 | 41.2 | 50.2 | 5219 | 2313 | 7589 | 4683 |
| 300 | 45.3 | 54.9 | 6459 | 2817 | 9143 | 5501 |
