600V Service Drop Cable
Application
The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃
Standard
IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474
Construction

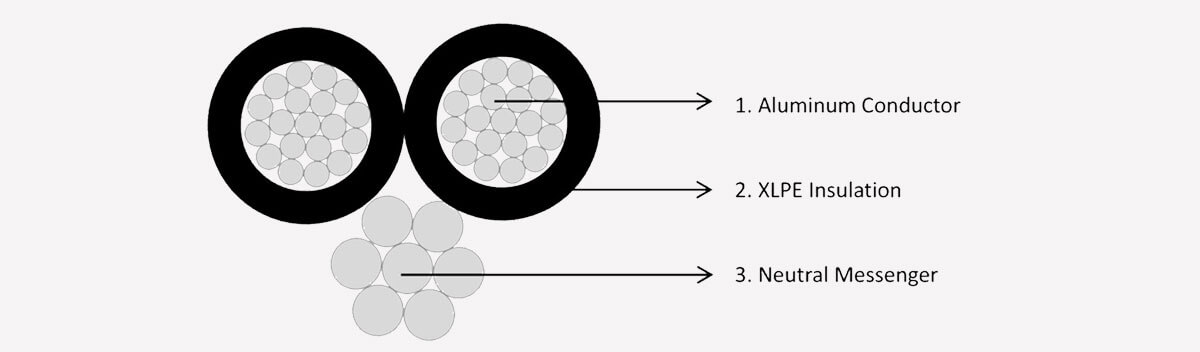

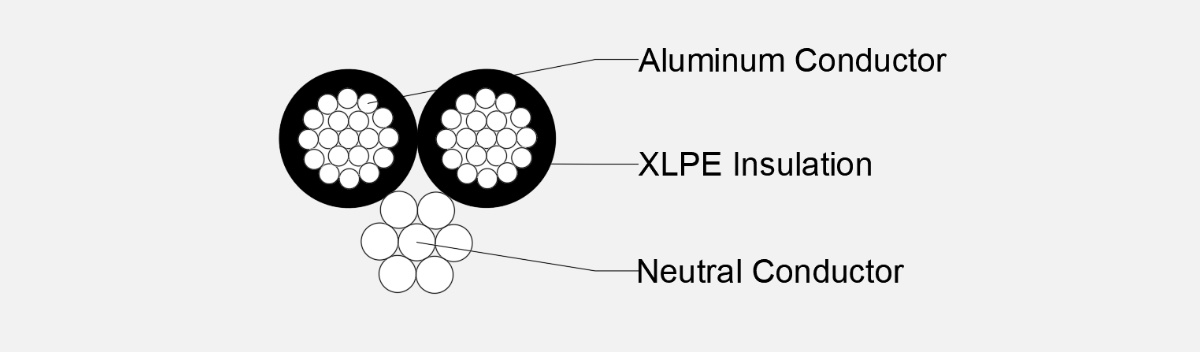

Al/Al Alloy/Cu Conductor, XLPE/PE/PVC Insulation
Features
Conveniences and Safety
Product Data Sheet
| AAAC Conductor Supported Service Drop Cable- ICEA S-76-474 | |||||||||||
| Code Name | Size | Al Phase Core | AAAC Conductor | Rated Strength | Approx. Overall Dia. | Approx. Weight | |||||
| Cross-section Area | Str. | Dia. | Insulation Nominal | Cross-section Area | Stranding No. | Dia. | |||||
| No. | Thickness | ||||||||||
| AWG/MCM | mm2 | No.s | mm | mm | mm2 | No.s | mm | KN | mm | kg/km | |
| Duplex | |||||||||||
| Chihuahua | 1X6AWG+6AWG | 13.3 | 1 | 4.11 | 1.14 | 15.5 | 7 | 5.04 | 4.93 | 11.43 | 96 |
| Vizsla | 1X6AWG+6AWG | 13.3 | 7 | 4.65 | 1.14 | 15.5 | 7 | 5.04 | 4.93 | 11.97 | 98 |
| Harrier | 1X4AWG+4AWG | 21.15 | 1 | 5.19 | 1.14 | 24.67 | 7 | 6.36 | 7.82 | 13.83 | 146 |
| Whippet | 1X4AWG+4AWG | 21.15 | 7 | 5.7 | 1.14 | 24.67 | 7 | 6.36 | 7.82 | 14.34 | 148 |
| Schnauzer | 1X2AWG+2AWG | 33.62 | 7 | 7.2 | 1.14 | 39.25 | 7 | 8.02 | 12.45 | 17.5 | 226 |
| Heeler | 1X1/0AWG+1/0AWG | 53.49 | 19 | 9.2 | 1.52 | 62.48 | 7 | 10.1 | 19.83 | 22.35 | 364 |
| Triplex | |||||||||||
| Hippa | 2X6AWG+30.58MCM | 13.3 | 7 | 4.66 | 1.14 | 15.5 | 7 | 5.04 | 4.93 | 13.58 | 154 |
| Bamacle | 2X4AWG+48.69MCM | 21.15 | 7 | 5.7 | 1.14 | 24.67 | 7 | 6.36 | 7.82 | 16.03 | 230 |
| Shrimp | 2X2AWG+77.47MCM | 33.62 | 7 | 7.2 | 1.14 | 39.25 | 7 | 8.01 | 12.45 | 19.36 | 349 |
| Gammarus | 2X1/0AWG+123.3MCM | 53.51 | 7 | 9.2 | 1.52 | 62.48 | 7 | 10.11 | 19.83 | 24.84 | 562 |
| Cyclops | 2X2/0AWG+155.4MCM | 67.44 | 19 | 10.3 | 1.52 | 78.74 | 7 | 11.34 | 23.96 | 27.3 | 693 |
| Flustra | 2X3/0AWG+195.7MCM | 85.03 | 19 | 11.6 | 1.52 | 99.16 | 7 | 12.75 | 30.18 | 30.18 | 858 |
| Lepas | 2X4/0AWG+246.9MCM | 107.22 | 19 | 13 | 1.52 | 125.11 | 7 | 14.31 | 38.05 | 33.31 | 1064 |
| Crab | 2X4AWG+30.58MCM | 21.15 | 7 | 5.7 | 1.14 | 15.5 | 7 | 5.04 | 4.93 | 15.08 | 205 |
| Solaster | 2X2AWG++48.69MCM | 33.62 | 7 | 7.2 | 1.14 | 24.67 | 7 | 6.36 | 7.82 | 18.18 | 309 |
| Sandcrab | 2X1/0AWG+77.47MCM | 53.51 | 7 | 9.2 | 1.52 | 39.25 | 7 | 8.01 | 12.45 | 23.33 | 498 |
| Sipho | 2X2/0AWG+97.65MCM | 67.44 | 19 | 10.3 | 1.52 | 49.48 | 7 | 9 | 15.69 | 25.62 | 613 |
| Fulgar | 2X3/0AWG+123.3MCM | 85.03 | 19 | 11.6 | 1.52 | 62.48 | 7 | 10.11 | 19.83 | 28.28 | 757 |
| Arca | 2X4/0AWG+155.4AWG | 107.22 | 19 | 13 | 1.52 | 78.74 | 7 | 11.34 | 23.96 | 31.18 | 936 |
| QUADRUPLEX | |||||||||||
| French Coach | 3X6AWG+30.58MCM | 13.3 | 7 | 4.66 | 1.14 | 15.5 | 7 | 5.04 | 4.93426 | 15.61 | 211 |
| Arabian | 3X4AWG+48.69MCM | 21.15 | 7 | 5.7 | 1.14 | 24.67 | 7 | 6.36 | 7.82369 | 18.29 | 312 |
| Belgian | 3X2AWG+77.47MCM | 33.62 | 7 | 7.2 | 1.14 | 39.25 | 7 | 8.01 | 12.4468 | 22 | 469 |
| Shetland | 3X1/0AWG+123.3MCM | 53.51 | 19 | 9.2 | 1.52 | 62.48 | 7 | 10.11 | 19.8259 | 28.26 | 757 |
| Thoroughbred | 3X2/0AWG+155.4MCM | 67.44 | 19 | 10.3 | 1.52 | 78.74 | 7 | 11.34 | 23.9601 | 31 | 932 |
| Trotter | 3X3/0AWG+195.7MCM | 85.03 | 19 | 11.6 | 1.52 | 99.16 | 7 | 12.75 | 30.1835 | 34.2 | 1151 |
| Walking | 3X4/0AWG+246.9MCM | 107.2 | 19 | 13 | 1.52 | 125.1 | 7 | 14.31 | 38.0516 | 37.68 | 1424 |
| AAC Conductor Supported Service Drop Cable- ICEA S-76-474 | |||||||||||
| Code Name | Size | Al Phase Core | AAAC Conductor | Rated Strength | Approx. Overall Dia. | Approx. Weight | |||||
| Cross-section Area | Str. No. | Dia. | Insulation Nominal | Cross-section Area | Str. No. | Dia. | |||||
| Thickness | |||||||||||
| AWG/MCM | mm2 | No.s | mm | mm | mm2 | No.s | mm | KN | mm | kg/km | |
| DUPLEX | |||||||||||
| Collie | 1X6+6AWG | 13.3 | 7 | 4.65 | 1.14 | 13.3 | 7 | 4.68 | 2.5 | 11.6 | 92 |
| Spaniel | 1X4+4AWG | 21.15 | 7 | 5.7 | 1.14 | 21.15 | 7 | 5.88 | 3.9 | 13.8 | 138.3 |
| Doberman | 1X2+2AWG | 33.62 | 7 | 7.2 | 1.14 | 33.63 | 7 | 7.41 | 6 | 16.8 | 211.2 |
| Malemute | 1X1/0+1/0AWG | 53.5 | 19 | 9.2 | 1.52 | 53.51 | 7 | 9.36 | 8.8 | 21.6 | 339.9 |
| TRIPLEX | |||||||||||
| Patella | 2X6+6AWG | 13.3 | 7 | 4.65 | 1.14 | 13.3 | 7 | 4.68 | 2.5 | 13.3 | 149 |
| Oyster | 2X4+4AWG | 21.15 | 7 | 5.7 | 1.14 | 21.15 | 7 | 5.88 | 3.9 | 15.6 | 221 |
| Clam | 2X2+2AWG | 33.62 | 7 | 7.2 | 1.14 | 33.63 | 7 | 7.41 | 6 | 18.9 | 334 |
| Murex | 2X1/0+1/0AWG | 53.49 | 7 | 9.2 | 1.52 | 53.51 | 7 | 9.36 | 8.8 | 24.2 | 538 |
| Nassa | 2X2/0+2/0AWG | 67.43 | 7 | 10.3 | 1.52 | 67.44 | 7 | 10.5 | 11.2 | 26.6 | 663 |
| Melita | 2X3/0+3/0AWG | 85.01 | 19 | 11.6 | 1.52 | 85.03 | 7 | 11.79 | 14.7 | 29.4 | 820 |
| Portunus | 2X4/0+4/0AWG | 107.2 | 19 | 13 | 1.52 | 107.2 | 7 | 13.26 | 17.9 | 32.5 | 1017 |
| Nannynose | 2X336.4+336.4MCM | 170.45 | 19 | 16.56 | 2.03 | 170.46 | 19 | 16.9 | 27.3 | 41.7 | 1631 |
| QUADRUPLEX | |||||||||||
| Pinto | 3X4+4AWG | 21.15 | 7 | 5.7 | 1.14 | 21.15 | 7 | 5.88 | 3.9 | 18 | 302 |
| Mustang | 3X2+2AWG | 33.62 | 7 | 7.2 | 1.14 | 33.63 | 7 | 7.41 | 6 | 21.6 | 454 |
| Criollo | 3X1/0+1/0AWG | 53.51 | 19 | 9.2 | 1.52 | 53.51 | 7 | 9.36 | 8.8 | 27.8 | 734 |
| Percheron | 3X2/0+2/0AWG | 67.44 | 19 | 10.3 | 1.52 | 67.44 | 7 | 10.5 | 11.2 | 30.4 | 902 |
| Hanoverian | 3X3/0G+3/0AWG | 85.03 | 19 | 11.6 | 1.52 | 85.03 | 7 | 11.79 | 14.7 | 33.6 | 1113 |
| Oldenburg | 3X4/0+4/0AWG | 107.2 | 19 | 13 | 1.52 | 107.2 | 7 | 13.26 | 17.9 | 37 | 1377 |
| Lippizaner | 3X336.4+336.4MCM | 170.46 | 19 | 16.56 | 2.03 | 170.46 | 19 | 16.9 | 27.3 | 47.5 | 2212 |
| ACSR Conductor Supported Service Drop Cable- ICEA S-76-474 | ||||||||||||||
| Code Name | Size | Al Phase Core | ACSR Messenger | Rated Strength | Approx. Overall Dia. | Approx. Weight | ||||||||
| Cross-section Area | Str. No. | Dia. | Insulation Nominal Thickness | Cross-section Area | Al Wire | St Wire | Stranded Dia. | |||||||
| Str. | Dia. | Str. No. | Dia. | |||||||||||
| No. | ||||||||||||||
| AWG/MCM | mm2 | No.s | mm | mm | mm2 | No.s | mm | No.s | mm | mm | KN | mm | kg/km | |
| DUPLEX | ||||||||||||||
| Shepherd | 1X6+6 | 13.3 | 7 | 4.68 | 1.14 | 13.3 | 6 | 1.68 | 1 | 1.68 | 5.04 | 5.3 | 12 | 109 |
| Terrier | 1X4+4 | 21.1 | 7 | 5.7 | 1.14 | 21.15 | 6 | 2.12 | 1 | 2.12 | 6.36 | 8.3 | 14.34 | 165 |
| Chow | 1X2+2 | 33.6 | 7 | 7.2 | 1.14 | 33.62 | 6 | 2.67 | 1 | 2.67 | 8.01 | 12.7 | 17.49 | 254 |
| Bull | 1X1/0+1/0 | 53.5 | 19 | 9.2 | 1.52 | 53.51 | 6 | 3.37 | 1 | 3.37 | 10.11 | 19.5 | 22.35 | 408 |
| TRIPLEX | ||||||||||||||
| Voluta | 2X6+6 | 13.3 | 7 | 4.66 | 1.14 | 13.3 | 6 | 1.68 | 1 | 1.68 | 5.04 | 5.3 | 13.58 | 166 |
| Periwinkle | 2X4+4 | 21.1 | 7 | 5.7 | 1.14 | 21.15 | 6 | 2.12 | 1 | 2.12 | 6.36 | 8.3 | 16.03 | 248 |
| Conch | 2X2+6 | 33.6 | 7 | 7.2 | 1.14 | 13.3 | 6 | 2.67 | 1 | 2.67 | 8.01 | 12.7 | 19.36 | 377 |
| Neritina | 2X1/0+1/0 | 53.5 | 7 | 9.2 | 1.52 | 53.51 | 6 | 3.37 | 1 | 3.34 | 10.02 | 19.5 | 24.77 | 607 |
| Triton | 2X2/0+2/0 | 67.4 | 19 | 10.3 | 1.52 | 67.44 | 6 | 3.78 | 1 | 3.78 | 11.34 | 23.6 | 27.3 | 751 |
| Mursia | 2X3/0+3/0 | 85 | 19 | 11.6 | 1.52 | 85.03 | 6 | 4.25 | 1 | 4.25 | 12.75 | 29.4 | 30.18 | 931 |
| Zuzara | 2X4/0+4/0 | 107.2 | 19 | 13 | 1.52 | 107.22 | 6 | 4.77 | 1 | 4.77 | 14.31 | 37.1 | 33.31 | 1156 |
| Limpet | 2X336.4+336.4 | 170.4 | 19 | 16.56 | 2.03 | 170.46 | 18 | 3.47 | 1 | 3.47 | 17.35 | 38.6 | 42.07 | 1704 |
| Strombus | 2X4+6 | 21.1 | 7 | 5.7 | 1.14 | 13.3 | 6 | 1.68 | 1 | 1.68 | 5.04 | 5.3 | 15.08 | 216 |
| Cockle | 2X2+4 | 33.6 | 7 | 7.2 | 1.14 | 21.15 | 6 | 2.12 | 1 | 2.12 | 6.36 | 8.3 | 18.18 | 327 |
| Janthina | 2X1/0+2 | 53.5 | 7 | 9.2 | 1.52 | 33.62 | 6 | 2.67 | 1 | 2.67 | 8.01 | 12.7 | 23.33 | 527 |
| Ranella | 2X1/0+2 | 53.5 | 19 | 9.2 | 1.52 | 33.62 | 6 | 2.67 | 1 | 2.67 | 8.01 | 12.7 | 23.33 | 527 |
| Clio | 2X2/0+1 | 67.4 | 19 | 10.3 | 1.52 | 42.41 | 6 | 3 | 1 | 3 | 9 | 15.8 | 25.62 | 649 |
| Aega | 2X3/0+1/0 | 85 | 19 | 11.6 | 1.52 | 53.51 | 6 | 3.37 | 1 | 3.37 | 10.11 | 19.5 | 28.28 | 803 |
| Cerapus | 2X4/0+2/0 | 107.2 | 19 | 13 | 1.52 | 67.44 | 6 | 3.78 | 1 | 3.78 | 11.34 | 23.6 | 31.18 | 994 |
| Cowry | 2X336.4+4/0 | 170.4 | 19 | 16.59 | 2.03 | 107.22 | 6 | 4.77 | 1 | 4.77 | 14.31 | 37.1 | 39.93 | 1597 |
| QUADRUPLEX | ||||||||||||||
| Chola | 3X6+6 | 13.3 | 7 | 4.66 | 1.14 | 13.3 | 6 | 1.68 | 1 | 1.68 | 5.04 | 5.3 | 15.61 | 222 |
| Hackney | 3X4+4 | 21.1 | 7 | 5.7 | 1.14 | 21.15 | 6 | 2.12 | 1 | 2.12 | 6.36 | 8.3 | 18.29 | 329 |
| Pallomino | 3X2+2 | 33.6 | 7 | 7.2 | 1.14 | 33.62 | 6 | 2.67 | 1 | 2.67 | 8.01 | 12.7 | 22 | 497 |
| Costena | 3X1/0+1/0 | 53.5 | 19 | 9.2 | 1.52 | 53.51 | 6 | 3.37 | 1 | 3.37 | 10.11 | 19.5 | 28.26 | 802 |
| Grullo | 3X2/0+2/0 | 67.4 | 19 | 10.3 | 1.52 | 67.44 | 6 | 3.78 | 1 | 3.78 | 11.34 | 23.6 | 31 | 987 |
| Suffolk | 3X3/0+3/0 | 85 | 19 | 11.6 | 1.52 | 85.03 | 6 | 4.25 | 1 | 4.25 | 12.75 | 29.4 | 34.2 | 1222 |
| Appaloosa | 3X4/0+4/0 | 107.2 | 19 | 13 | 1.52 | 107.22 | 6 | 4.77 | 1 | 4.77 | 14.31 | 37.1 | 37.68 | 1513 |
| Gelding | 3X336.4+4/0 | 170.4 | 19 | 16.56 | 2.03 | 107.22 | 6 | 4.77 | 1 | 4.77 | 14.31 | 37.1 | 45.97 | 2174 |
