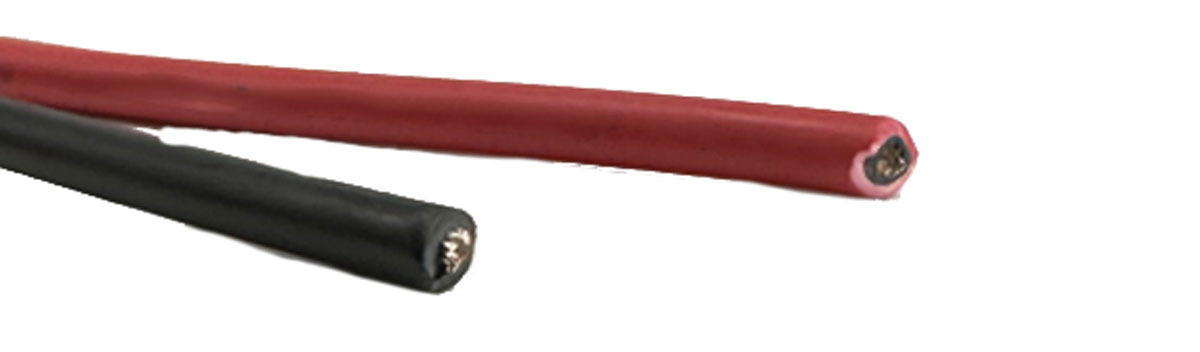

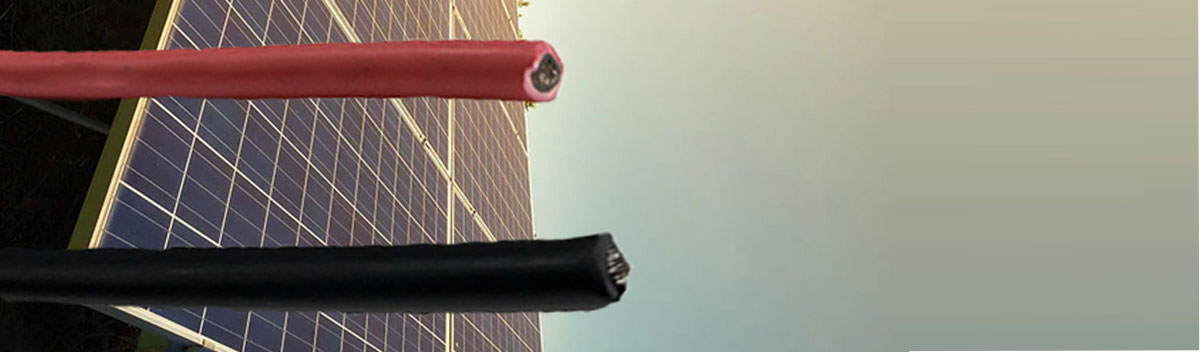

EN 50618 H1Z2Z2-K solar cable. 1.5kV DC. TÜV certified. -40°C to +120°C. Double-insulated, halogen-free LSHF. UV/ozone resistant.
Application
EN 50618 H1Z2Z2-K / IEC 62930 / UL 4703 photovoltaic cable for renewable energy systems. Rated 1.5kV DC (max 1.8kV). Suitable for solar panel array connections (panel to panel), string connections, inverter connections, and DC combiner boxes. Tinned copper conductor, XLPE insulation, halogen-free crosslinked sheath (LSHF) for low smoke zero halogen. UV resistant, ozone resistant, high temperature 90°C (conductor 120°C), cold flexible -40°C. Direct burial, outdoor, indoor, extreme weather resistant. Double-insulated, flame retardant per EN 60332-1-2. TÜV certified. Meets EN 50618, IEC 62930, UL 4703. 1.5mm² to 240mm².
Core Strengths
Ordinary building wires degrade from PV system UV exposure and temperature cycling. Our EN 50618 H1Z2Z2-K solar cable withstands -40°C to 120°C, UV/ozone/abrasion, flame retardant (EN60332-1-2), double-insulated, halogen-free LSHF. TÜV certified, compliance EN 50618, IEC 62930, UL 4703. 1.5kV DC. Direct burial.
Standard
EN 50618, TÜV 2 PfG 1169/08.2007
Construction
Conductor: Fine-stranded tinned copper for flexibility and corrosion resistance
Insulation: Electron-beam cross-linked polyethylene (XLPE)
Sheath: UV-resistant, halogen-free cross-linked polymer
Features
Rated voltage: 1.0/1.0kV (DC) or 0.6/1kV (AC) per EN 50618
Temperature range: -40°C to +90°C (continuous), up to 120°C for short-term exposure
UV and ozone resistant for long-term outdoor exposure in solar farms
Halogen-free, flame-retardant, and RoHS compliant
Highly flexible with small bending radius, easy for rapid installation
Excellent resistance to heat, moisture, abrasion, and chemicals commonly encountered in photovoltaic systems
Long service life (up to 25+ years as required by major PV system standards)
Product Parameter
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT | TENSILE STRENGTH IN OPERATION |
| mm2 | mm | kg/km | N | |
| 1 | 1.5 | 4.6 | 36 | 22 |
| 1 | 2.5 | 5.0 | 46 | 37 |
| 1 | 4 | 5.6 | 62 | 60 |
| 1 | 6 | 6.1 | 82 | 90 |
| 1 | 10 | 7.1 | 125 | 150 |
| 1 | 16 | 8.5 | 190 | 240 |
| 1 | 25 | 10.4 | 285 | 375 |
| 1 | 35 | 11.5 | 385 | 525 |
| 1 | 50 | 13.7 | 540 | 750 |
| 1 | 70 | 15.8 | 740 | 1050 |
| 1 | 95 | 17.3 | 965 | 1350 |
| 1 | 120 | 19.1 | 1210 | 1800 |
| 1 | 150 | 21.4 | 1495 | 2250 |
| 1 | 185 | 24.9 | 1885 | 2775 |
| 1 | 240 | 27.3 | 2395 | 3600 |
