ICEA tree wire with track-resistant covering. Prevents outages from branch contact. Reduces vegetation maintenance cost.
Application
Tree wire to ICEA S-61-402 / ICEA S-121-733 for primary and secondary overhead distribution in wooded areas where trees may contact lines. Single-layer track-resistant HDPE/XLPE or dual-layer covering prevents direct shorts and flashovers. AAC/AAAC/ACSR conductors. Rated up to 35kV.
Core Strengths
Wooded distribution corridors demand frequent tree-trimming maintenance. Our ICEA S-61-402 tree wire's track-resistant covering withstands conductor contact with branches, preventing outages and reducing vegetation operation cost. ICEA S-121-733. CE/TÜV. Factory direct.
Standard
ASTM B230,ASTM B231,ASTM B232
ASTM B398,ASTM B399,ASTM B400

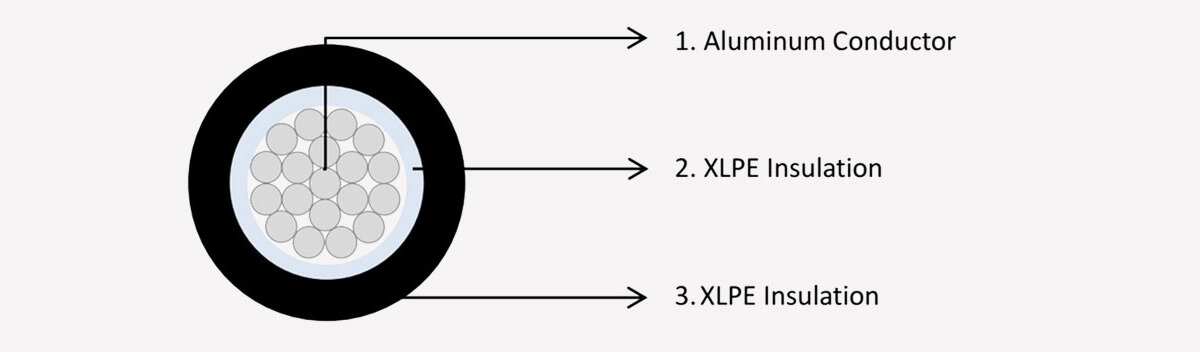

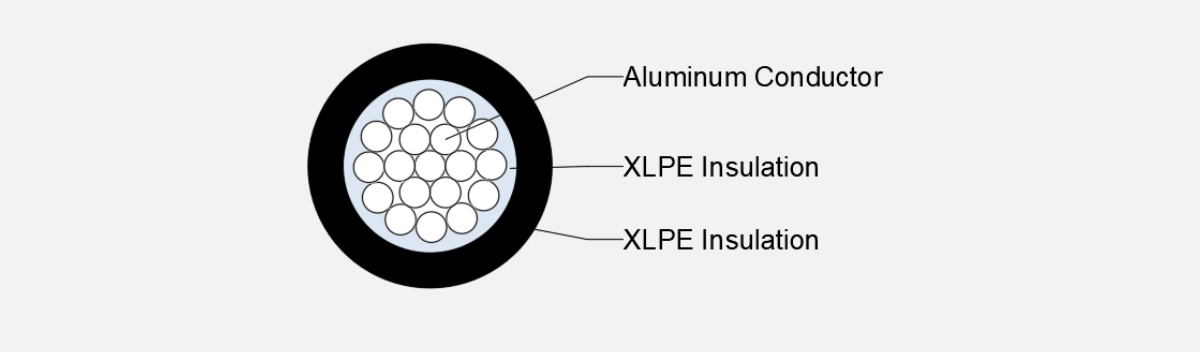

Construction
☉〉 Conductor: Aluminum
☉〉 Insulation: XLPE (single or double layer, per ICEA S-61-402)
☉〉 Standard: Complies with ICEA S-61-402
Features
☉〉 Rated voltage: 600V
☉〉 Thick, rugged XLPE insulation resists damage from tree contact
☉〉 Weather-resistant and UV-stable for outdoor overhead use
☉〉 Reduces fault currents caused by vegetation or wind-swing
☉〉 Lightweight and easy to install compared to bare conductors
Product Data Sheet
| 15KV-2Layer-ACSR Core | |||||||
| Size | Stranding No. | Conductor dia. | Insulation thickness | Outer sheath thickness | Approx. Cable. Dia. | Approx. Cable Weight | Rated strength |
| AWG/kcmil | No.s | mm | mm | mm | mm | kg/km | KN |
| 4 | 6/1 | 6.35 | 1.9 | 1.9 | 14 | 202 | 7.9 |
| 2 | 6/1 | 8.03 | 1.9 | 1.9 | 15.6 | 274 | 12 |
| 1/0 | 6/1 | 10.11 | 1.9 | 1.9 | 17.7 | 379 | 18.5 |
| 2/0 | 6/1 | 11.35 | 1.9 | 1.9 | 19 | 451 | 22.4 |
| 3/0 | 6/1 | 12.75 | 1.9 | 1.9 | 20.4 | 539 | 28 |
| 4/0 | 6/1 | 14.3 | 1.9 | 1.9 | 21.9 | 643 | 35.3 |
| 266.8 | 18/1 | 15.47 | 1.9 | 1.9 | 23.1 | 656 | 29.1 |
| 266.8 | 26/7 | 16.31 | 1.9 | 1.9 | 23.9 | 673 | 47.7 |
| 336.4 | 26/7 | 18.29 | 1.9 | 1.9 | 25.9 | 826 | 59.5 |
| 336.4 | 30/7 | 18.82 | 1.9 | 1.9 | 26.4 | 924 | 73.1 |
| 397.5 | 24/7 | 19.61 | 1.9 | 1.9 | 27.2 | 906 | 61.7 |
| 397.5 | 26/7 | 19.89 | 1.9 | 1.9 | 27.5 | 960 | 68.8 |
| 477 | 26/7 | 21.79 | 1.9 | 1.9 | 29.4 | 1134 | 82.3 |
| 477 | 30/7 | 22.43 | 1.9 | 1.9 | 30 | 1271 | 100.5 |
| 556.5 | 24/7 | 23.22 | 1.9 | 1.9 | 30.8 | 1232 | 83.6 |
| 556.5 | 26/7 | 23.55 | 1.9 | 1.9 | 31.2 | 1307 | 95.4 |
| 636 | 24/7 | 24.82 | 1.9 | 1.9 | 32.4 | 1393 | 92.9 |
| 636 | 26/7 | 25.15 | 1.9 | 1.9 | 32.8 | 1478 | 106.4 |
| 795 | 26/7 | 28.14 | 2 | 1.9 | 36.3 | 1836 | 133 |
| 795 | 45/7 | 27 | 2 | 2 | 35.1 | 1534 | 93.3 |
| 15KV-2Layer-AAC Core | |||||||
| Size | Stranding No. | Conductor dia. | Insulation thickness | Outer sheath thickness | Approx. Cable. Dia. | Approx. Cable Weight | Rated strength |
| AWG/kcmil | No.s | mm | mm | mm | mm | kg/km | KN |
| 1/0 | 7 | 8.53 | 1.9 | 1.9 | 16.2 | 292 | 8 |
| 2/0 | 7 | 9.55 | 1.9 | 1.9 | 17.2 | 342 | 10 |
| 3/0 | 7 | 10.74 | 1.9 | 1.9 | 18.4 | 405 | 12.2 |
| 4/0 | 7 | 12.07 | 1.9 | 1.9 | 19.7 | 484 | 15.3 |
| 266.8 | 19 | 13.64 | 1.9 | 1.9 | 21.3 | 576 | 19.9 |
| 336.4 | 19 | 15.32 | 1.9 | 1.9 | 22.9 | 693 | 24.6 |
| 397.5 | 19 | 16.74 | 1.9 | 1.9 | 24.4 | 796 | 28.4 |
| 477 | 19 | 18.34 | 1.9 | 1.9 | 26 | 927 | 33.4 |
| 556.5 | 37 | 19.81 | 1.9 | 1.9 | 27.4 | 1054 | 39.8 |
| 636 | 37 | 21.21 | 1.9 | 1.9 | 28.8 | 1182 | 45.6 |
| 15KV-3Layer-AAAC Core | ||||||||
| Size | Stranding No. | Conductor dia. | Conductor Shield Thickness | Insulation thickness | Outer sheath thickness | Approx. Cable. Dia. | Approx. Cable Weight | Rated strength |
| AWG/kcmil | No.s | mm | mils | mm | mm | mm | kg/km | KN |
| 4 | 7 | 6.35 | 0.4 | 1.9 | 1.9 | 14.7 | 204 | 7 |
| 2 | 7 | 8.03 | 0.4 | 1.9 | 1.9 | 16.4 | 266 | 11.2 |
| 1/0 | 7 | 10.11 | 0.4 | 1.9 | 1.9 | 18.5 | 359 | 17.8 |
| 2/0 | 7 | 11.35 | 0.4 | 1.9 | 1.9 | 19.7 | 421 | 21.6 |
| 3/0 | 7 | 12.75 | 0.4 | 1.9 | 1.9 | 21.1 | 497 | 27.2 |
| 4/0 | 7 | 14.3 | 0.4 | 1.9 | 1.9 | 22.7 | 591 | 34.2 |
| 266.8 | 19 | 16.31 | 0.4 | 1.9 | 1.9 | 24.7 | 704 | 44 |
| 336.4 | 19 | 18.29 | 0.4 | 1.9 | 1.9 | 26.7 | 845 | 53.2 |
| 397.5 | 19 | 19.89 | 0.4 | 1.9 | 1.9 | 28.3 | 966 | 62.4 |
| 477 | 19 | 21.79 | 0.4 | 1.9 | 1.9 | 30.2 | 1124 | 75.2 |
| 556.5 | 19 | 23.55 | 0.5 | 1.9 | 1.9 | 32.2 | 1330 | 87.6 |
| 636 | 37 | 25.15 | 0.5 | 1.9 | 1.9 | 33.8 | 1433 | 97.6 |
