U1000 RO2V CABLE
Application
LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.
Standard
IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc

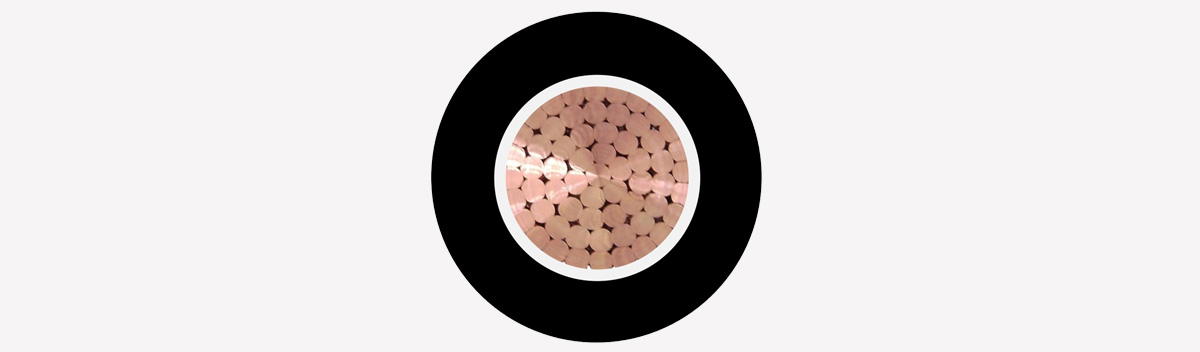

Construction
Conductor: Cu/Al (Solid/Stranded)
Insulation: XLPE/PVC/PE/LSHF
Inner sheath (applicable if there is armor layer): PVC/PE
Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape
Outer sheath : PVC/PE/LSHF
Features
| U1000 RO2V CABLE | |||||||||
| Cable Size | Cable dia. | Cable weight | |||||||
| None-armored | Steel tape armored | Steel wire armored | None-armored | Steel tape armored | Steel wire armored | ||||
| CU | AL | CU | AL | CU | AL | ||||
| mm2 | mm | kg/km | |||||||
| 1.5 | 6 | 10.8 | 11.6 | 52 | 43 | 155 | 145 | 167 | 157 |
| 2.5 | 6.5 | 11.3 | 12.1 | 66 | 50 | 175 | 159 | 189 | 173 |
| 4 | 7.4 | 12.2 | 13 | 91 | 66 | 211 | 187 | 225 | 200 |
| 6 | 8 | 12.8 | 13.6 | 115 | 78 | 243 | 206 | 258 | 221 |
| 10 | 8.9 | 13.7 | 14.5 | 160 | 99 | 300 | 238 | 316 | 255 |
| 16 | 9.9 | 14.7 | 15.5 | 224 | 126 | 377 | 279 | 395 | 297 |
| 25 | 11.3 | 16.1 | 16.9 | 322 | 171 | 493 | 341 | 512 | 361 |
| 35 | 12.3 | 17.1 | 18.4 | 418 | 209 | 601 | 392 | 647 | 438 |
| 50 | 13.9 | 18.7 | 20 | 567 | 273 | 771 | 477 | 822 | 528 |
| 70 | 15.6 | 20.4 | 21.7 | 760 | 347 | 985 | 573 | 1041 | 629 |
| 95 | 18 | 22.6 | 24.6 | 1031 | 463 | 1277 | 708 | 1387 | 818 |
| 120 | 19.4 | 24 | 26 | 1267 | 548 | 1530 | 811 | 1650 | 931 |
| 150 | 21.4 | 25.8 | 27.8 | 1557 | 671 | 1832 | 947 | 1960 | 1074 |
| 185 | 23.8 | 28 | 30.2 | 1938 | 830 | 2229 | 1121 | 2381 | 1273 |
| 240 | 26.8 | 31 | 33 | 2515 | 1061 | 2840 | 1385 | 2998 | 1544 |
| 300 | 29.6 | 33.8 | 36.8 | 3130 | 1305 | 3486 | 1662 | 3760 | 1935 |
| 400 | 33.1 | 37.7 | 40.7 | 3988 | 1637 | 4423 | 2072 | 4734 | 2383 |
| 500 | 36.7 | 41.3 | 44.3 | 5030 | 2035 | 5509 | 2514 | 5849 | 2854 |
| 630 | 40.5 | 45.1 | 49.1 | 6385 | 2517 | 6912 | 3044 | 7434 | 3566 |
