110KV AWA Armored Power Cable

Details
Images
Related Product
Inquiry

Application

IEC 60840 110kV single-core AWA cable for coastal power plants, offshore transmission, corrosive industrial zones, refinery/chemical plants, and marine projects requiring non-magnetic armor and resistance to saltwater/chemicals. Installation: direct burial, ducts, submarine.

Core Strengths

Magnetic armor on 110kV single cores induces harmful currents. Our non-magnetic AWA eliminates losses while resisting corrosion. Ideal for coastal and chemical zones. CE/TÜV/ISO certified.

Standard

GB11017， IEC60840

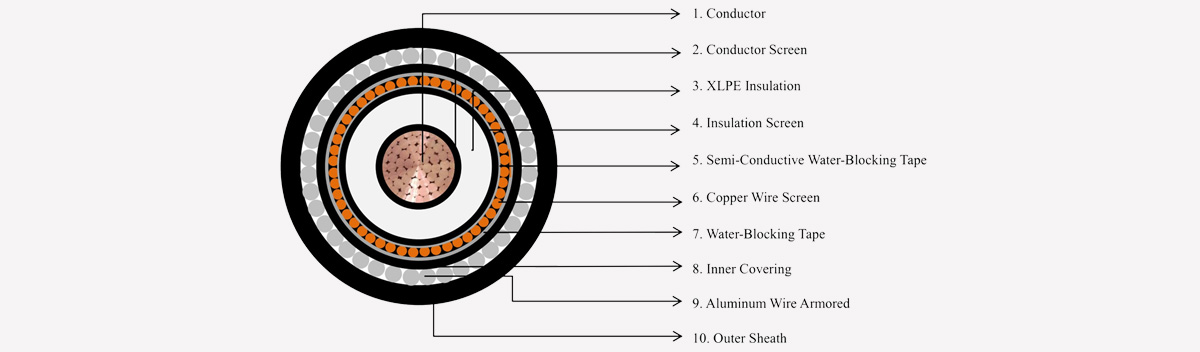

Construction

Conductor: Stranded copper (class 2)

Conductor screen: Semiconductive layer

Insulation: XLPE

Insulation screen: Semiconductive layer

Semi-conductive water-blocking tape

Copper wire screen

Water-blocking tape

Inner covering: PVC or PE

Armor: Aluminum wire (AWA – non‑magnetic)

Outer sheath: HDPE or PVC

Features

Rated voltage: 110kV (HV transmission)

XLPE insulation – 90°C continuous, 250°C short‑circuit

Non‑magnetic aluminum wire armor – eliminates eddy current losses; lightweight, corrosion‑resistant

Copper wire screen – uniform field distribution, corona suppression, fault return path

Dual water‑blocking tapes – prevent longitudinal moisture ingress

Ideal for coastal plants, offshore transmission, corrosive industrial zones

Installation: direct burial, ducts, submarine (with protection)

100% factory tested to IEC 60840

Product Data Sheet

110KV AWA Armored Power Cable
Rated voltage	Conductor size	Approx. Conductor dia.	XLPE Insulation thickness	Electric Capacity	Inductance		Loss of insulation	Max. D.C. Resistance
Rated voltage	Conductor size	Approx. Conductor dia.	XLPE Insulation thickness	Electric Capacity	Parallel laying	Trefoil laying	Loss of insulation	Cu	Al
KV	mm2	mm	mm	pf/m	mh/km	mh/km	w/m	Ω/km
110	240	18.4	19	136	0.757	0.508	0.175	0.0754	0.125
	300	20.6	18.5	147	0.734	0.489	0.19	0.0601	0.1
	400	23.5	17.5	165	0.708	0.465	0.212	0.047	0.0778
	500	26.6	17	182	0.683	0.445	0.234	0.0336	0.0605
	630	30.25	16.5	201	0.657	0.424	0.259	0.0283	0.0469
	800	34.23	16	224	0.633	0.406	0.288	0.0221	0.0367
	1000	41.4	16	265	0.594	0.386	0.341	0.0176	0.0291
	1200	45.28	16	282	0.577	0.375	0.363	0.0151	0.0247
