1-30KV armoured power cable
Application
The product is used in power transmission and distribution line at Voltage up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.
Standard
IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C 68.5, ICEA S 93-639 , ICEA S 94-649

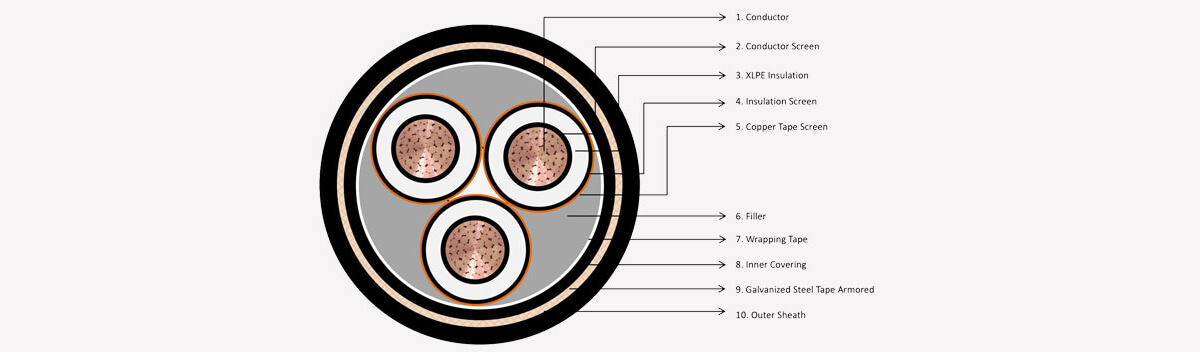

Construction
Conductor, XLPE Insulation, Cu Tape/Copper Wire Metallic Screen , Tape/ Wire Armor(Optional), PVC /PE Outer Jacket
Features
Product Data Sheet
| 1-30KV armoured power cable | |||||
| Conductor Size | Stranding No. | Conductor Dia. | Max. D.C. resistance at 20℃ | ||
| （Compacted Round) | |||||
| Cu | Al | Cu | Al | ||
| mm2 | No.s | No.s | mm | Ω/KM | Ω/KM |
| 25 | ≥6 | ≥6 | 5.6-6.5 | 0.727 | 1.2 |
| 35 | ≥6 | ≥6 | 6.6-7.5 | 0.524 | 0.868 |
| 50 | ≥6 | ≥6 | 7.7-8.6 | 0.387 | 0.641 |
| 70 | ≥12 | ≥12 | 9.3-10.2 | 0.268 | 0.443 |
| 95 | ≥15 | ≥15 | 11.0-12.0 | 0.193 | 0.32 |
| 120 | ≥18 | ≥15 | 12.3-13.5 | 0.153 | 0.253 |
| 150 | ≥18 | ≥15 | 13.7-15.0 | 0.124 | 0.206 |
| 185 | ≥30 | ≥30 | 15.3-16.8 | 0.0991 | 0.164 |
| 240 | ≥34 | ≥30 | 17.6-19.2 | 0.0754 | 0.125 |
| 300 | ≥34 | ≥30 | 19.7-21.6 | 0.0601 | 0.1 |
| 400 | ≥53 | ≥53 | 22.3-24.6 | 0.047 | 0.0778 |
| 500 | ≥53 | ≥53 | 25.3-27.6 | 0.0368 | 0.0605 |
| 630 | ≥53 | ≥53 | 28.7-32.5 | 0.0283 | 0.0469 |
| 800 | ≥53 | ≥53 | -- | 0.0221 | 0.0367 |
| 1000 | ≥53 | ≥53 | -- | 0.0176 | 0.0291 |
| Insulation, Metal Screen, Armor Dimension | |||||
| Rated Voltage | XLPE/TRXLPE Insulation Nominal thickness | Metal Screen | Armor Dimension | ||
| Copper Tape | Copper Wire | Tape | Wire | ||
| KV | No.s | mm | mm | mm | mm |
| 3.6/6 | 2.5-3.2 | 0.06-0.12 | Dia. Min. 0.9mm , Wire No. according to Screen Size | 0.2-0.5mm | 0.8-5.0mm |
| 43261.00 | 3.4 | 0.06-0.12 | 0.2-0.5mm | 0.8-5.0mm | |
| 8.7/15 | 4.5 | 0.06-0.12 | 0.2-0.5mm | 0.8-5.0mm | |
| 43454.00 | 5.5 | 0.06-0.12 | 0.2-0.5mm | 0.8-5.0mm | |
| 18/30 | 8 | 0.06-0.12 | 0.2-0.5mm | 0.8-5.0mm | |
