1-35KV SINGLE CORE ATA ARMORED CABLE
Application
The product is used in power transmission and distribution line at Voltage Up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.
Standard
IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C 68.3, ICEA S 93-639 , ICEA S 94-649
Construction

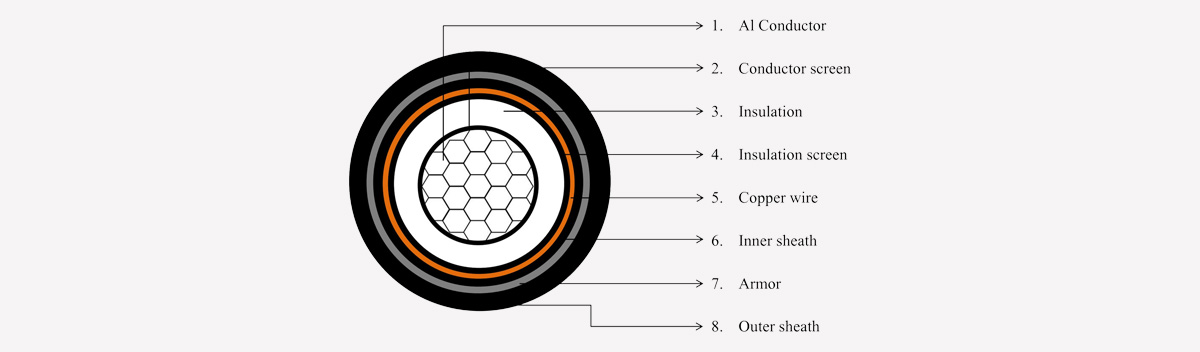

Al/Cu Conductor, XLPE Insulation, Cu Tape/Copper Wire Metallic Screen , Tape/ Wire Armor(Optional), PVC /PE Outer Jacket
Features
| 1-35KV SINGLE CORE ATA ARMORED CABLE | |||||
| Conductor Size | Stranding No. | Conductor Dia. | Max. D.C. resistance at 20℃ | ||
| （Compacted Round) | |||||
| Cu | Al | Cu | Al | ||
| mm2 | No.s | No.s | mm | Ω/KM | Ω/KM |
| 25 | ≥6 | ≥6 | 5.6-6.5 | 0.727 | 1.2 |
| 35 | ≥6 | ≥6 | 6.6-7.5 | 0.524 | 0.868 |
| 50 | ≥6 | ≥6 | 7.7-8.6 | 0.387 | 0.641 |
| 70 | ≥12 | ≥12 | 9.3-10.2 | 0.268 | 0.443 |
| 95 | ≥15 | ≥15 | 11.0-12.0 | 0.193 | 0.32 |
| 120 | ≥18 | ≥15 | 12.3-13.5 | 0.153 | 0.253 |
| 150 | ≥18 | ≥15 | 13.7-15.0 | 0.124 | 0.206 |
| 185 | ≥30 | ≥30 | 15.3-16.8 | 0.0991 | 0.164 |
| 240 | ≥34 | ≥30 | 17.6-19.2 | 0.0754 | 0.125 |
| 300 | ≥34 | ≥30 | 19.7-21.6 | 0.0601 | 0.1 |
| 400 | ≥53 | ≥53 | 22.3-24.6 | 0.047 | 0.0778 |
| 500 | ≥53 | ≥53 | 25.3-27.6 | 0.0368 | 0.0605 |
| 630 | ≥53 | ≥53 | 28.7-32.5 | 0.0283 | 0.0469 |
| 800 | ≥53 | ≥53 | -- | 0.0221 | 0.0367 |
| 1000 | ≥53 | ≥53 | -- | 0.0176 | 0.0291 |
