A strange phenomenon often occurs on industrial sites: the variable frequency drive (VFD) runs perfectly, but the motor burns out shortly after being replaced. The cable isn't damaged, and the load isn't overloaded. The culprit is often the cable length. A VFD doesn't output a standard 50Hz sine wave; it outputs high-frequency pulses. When the cable exceeds a certain length, these pulses "reflect" at the motor end, creating fatal voltage spikes.
Quick Summary (At a Glance):
l < 20 meters: Standard 600V VFD cable is usually sufficient.
l 20–50 meters: We strongly recommend 1000V or 2000V rated VFD cable.
l > 50 meters: Must use 2000V VFD cable or install an output filter.
l Rule of thumb: Never use standard power cables for VFD applications.
(From our export experience: many industrial clients using 600V cables for runs over 50m face premature motor failures. The downtime cost far exceeds the cable price difference.)
The Physics Made Simple:
Think of VFD pulses as water flowing through a pipe. When the water reaches the end of the pipe (the motor) and hits a blockage (high impedance), it bounces back. The incoming wave and the reflected wave overlap, causing the pressure (voltage) to double.
The Quantitative Consequence:
In a 400V VFD system, the DC bus voltage is roughly 540V. At the end of a long cable, the reflected peak voltage can surge to 1100V or even higher.
Who Bears the Brunt?
The enamel insulation of the motor windings. Standard motors are not designed to withstand continuous pulse voltages twice their rated value. The insulation is repeatedly struck by these high-voltage spikes, leading to inevitable breakdown and burnout.
The length limit isn't arbitrary; it's dictated by the VFD's switching speed. While exact limits vary, 30 meters is a widely accepted tipping point.

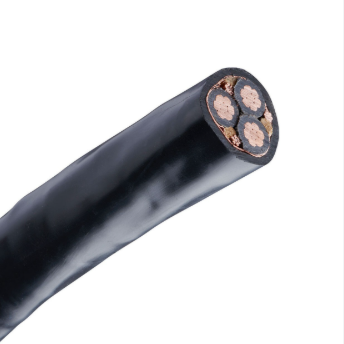

To prevent this, you must ensure the VFD cable has three hard specifications:
1.Voltage Rating: Standard 600V is only for short runs (<20m). For 30-50m runs, 1000V (common in IEC systems) or 2000V (common in UL/NEC systems) is required.
2.Shielding Structure: A dual-layer shield (aluminum foil + copper braid) with high coverage (usually ≥85%) is mandatory to prevent the high-frequency pulses from radiating and interfering with nearby equipment.
3.Insulation Material: XLPE (cross-linked polyethylene) is far superior to PVC for VFD applications. PVC degrades rapidly under high-frequency pulse stress, while XLPE offers the dielectric strength needed to survive repeated voltage spikes.
Procurement Action: Do not just write "VFD Cable" in your spec sheet. Specify the length: "VFD cable for XX meters, requiring 2000V pulse withstand voltage and XLPE insulation."
If your distance exceeds 50 meters, you have three options. You must calculate the total cost, not just the cable price:
Solution | How It Works | Cost Implications | Best For |
A: Upgrade to 2000V Cable | Use higher insulation levels to withstand reflected spikes | Moderate (cable premium) | Runs between 30m and 100m |
B: Install dV/dt Filter | Slows the pulse rise time, preventing extreme reflections | High (hardware + labor) | Runs > 100m or when cable upgrade is insufficient |
C: Reroute | Physically move the VFD closer to the motor | Varies (construction cost) | When layout permits |
Never choose "do nothing" or substitute with standard power cables. A burnt motor costs significantly more than any of the above solutions.
Q1: How long can a VFD cable be before problems occur?
Generally, keep it under 50 meters. Below 20m, 600V is fine. Above 30m, upgrade to 1000V or 2000V. Beyond 50m, you must use 2000V cable or a filter.
Q2: What happens if you use too long of a VFD cable?
Voltage reflection doubles the peak voltage at the motor terminals, causing the motor winding insulation to break down and the motor to burn out.
Q3: Do I need a 2000V VFD cable for long runs?
Yes. For runs exceeding 30-50 meters, 2000V insulation (or 1000V in some IEC regions) is required to resist reflected voltage spikes.
Q4: Can I use a standard power cable for a VFD?
Absolutely not. Standard power cables lack the high-frequency insulation and dual-layer shielding required by VFDs, leading to severe EMI and motor damage.
Q5: How do I know if my VFD cable length is causing motor overvoltage?
Use an oscilloscope to measure the phase-to-phase voltage at the motor terminals. If the peak voltage is significantly higher than the DC bus voltage, reflection is occurring.
Q6: What is the alternative to running long VFD cables?
Besides upgrading to 2000V cable, you can install a dV/dt filter or output reactor at the VFD output to suppress the reflected waves.
Q7: Does cable length affect VFD performance?
Yes. Besides damaging the motor, long cables increase line voltage drop and capacitive effects, affecting control signal stability.
