AAAC 6201-T81 aluminum-magnesium alloy conductor. Superior strength-to-weight ratio, excellent sag characteristics. Corrosion resistant.
Application
ASTM B399 all-aluminum alloy conductor (AAAC) for overhead transmission and distribution lines near ocean coastlines, across basins/rivers/valleys, and in corrosive environments where steel in ACSR poses corrosion issues. 6201-T81 high-strength aluminum-magnesium alloy, concentric-lay-stranded.
Core Strengths
Coastal transmission lines require conductors resistant to salt corrosion. Our AAAC uses 6201-T81 aluminum-magnesium alloy to eliminate ACSR's steel core corrosion. Superior strength-to-weight ratio, excellent sag characteristics. Lower power losses than single-layer ACSR.
Standard
IEC61089,ASTM B-399,BS3242,NFC34125

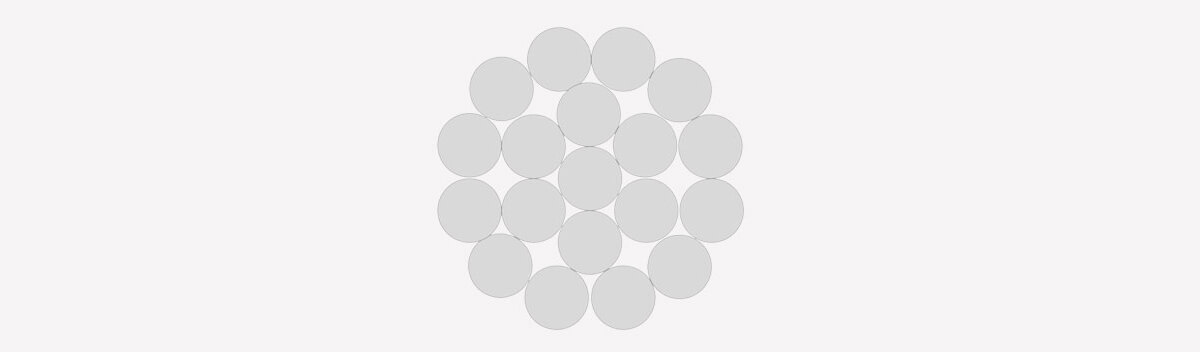

Construction
☉〉 AA-6101 aluminium alloy,Concentrically stranded
☉〉 Max. Size 2500MCM, Max. str. No. 91Wires
Features
☉〉 High conductivity (≈52.5% IACS)
☉〉 Excellent mechanical strength (higher than AAC, similar to ACSR)
☉〉 Superior corrosion resistance (better than ACSR, no galvanic issues)
☉〉 Lightweight with high strength-to-weight ratio
☉〉 Suitable for long-span overhead transmission and distribution
Product Data Sheet
| AAAC-IEC61089 | ||||||
| Cross-section Area | Stranding No. & Wire No.s | Approx. Overall Dia. | Approx. Weight | Rated strength | Max. D.C. resistance at 20℃ | |
| mm2 | No.s | mm | mm | Kg/km | kN | Ω/km |
| 28.8 | 7 | 2.29 | 6.87 | 78.7 | 8.49 | 1.1453 |
| 46 | 7 | 2.89 | 8.67 | 125.9 | 13.58 | 0.7158 |
| 115 | 19 | 2.78 | 13.9 | 316.3 | 33.95 | 0.2877 |
| 460 | 37 | 3.98 | 27.86 | 1268.4 | 135.81 | 0.0721 |
| 1036 | 91 | 3.81 | 41.91 | 2861.1 | 305.58 | 0.0321 |
| 1439 | 91 | 4.49 | 49.39 | 3973.7 | 424.41 | 0.0231 |
| AAAC-ASTM B399 | ||||||||
| Code Name | Conductor size | Stranding No. & Wire No.s | Approx. Overall Dia. | Approx. Weight | Rated strength | Max. D.C. resistance at 20℃ | ||
| AWG (MCM) | mm2 | No.s | mm | mm | Kg/km | Kn | Ω/km | |
| Alton | 48.69(4) | 24.67 | 7 | 2.12 | 6.36 | 68 | 7.8 | 1.586 |
| Azusa | 123.3(1/0) | 62.46 | 7 | 3.37 | 10.11 | 172 | 19.8 | 0.5365 |
| Alliance | 246.9 (4/0) | 125.1 | 7 | 4.77 | 14.31 | 345 | 38.1 | 0.2678 |
| Butte | 312.8 | 158.5 | 19 | 3.26 | 16.3 | 437 | 48.8 | 0.2112 |
| Canton | 394.5 | 199 | 19 | 3.66 | 18.3 | 551 | 59 | 0.1676 |
| 450 | 228 | 19 | 3.91 | 19.55 | 629 | 67.2 | 0.1468 | |
| AAAC-BS3242 | ||||||||
| Code Name | Nominal Cross-section Area | Calculated Cross-section Area | Stranding No. & Wire No.s | Approx. Overall Dia. | Approx. Weight | Rated Strength | D.C. Resistance at 20°C | |
| mm2 | mm2 | No.s | mm | mm | Kg/km | Kn | Ω/km | |
| Hazel | 50 | 59.87 | 7 | 3.3 | 9.9 | 165 | 16.8 | 0.5498 |
| 70 | 84.05 | 7 | 3.91 | 11.73 | 232 | 23.5 | 0.3917 | |
| Ash | 150 | 180.7 | 19 | 3.48 | 17.4 | 498 | 50.6 | 0.1831 |
| Upas | 300 | 362.1 | 37 | 3.53 | 24.71 | 998 | 101.4 | 0.09156 |
| Walnut | 350 | 421.8 | 37 | 3.81 | 26.67 | 1163 | 118.1 | 0.0786 |
| Araucaria | 700 | 821.1 | 61 | 4.14 | 37.26 | 2264 | 229.8 | 0.04047 |
| AAAC-NFC34125 | ||||||
| Code | Cross-section Area | Stranding No | Single wire dia. | Approx. overall dia. | Approx. weight | Rated tensile strength |
| mm2 | No.s | mm | mm | kg/km | KN | |
| 55 | 54.6 | 7 | 3.15 | 9.45 | 149 | 17.75 |
| 153 | 152.8 | 19 | 3.2 | 16 | 417 | 49.66 |
| 323 | 312.6 | 37 | 3.28 | 22.96 | 853 | 101.6 |
| 475 | 475.4 | 61 | 3.15 | 28.35 | 1296 | 154.51 |
| 621 | 620.9 | 61 | 3.6 | 32.4 | 1693 | 201.79 |
| 926 | 926.3 | 91 | 3.6 | 32.4 | 2526 | 301.05 |
