Solid or Stranded or Flexible Bare Copper
Application
Solid and stranded (classes AA and A) bare copper are suitable for overhead transmission and distribution applications. Stranded conductor of greater flexibility (classes B and C) are suitable for un-insulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.
Standard
ASTM B1 , ASTM B2, ASTM B3, ASTM B8
Construction

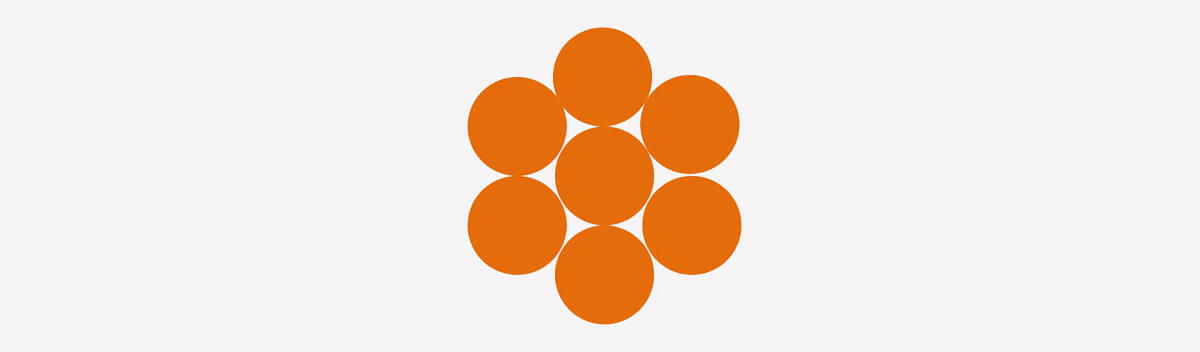

Concentrically stranded
Max. Size 4000MCM, Max. str. No. 127
Features
High-conductivity,high-strength or High-Flexibility
Product Data Sheet
| Product Data Sheet-BCC | |||||||||||
| Size | Stranding wire | Weight | Hard Drawn | Medium-Hard Drawn | Soft-Drawn (Annealed) | Ampacity | |||||
| Str. No. | Wire dia. | Overall dia. | Rated Strength | Max.DC Resistance | Rated Strength | Max.DC Resistance | Rated Strength | Max.DC Resistance | |||
| AWG | No.s | mm | mm | kg/km | KN | Ω/km | KN | Ω/km | KN | Ω/km | |
| 3 | 7 | 2.2 | 6.6 | 242 | 10.82 | 0.6857 | 8.38 | 0.6821 | 7.42 | 0.6594 | 200 |
| 2 | 7 | 2.47 | 7.41 | 305 | 13.56 | 0.5446 | 10.49 | 0.5413 | 9.38 | 0.5177 | 230 |
| 1 | 7 | 2.78 | 8.34 | 385 | 16.9 | 0.4318 | 13.14 | 0.4295 | 11.34 | 0.4108 | 265 |
| 1/0 | 7 | 3.12 | 9.36 | 485 | 21.12 | 0.3419 | 16.47 | 0.3402 | 14.32 | 0.3287 | 310 |
| 2/0 | 19 | 2.13 | 10.65 | 611 | 29.74 | 0.2712 | 21.18 | 0.2698 | 17.89 | 0.2608 | 355 |
| 3/0 | 19 | 2.39 | 11.95 | 771 | 32.74 | 0.2151 | 25.84 | 0.214 | 22.75 | 0.2068 | 410 |
| 4/0 | 19 | 2.68 | 13.4 | 972 | 42.75 | 0.1706 | 33.25 | 0.1697 | 28.69 | 0.164 | 480 |
| 250 | 37 | 2.09 | 14.63 | 1152 | 51.57 | 0.1444 | 39.79 | 0.1436 | 35.3 | 0.1388 | 530 |
| 300 | 37 | 2.29 | 16.03 | 1378 | 60.06 | 0.1203 | 46.81 | 0.1197 | 40.72 | 0.1157 | 590 |
| 350 | 37 | 2.47 | 17.29 | 1605 | 69.3 | 0.1031 | 54.23 | 0.1026 | 47.48 | 0.0991 | 650 |
| 400 | 37 | 2.64 | 18.48 | 1841 | 79.48 | 0.0899 | 62.2 | 0.0895 | 54.45 | 0.0864 | 708 |
| 500 | 37 | 2.95 | 20.65 | 2294 | 100.06 | 0.0722 | 78.01 | 0.0718 | 67.75 | 0.0694 | 810 |
| 600 | 37 | 3.23 | 22.61 | 2757 | 120.11 | 0.0602 | 93.62 | 0.0599 | 81.35 | 0.0578 | 910 |
| 700 | 37 | 3.5 | 24.5 | 3219 | 140.26 | 0.0515 | 109.32 | 0.0513 | 95 | 0.0495 | 1003 |
| 800 | 61 | 2.91 | 26.19 | 3672 | 161.51 | 0.0452 | 125.6 | 0.0449 | 108.45 | 0.0434 | 1082 |
| 900 | 61 | 3.09 | 27.81 | 4135 | 181.85 | 0.0401 | 141.41 | 0.0399 | 122.1 | 0.0385 | 1166 |
| 1000 | 61 | 3.25 | 29.25 | 4597 | 200.17 | 0.0361 | 156.03 | 0.0359 | 135.58 | 0.0347 | 1240 |
