Copper Clad Aluminium Wire ( CCA )

Copper-clad aluminum wire (10-15% copper). 60-70% IACS of pure copper. 60% lighter. Reliable soldering.

Details
Images
Related Product
Inquiry

Application

Copper-clad aluminum wire for high-frequency coaxial/RF applications (RF antennas, CATV distribution cables), voice coils in speakers/headphones, control signal cables, and lightweight building wiring where weight reduction is critical. Aluminum core with 10-15% copper cladding. 60-70% IACS conductivity of pure copper.

Core Strengths

High-frequency coaxial cables need lighter weight without sacrificing signal integrity. Our CCA delivers the skin effect advantages of copper with the weight savings of aluminum (≈60% lighter). 10-15% copper cladding ensures reliable soldering. Cost-effective for CATV and RF applications.

Standard

GB/T29197, ASTM B 566

Construction

☉〉 Core: Aluminum (EC grade)

☉〉 Cladding: Copper metallurgically bonded to aluminum core

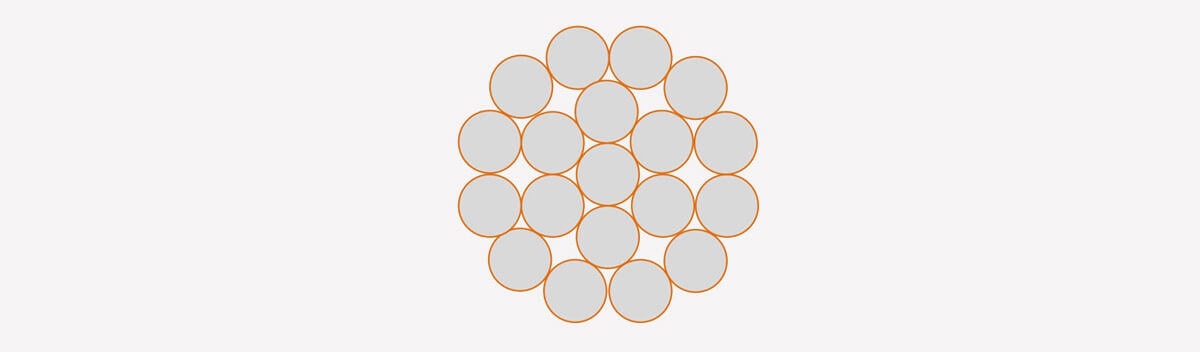

☉〉 Types: Solid, stranded, or flexible

Features

☉〉 Lighter than solid copper (about 1/3 the weight)

☉〉 Lower cost than pure copper with acceptable conductivity (≈65% IACS typical)

☉〉 Good corrosion resistance from copper outer layer

☉〉 Suitable for coaxial cables, audio wires, and power transmission where weight reduction is needed

Product Data Sheet

Product Data Sheet-CCA
Nominal Diameter	Tensile Strength		Elongation % in 250mm
	Minimum All	Maximum All	All H Classes	All A Classes
	H Classes	A Classes
mm	(MPa)	(MPa)
0.08-0.12	205	172	1	5
0.121-0.36	207	172	1	5
0.361-0.574	207	172	1	10
0.575-0.642	207	138	1	10
0.643-2.05	207	138	1	15
2.06-2.3	200	138	1	15
2.31-2.59	193	138	1	15
2.6-2.91	186	138	1	15
2.92-3.26	179	138	1	15
3.27-3.67	172	138	1	15
3.68-4.12	166	138	1.5	15
4.13-4.52	159	138	1.5	15
4.63-5.19	152	138	1.5	15
5.2-5.83	138	138	1.5	15
5.84-6.54	124	138	1.5	15
6.55-8.25	110	138	1.5	15
